Version 6.2 73 February 2011
SIP User's Manual 3. Web-Based Management
3.3.1.6.6 SNMP Settings
The SNMP submenu includes the following items:
îš„ SNMP Community Settings (see ''Configuring SNMP Community Strings'' on page 73)
îš„ SNMP Tra
p Destinations (see ''Configuring SNMP Trap Destinations'' on page 74)
îš„ SNMP Tru
sted Managers (see ''Configuring SNMP Trusted Managers'' on page 75)
îš„ SNMP V3 Users
(see ''Configuring SNMP V3 Users'' on page 76)
3.3.1.6.6.1 Configuring SNMP Community Strings
The 'SNMP Community String' page allows you to configure up to five read-only and up to
five read-write SNMP community strings, and to configure the community string that is
used for sending traps. For detailed information on SNMP community strings, refer to the
Product Reference Manual. For detailed description on the SNMP parameters, see ''SNMP
Parameters'' on page 366.
¾ To configure the SNMP community strings:
1. Open the 'SNMP Community String' page (Maintenance tab > System menu >
Management submenu > SNMP submenu > SNMP Community String).

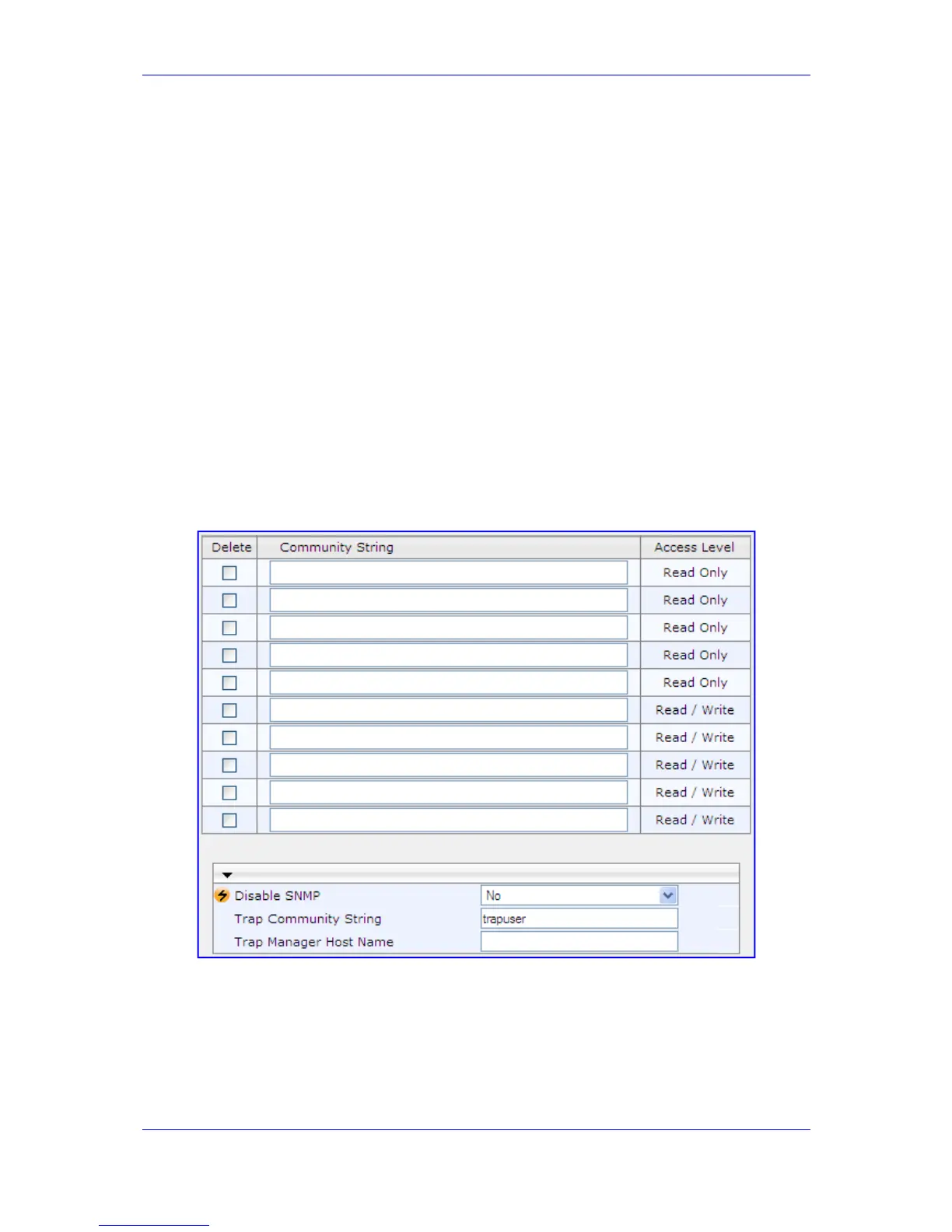

Figure 3-45: SNMP Community String Page
2. Configure the SNMP community strings parameters according to the table below.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 169.
To delete a community stri
ng, select the Delete check box corresponding to the community
string that you want to delete, and then click Submit.
