SIP User's Manual 3. Web-Based Management
3.3.2.8.2 Manipulation
The Manipulation Tables submenu allows you to configure number manipulation and
mapping of NPI/TON to SIP messages. This submenu includes the following items:
îš„ General Settings (see ''Configuring General Settings'' on page 129)
îš„ Manipul
ation tables (see ''Configuring Number Manipulation Tables'' on page 129):
• Dest Number IP->Tel
• Dest Number Tel->IP
• Source Number IP->Tel
• Source Number Tel->IP
îš„ Redirect Number Tel->IP (see ''Configuring Redirect Number Tel to IP'' on page 133)
îš„ Phone Conte
xt (see ''Mapping NPI/TON to SIP Phone-Context'' on page 135)
3.3.2.8.2.1 Configuring General Settings
The 'General Settings' page allows you to configure general manipulation parameters. For
a description of the parameters appearing on this page, see ''Configuration Parameters
Reference'' on page 333.
¾ To configure the general manipulation parameters:
1. Open the 'General Settings' page (Configuration tab > VoIP menu > GW and IP to
IP submenu > Manipulations submenu >General Settings).

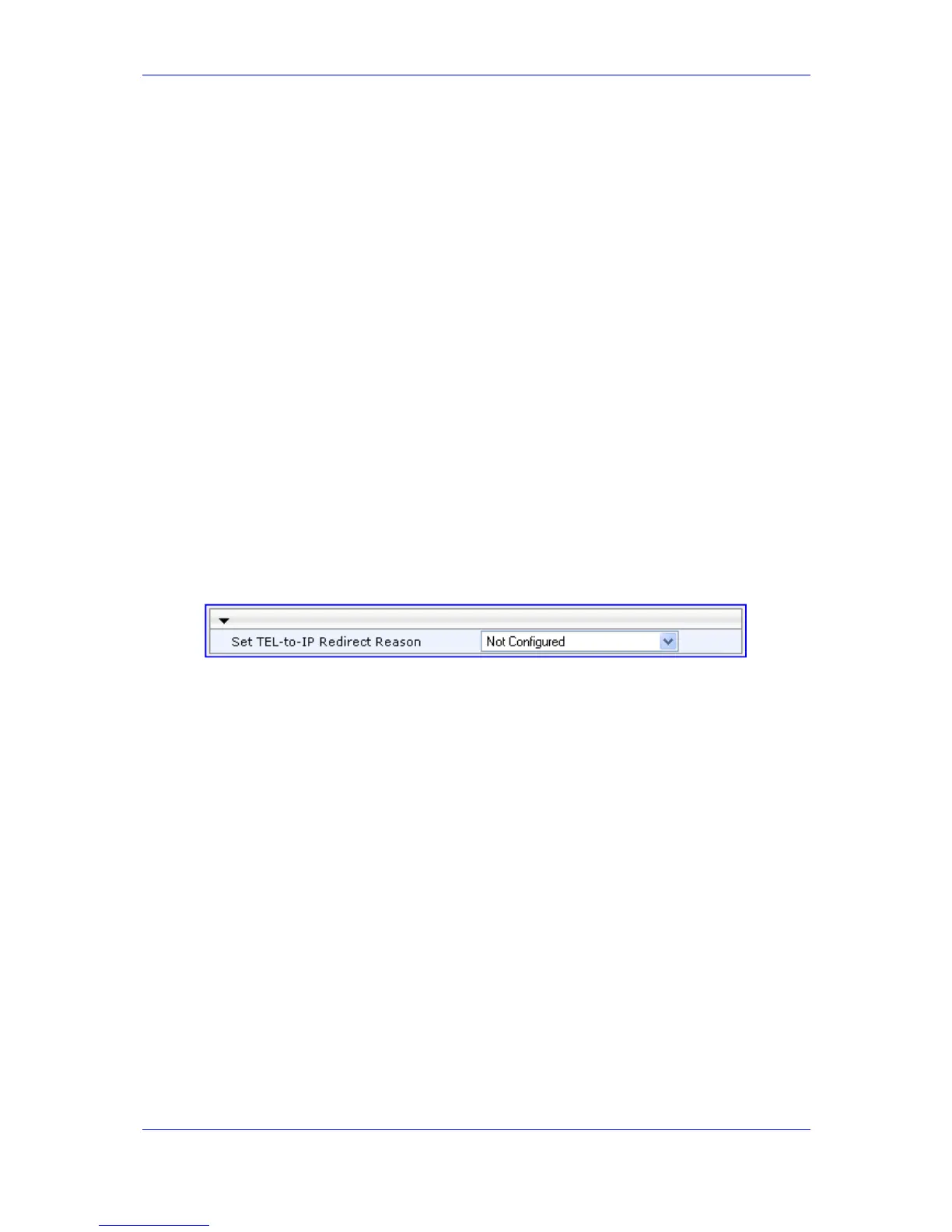

Figure 3-81: General Settings Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 169.
3.3.2.8.2.2 Configuring Number Manipulation Tables
The device provides number manipulation tables for incoming (IP-to-Tel) and outgoing
(Tel-to-IP) calls. These tables are used to modify the destination and/or source telephone
numbers so that the calls can be routed correctly. For example, telephone number
manipulation can be implemented by the following:
îš„ Stripping or adding dialing plan digits from or to the number, respectively. For
example, a user may need to first dial 9 before dialing the phone number to indicate
an external line. This number 9 can then be removed by number manipulation before
the call is setup.
îš„ Allowing or blocking Caller ID information according to destination or source prefixes.
For detailed information on Caller ID, see Configuring Caller Display Information on
page 155.
Numb
er manipulation is configured in the following tables:
îš„ Tel-to-IP calls:
• Destination Phone Number Manipulation Table for Tel-to-IP Calls
(NumberMapTel2IP ini file parameter) - up to 120 entries
• Source Phone Number Manipulation Table for Tel-to-IP Calls
(SourceNumberMapTel2IP ini file parameter) - up to 20 entries
