3.1.5 Navigation Tree
The Navigation tree, located in the Navigation pane, displays the menus (pertaining to the
menu tab selected on the Navigation bar) used for accessing the configuration pages. The
Navigation tree displays a tree-like structure of menus. You can easily drill-down to the
required page item level to open its corresponding page in the Work pane.
The terminology used throughout this manual for referring to the hierarchical structure of
the tree is as follows:
îš„ menu: first level (highest level)
îš„ submenu: second level - contained within a menu.
îš„ page item: last level (lowest level in a menu) - contained within a menu or submenu

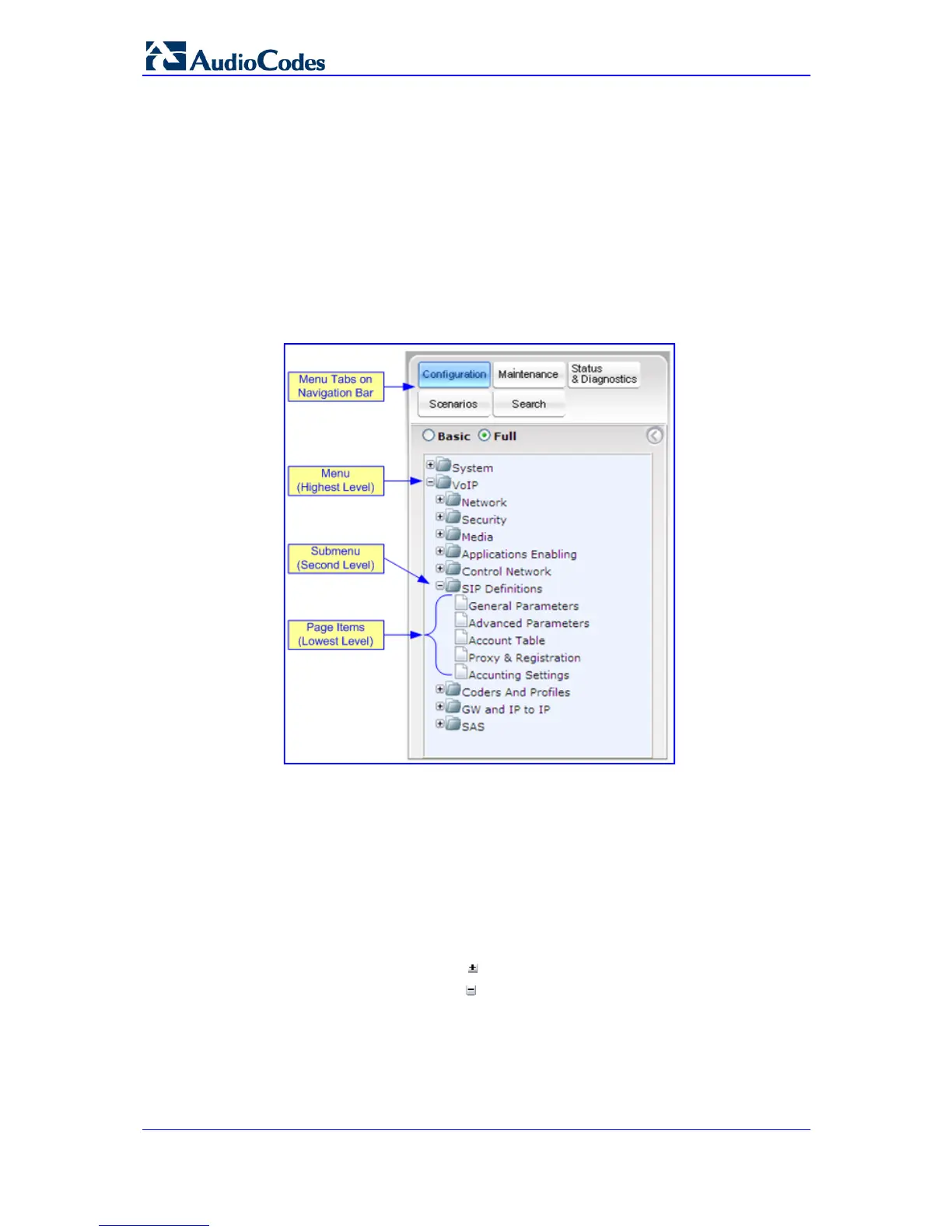

Figure 3-4: Navigation Tree
¾
To view menus in the Navigation tree:
îš„ On the Navigation bar, select the required tab:
• Configuration (see ''Configuration Tab'' on page 57)
• Ma
intenance (see ''Maintenance Tab'' on page 166)
• Statu
s & Diagnostics (see ''Status & Diagnostics Tab'' on page 180)
¾
To navigate to a page:
1. Navigate to the required page item, by performing the following:
• Drilling-down using the plus signs to expand the menus and submenus
• Drilling-up using the minus signs to collapse the menus and submenus
2. Select the required page item; the page opens in the Work pane.
