SIP User's Manual 238 Document #: LTRT-65415
MediaPack Series
8.2.4.2.2 FXO Operations for Tel-to-IP Calls
The FXO device provides the following FXO operating modes for Tel-to-IP calls:
îš„ Automatic Dialing (see ''Automatic Dialing'' on page 238)
îš„ Colle
cting Digits Mode (see ''Collecting Digits Mode'' on page 239)
îš„ FXO Supple
mentary Services (see ''FXO Supplementary Services'' on page 239)
• Hold/Trans
fer Toward the Tel side
• Hold/Transfer Toward the IP side
• Blind Transfer to the Tel side
8.2.4.2.2.1 Automatic Dialing
Automatic dialing is defined using the ini file parameter table TargetOfChannel (see Analog
Telephony Parameters) or the embedded Web server's 'Automatic Dialing' screen (see
''Automatic Dialing'' on page 154).
The SIP call flow diagram below illustrates Automatic Dialing.

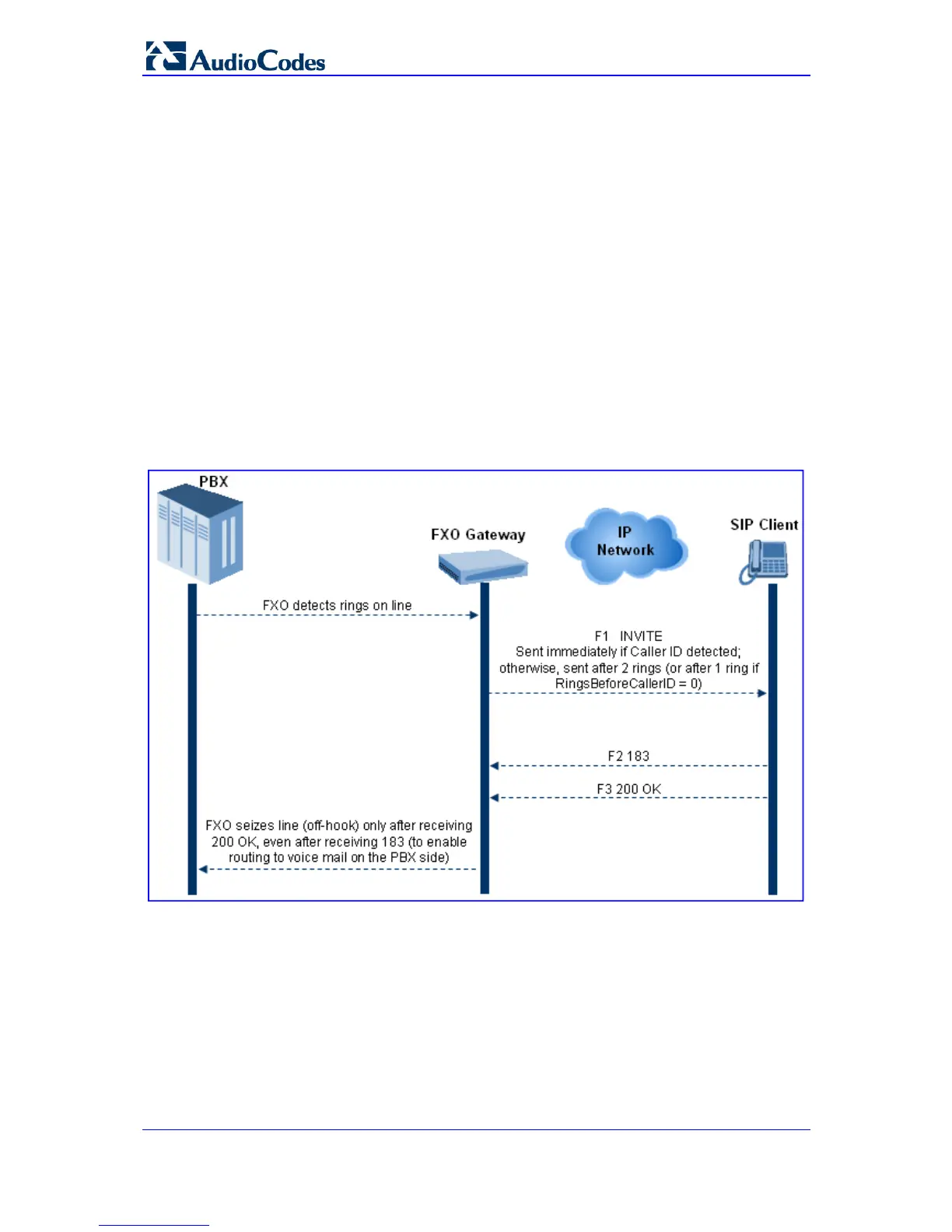

Figure 8-4: Call Flow for Automatic Dialing
To Next Page
