SIP User's Manual 42 Document #: LTRT-65415
MediaPack Series
3.1.8.1 Creating a Scenario
The Web interface allows you to create one Scenario with up to 20 configuration pages, as
described in the procedure below:
¾ To create a Scenario:
1. On the Navigation bar, click the Scenarios tab; a message box appears, requesting
you to confirm creation of a Scenario:

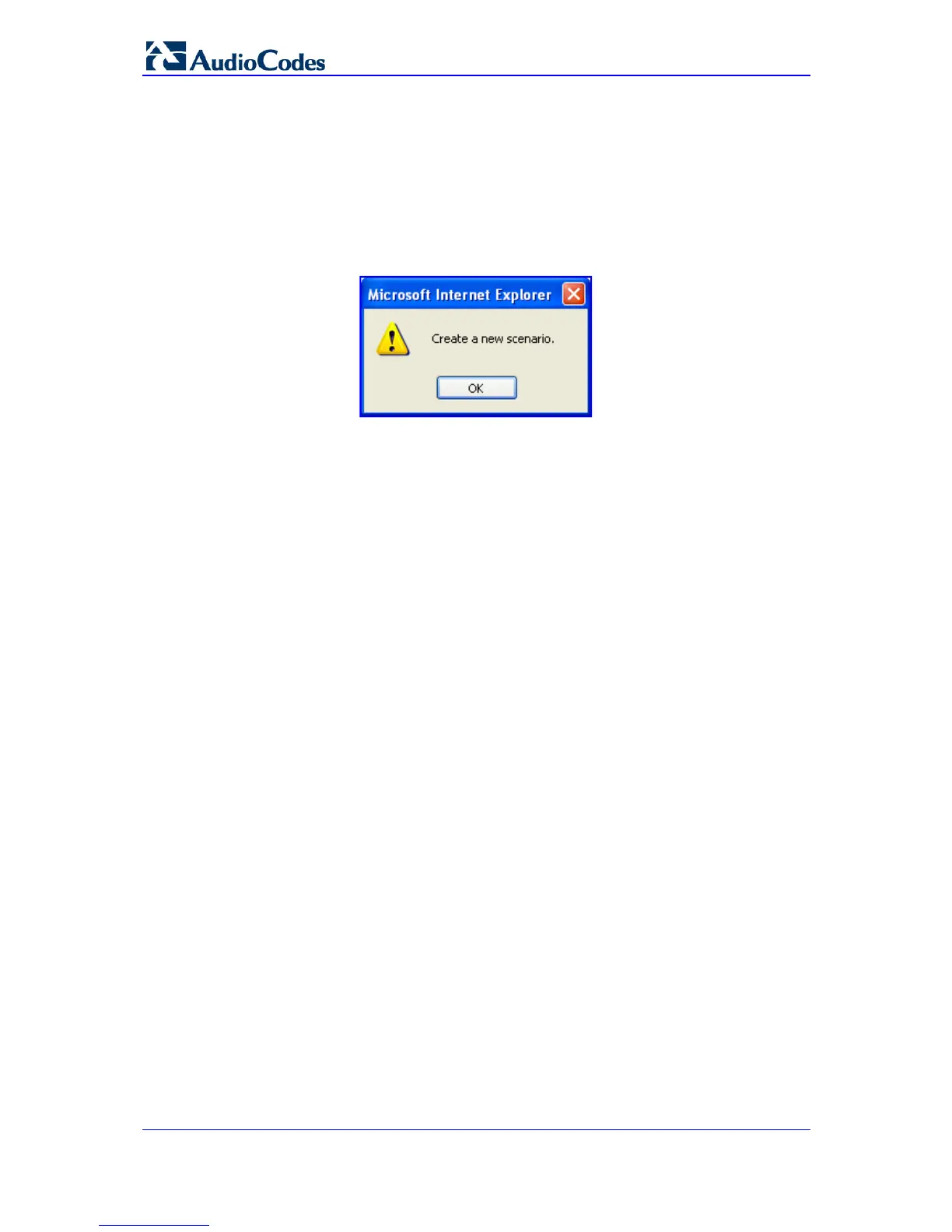

Figure 3-14: Scenario Creation Confirm Message Box
Note: If a Scenario already exists, the Scenario Loading message box appears.
2. Click OK; the Scenario mode appears in the Navigation tree as well as the menus of
the Configuration tab.
Note: If a Scenario already exists and you wish to create a new one, click the Create
Scenario button, and then click OK in the subsequent message box.
3. In the 'Scenario Name' field, enter an arbitrary name for the Scenario.
4. On the Navigation bar, click the Configuration or Maintenance tab to display their
respective menus in the Navigation tree.
5. In the Navigation tree, select the required page item for the Step, and then in the page
itself, select the required parameters by selecting the check boxes corresponding to
the parameters.
6. In the 'Step Name' field, enter a name for the Step.
