Version 6.2 53 February 2011
SIP User's Manual 3. Web-Based Management
3.2 Using the Home Page
The 'Home' page provides you with a graphical display of the device's front panel,
displaying color-coded status icons for monitoring the functioning of the device. The 'Home'
page also displays general device information (in the 'General Information' pane) such as
the device's IP address and firmware version.
By default, the 'Home' page is displayed when you access the device's Web interface.
¾
To access the Home page:
îš„ On the toolbar, click the Home icon; the 'Home' page is displayed.

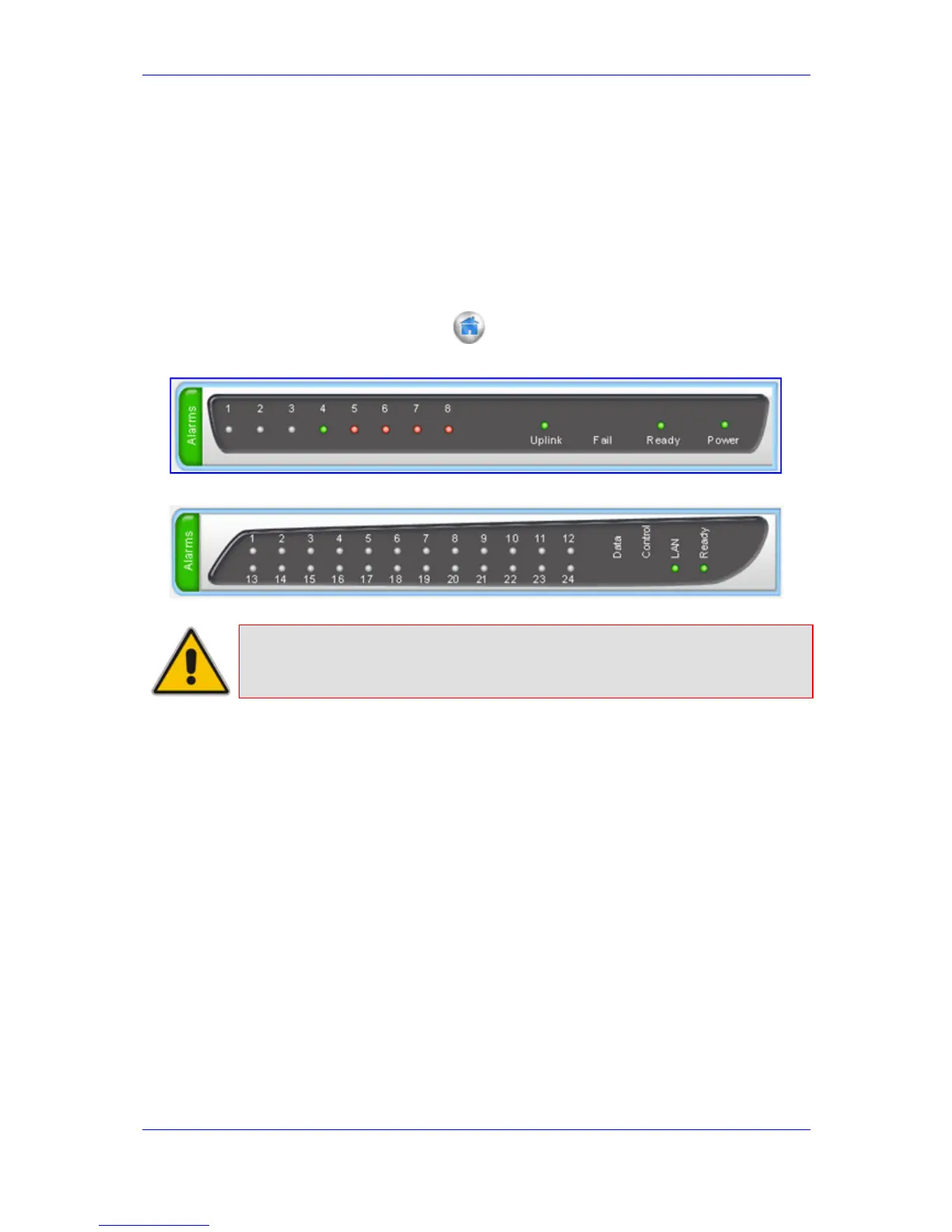

Figure 3-26: MP-11x Home Page
Figure 3-27: MP-124 Home Page
Note: The displayed number and type (FXO and/or FXS) of channels depends on
the device's model (e.g., MP-118 or MP-114).
In addition to the color-coded status information depicted on the graphical display of the
device (as described in the subsequent table), the Home page displays various read-only
information in the General Information pane:
îš„ IP Address: IP address of the device
îš„ Subnet Mask: subnet mask address of the device
îš„ Default Gateway Address: default gateway used by the device
îš„ Analog Port Number: number of analog (FXS and FXO) ports
îš„ Firmware Version: software version currently running on the device
îš„ Protocol Type: signaling protocol currently used by the device (i.e. SIP)
îš„ Gateway Operational State: operational state of the device:
• LOCKED - device is locked (i.e. no new calls are accepted)
• UNLOCKED - device is not locked
• SHUTTING DOWN - device is currently shutting down
To perform these operations, see ''Maintenance Actions'' on page 166.
