Version 6.2 117 February 2011
SIP User's Manual 3. Web-Based Management
3.3.2.6.5 Configuring Accounting Settings
The 'RADIUS Parameters' page allows you to configure the RADIUS parameters. For a
description of the parameters appearing on this page, see ''Configuration Parameters
Reference'' on page 333.
¾ To configure the RADIUS parameters:
1. Open the 'RADIUS Parameters' page (Configuration tab > VoIP menu > SIP
Definitions submenu > Accounting Settings).

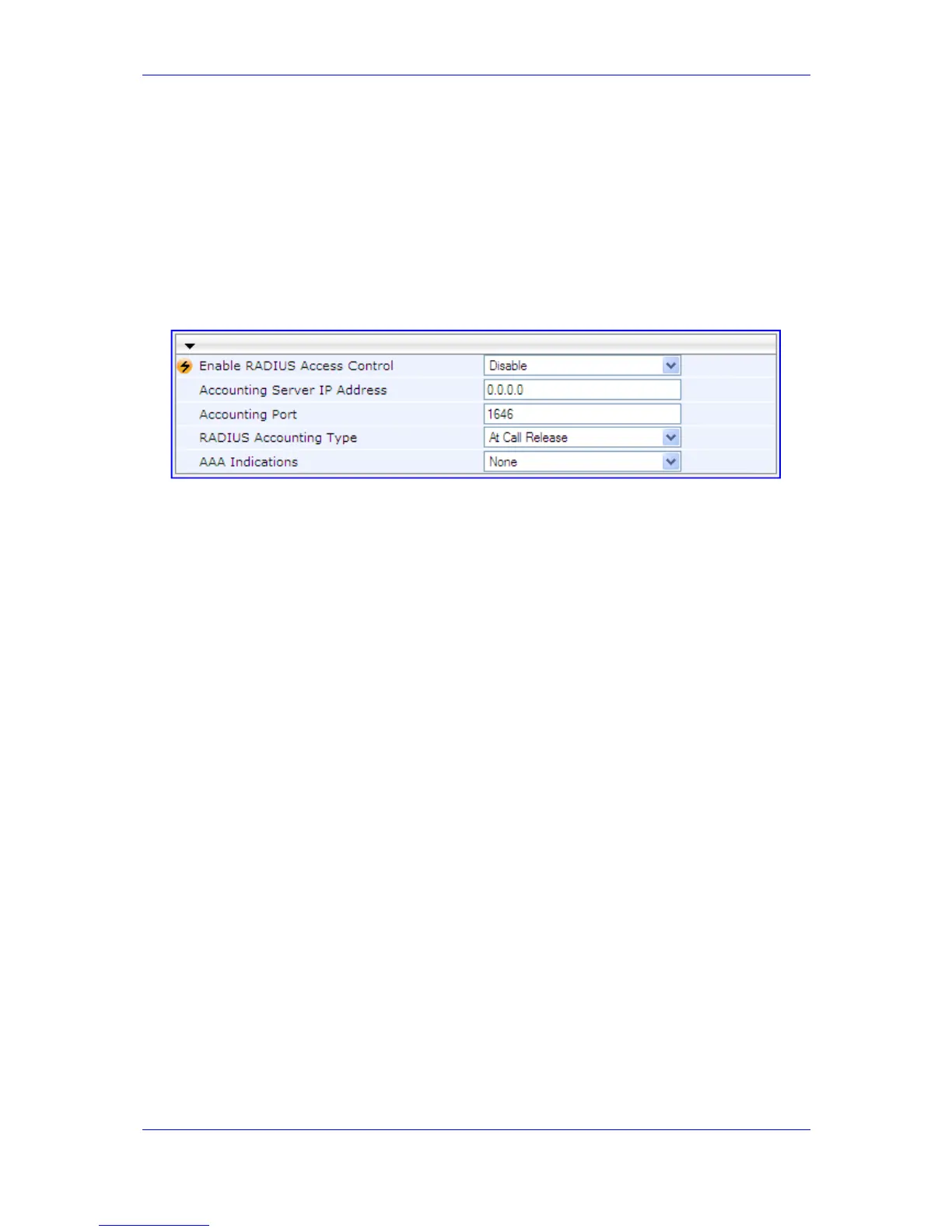

Figure 3-74: RADIUS Parameters Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 169.
3.3.2.7 Coders and Profiles
The Coders And Profile Definitions submenu includes the following page items:
îš„ Coders (see ''Configuring Coders'' on page 118)
îš„ Cod
ers Group Settings (see ''Configuring Coder Groups'' on page 119)
îš„ Tel Profile Se
ttings (see "Configuring Tel Profiles" on page 121)
îš„ IP Profile Sett
ings (see "Configuring IP Profiles" on page 122)
Implementin
g the device's Profile features provides the device with high-level adaptation
when connected to a variety of equipment (at both Tel and IP sides) and protocols, each of
which requires different system behavior. Each Profile contains a set of parameters such
as coders, T.38 Relay, Voice and DTMF Gain, Silence Suppression, Echo Canceler, RTP
DiffServ, Current Disconnect and more. The Profiles feature allows you to customize these
parameters or turn them on or off, per source or destination routing and/or per the device's
endpoints (channels). For example, specific ports can be assigned a Profile that always
uses G.711.
Each call can be associated with one or two Profiles - Tel Profile and/or IP Profile. If both
IP and Tel Profiles apply to the same call, the coders and other common parameters of the
preferred Profile (determined by the Preference option) are applied to that call. If the
Preference of the Tel and IP Profiles is identical, the Tel Profile parameters take
precedence.
You can assign different Profiles (behavior) per call, using the call routing tables:
îš„ 'Tel to IP Routing' page (see Configuring the Tel to IP Routing on page 138)
îš„ 'IP to Hunt Group Routing
Table' page (see Configuring the IP to Hunt Group Routing
Table on page 142)
