SIP User's Manual 326 Document #: LTRT-65415
MediaPack Series
9.7.2.2.4 Interface Column
This column defines the interface index (in the Multiple Interface table) from which the
gateway address is reached.

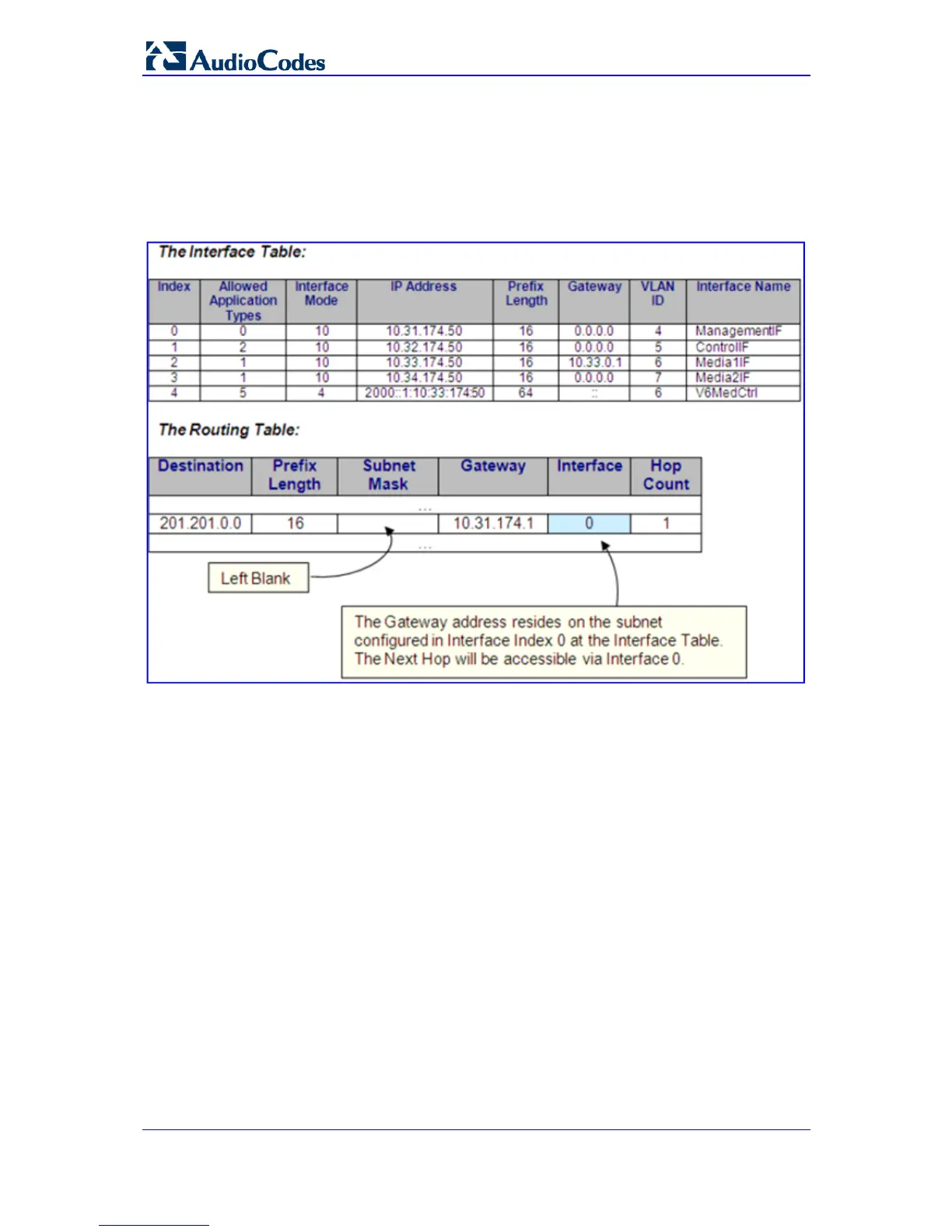

Figure 9-3: Interface Column
9.7.2.2.5 Metric Column
The Metric column must be set to 1 for each static routing rule.
9.7.2.2.6 State Column
The State column displays the state of each static route. Possible values are "Active" and
"Inactive". When the destination IP address is not on the same segment with the next hop
or the interface does not exist, the route state changes to "Inactive".
9.7.2.3 Routing Table Configuration Summary and Guidelines
The Routing table configurations must adhere to the following rules:
Up to 30 different static routing rules may be defined.
The Prefix Length replaces the dotted-decimal subnet mask presentation. This column
must have a value of 0-31 for IPv4 interfaces.
The "Gateway" IP Address must be on the same subnet as the IP address of the
interfaces configured in the Interface Index column.
The “Metric” column must be set to 1.
Network Configuration changes are offline. The new configuration should be saved
and will be available at the next startup.
