2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 75
2.3.1.4 Manual Tool Length Measurement
By moving a tool man
ually from the reference to measurement point, the travel distance from the reference
to measurement point can be measured and set as tool offset.

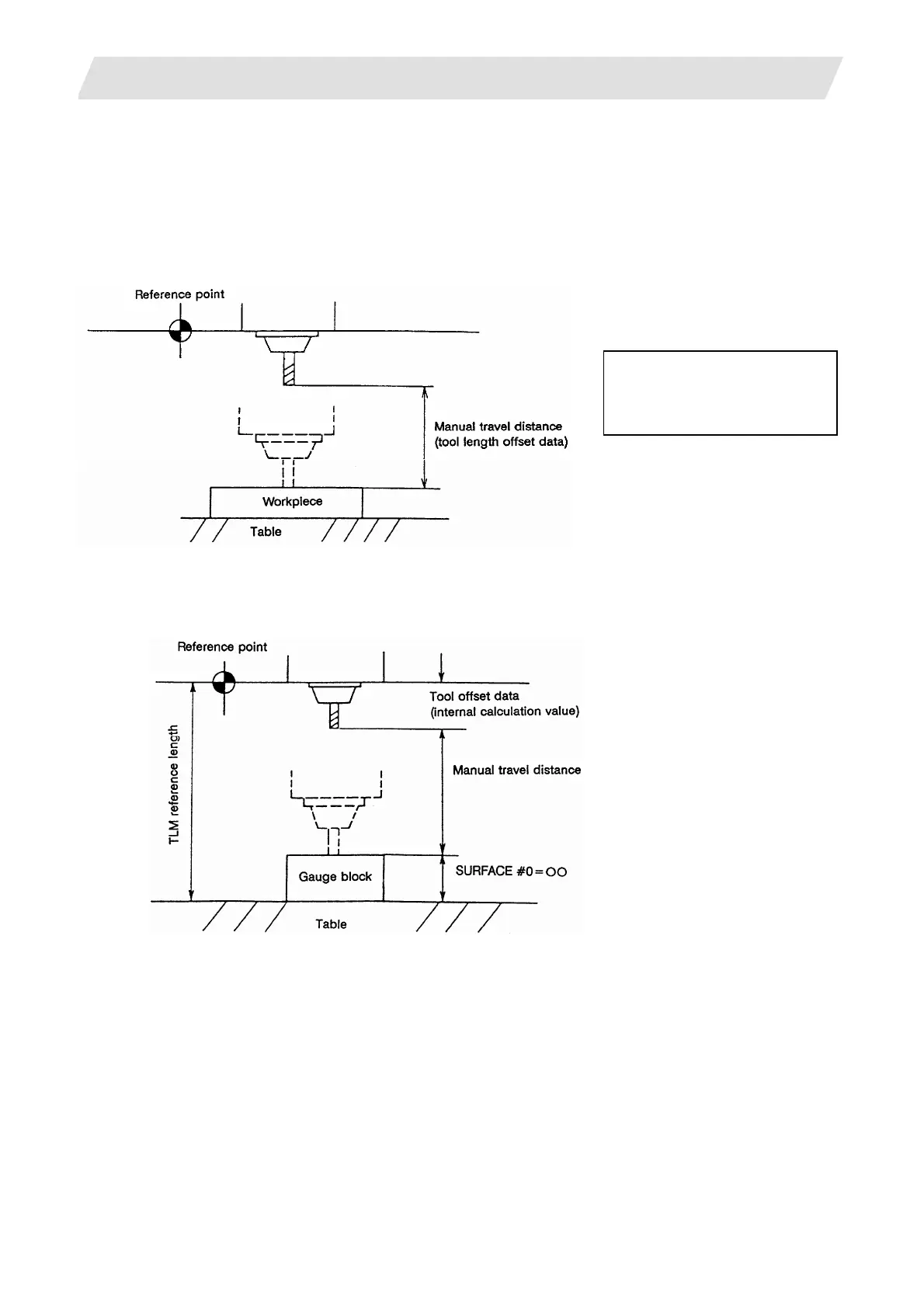

(1) Tool length measurement I
When the tool is placed in the reference point, the distance from the tool tip to measurement point
(work top end) can be measured and set as tool offset data.
(2) Tool length measurement II
When the tool is placed in the reference point, the distance from the reference point to tool tip can be
measured and set as tool offset data.
When TLM reference length
(#1102 tlm) = 0 and SURFACE
#0 = 0 are set, tool length
measurement I mode is set.
