2. CNC Monitor Screen

2.3(I) Tool Offset (L system)

(Refer to "2.3 (II). Tool Offset (M system)" for Machining center system)

I - 69

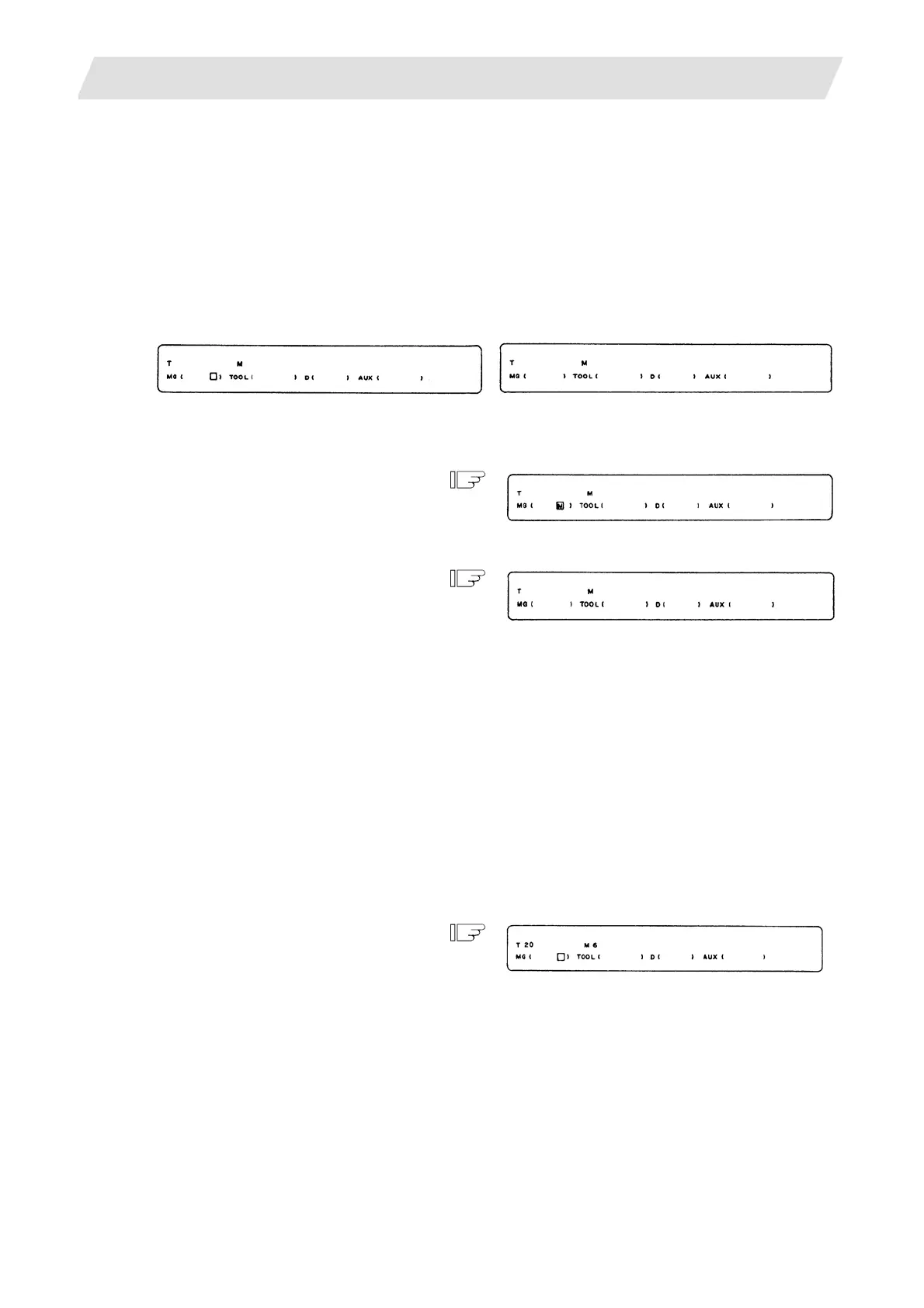

2.3.6.5 Manual Numerical Command Operation (M, T) on the TOOL RE

GISTRATION Screen

To carry out manual numerical commands on the TOOL REGISTRATION screen, the mode must first be

changed from the normal data setting mode to the manual numerical command mode. M and T commands

can be executed by screen operation in the manual numerical command mode.

(1) Changing from the normal data setting mode to the manual numerical command mode

A cursor appears in the data setting area in the normal data setting mode, but a cursor does not

appear in the manual numerical command mode.

Confirm that the mode has changed over by checking this difference.

The operation is as follows.

(a) Set "M" (manual) in the first set of

parentheses in the setting area.

This operation is the same for M or T

commands.

(b) Press the [INPUT] key. The mode

changes to the manual numerical

command mode.

The data in the setting area is cleared, and the

cursor disappears from the screen.

(2) Executing the manual numerical command ..... Carry out this step after (1) above.

a) Press the address key corresponding to the command. The display area of the corresponding

command value is highlighted, and a manual numerical command input status results. Execute tool

function commands with "T", and miscellaneous function commands with "M".

b) Key-input the numerical value to be commanded.

c) Press the [INPUT] key. The command is executed.

(Note) The manual numerical command operation is the same as the operation on the POSITION screen.

Refer to the section on manual numerical commands for the MONITOR and POSITION screens

for details.

(3) Operation for returning the mode from the manual numerical command mode to the normal data setting

mode

Press the [↓] key. The normal data

setting mode returns.

The cursor appears in the first set of

parentheses, and the normal setting mode is

enabled.

2.3.7 Workpiece Coordinate

Refer to "2.3.4 Workpiece Coordinate" in "2.3(II) Tool Offset (M system)".
