2. CNC Monitor Screen
2.3(I) Tool Offset (L system)
(Refer to "2.3 (II). Tool Offset (M system)" for Machining center system)
I - 68

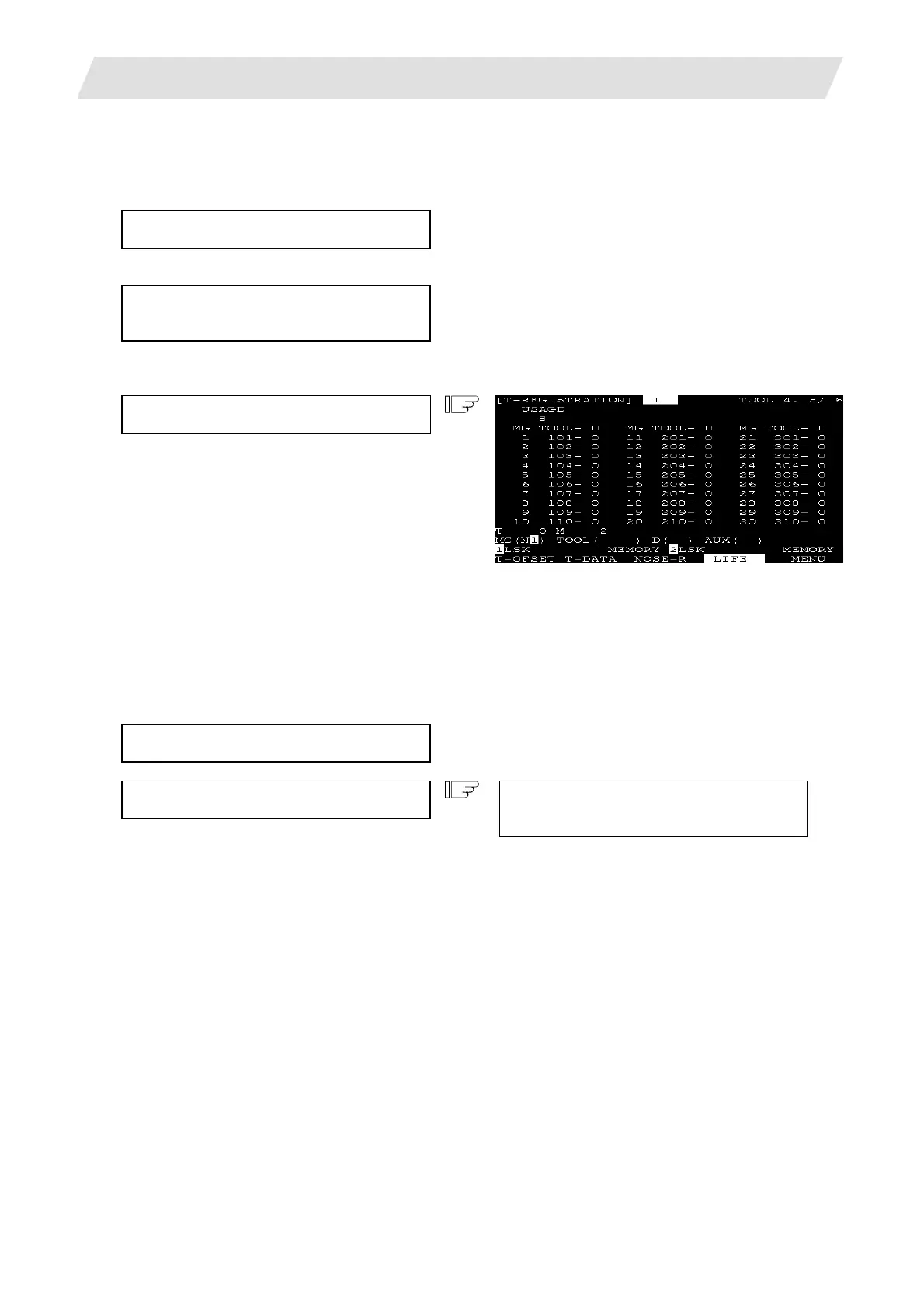

2.3.6.3 Tool Registration in the Spindle, Standby
and Indexing Areas
These commands are used to change the display data when the tool No. set in the magazine pot differs
with the displayed tool No.
Set to USAGE MG (N0) TOOL ( )
Set “N0” in MG ( ), and
“8” in TOOL ( ).
Press the [INPUT] key.
"8" appears under USAGE in the data display area, and the
display in the data setting area changes to MG (N1).
(Note) Although the title display in the upper portion of the screen differs according to the maker, the data
is always set by an input of N0.
2.3.6.4 Deleting Tool Registration Data
Set CL
in MG (
).
Press the [INPUT] key.
All data displayed in USAGE
and MG1 to MGn is cleared to 0.
