Appendix 5. Table of Conversion Codes for Error Code Output
Appendix 5.3 Restrictions
IV - 22
Appendix 5.3 Restrictions
(1) If the MCP alarm "Y02 SYSTEM ALARM" occurs, part of the data will not be coded. Confirm the data
on the display unit.
(Example) Y02 SYSTEM ALARM 0051 0104
In this case, only "Y02" and "0051" are coded and output to the PLC I/F device.
(2) If an alarm without an alarm No. occurs, "0" will be set as the alarm No. and output to the PLC I/F
device.
(3) If an alarm that does not have an axis name occurs, "0" will be set as the axis name and output to the
PLC I/F device.
(4) Alarms not shown in the code table are not output to the PLC I/F device.
(5) If multiple alarms occur simultaneously, only the alarm with the highest order of priority in the code
table will be output.
(6) The "OOO" section of the program error "POOO" is output to the alarm No. are
a
.
(Example) "P34 G-CODE ERROR 0 0"

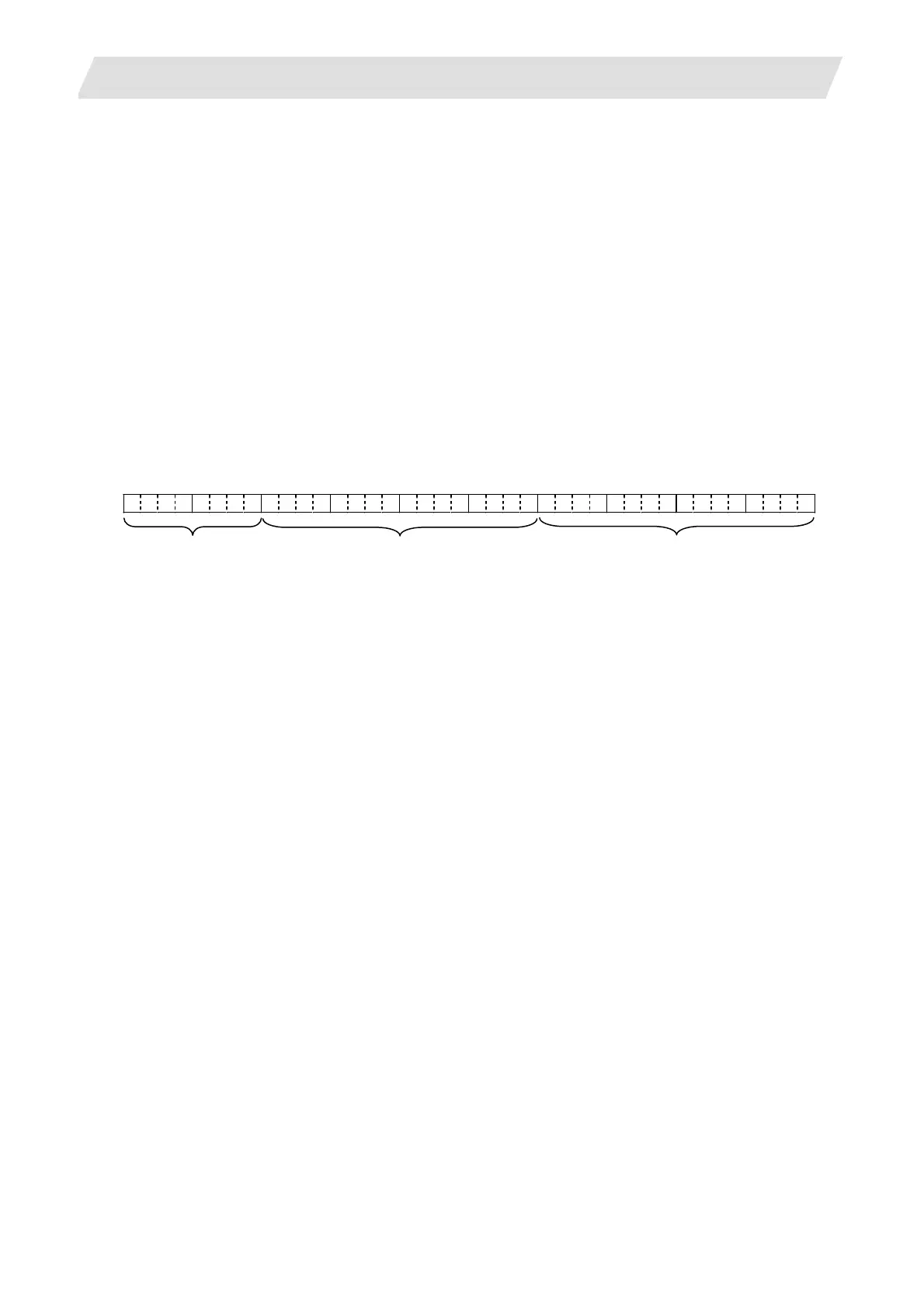

The code output becomes 71003400, and the output to PLC I/F devices is as follows.
0 1 1 1 0 0 0 1 00 0 0 0 0 0 00011010000000000 0 0 0 0 0 000
Alarm type
Alarm No.
Axis name
