4. Operation Mode
4.1 Mode Selection Switch
The MODE SELECT switch is used to determine the controller operation mode.
Jog feed mode:
Select the mode to move the controlled axis
consecutively at manual feedrate.
Rapid traverse feed mode:
Select the mode to move the controlled axis
consecutively at rapid traverse feedrate.
Return to reference position mode:
Select the mode to position the controlled axis at the
machine reference position manually.
Incremental mode:
Select the mode to move the controlled axis at a given
distance.
Handle feed mode:
Select the mode to move the controlled axis by using
the manual handle.
Memory Mode:
Select the mode for memory operation.
MDI mode:
Select the mode for MDI operation.
(Note 1)
See 1.4 for the running state when a change is made to another mode during automatic
operation.

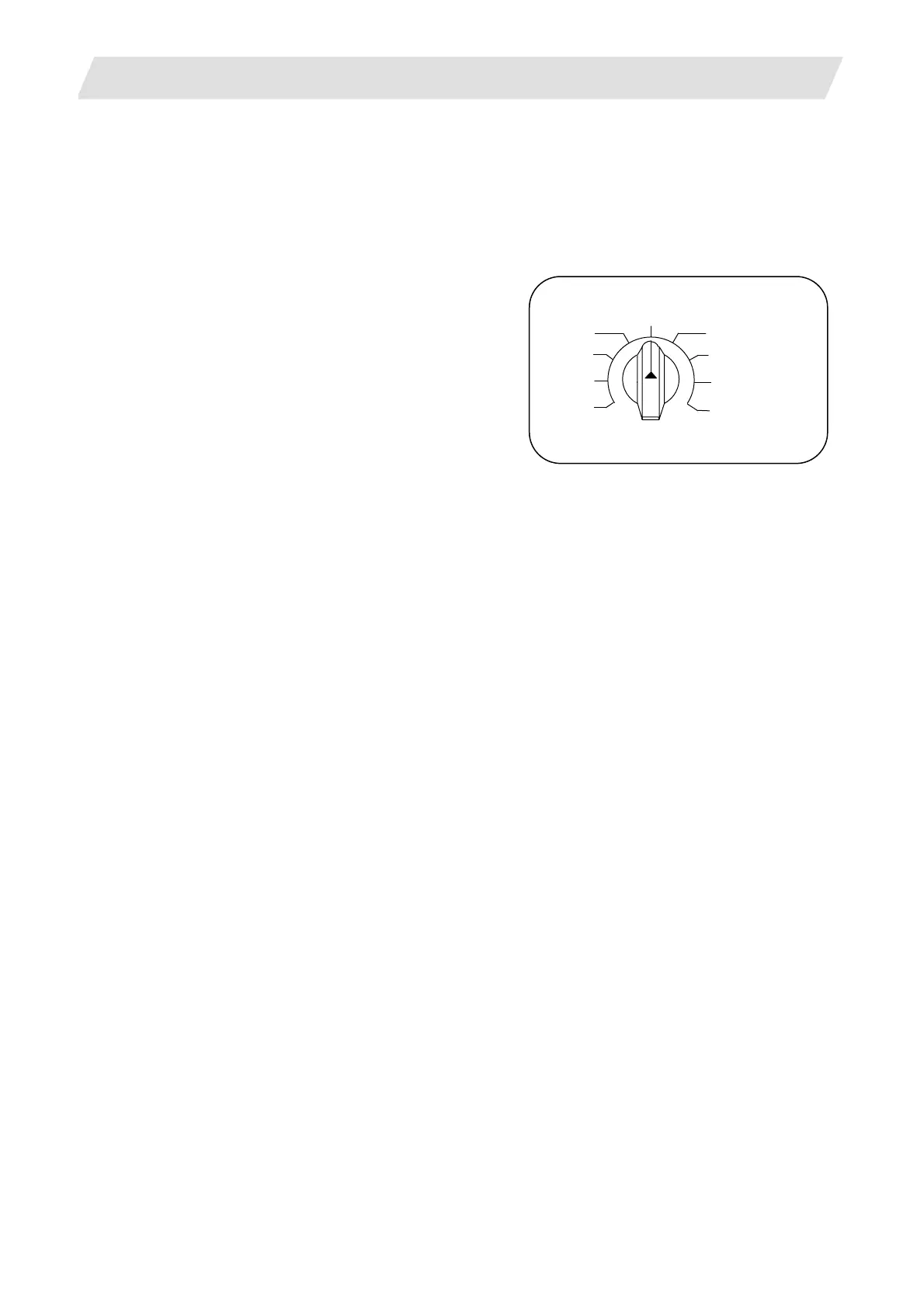

MODE SELECT
RAPID
TRAVERSE
INCRE-
MENTAL
HANDLE
MDI
JOG
REFERENCE
POINT RETURN
MEMORY
