4. Operation Mode
4.2 Jog Feed Mode
II - 8
4.2 Jog Feed Mode
The jog feed mode enables the machine to be moved consecutively at the feedrate set by using the
MANUAL FEED RATE switch manually. The jog feed mode is started by using the FEED AXIS SELECT
switch.
See Section 5 for the MANUAL FEED RATE switch.

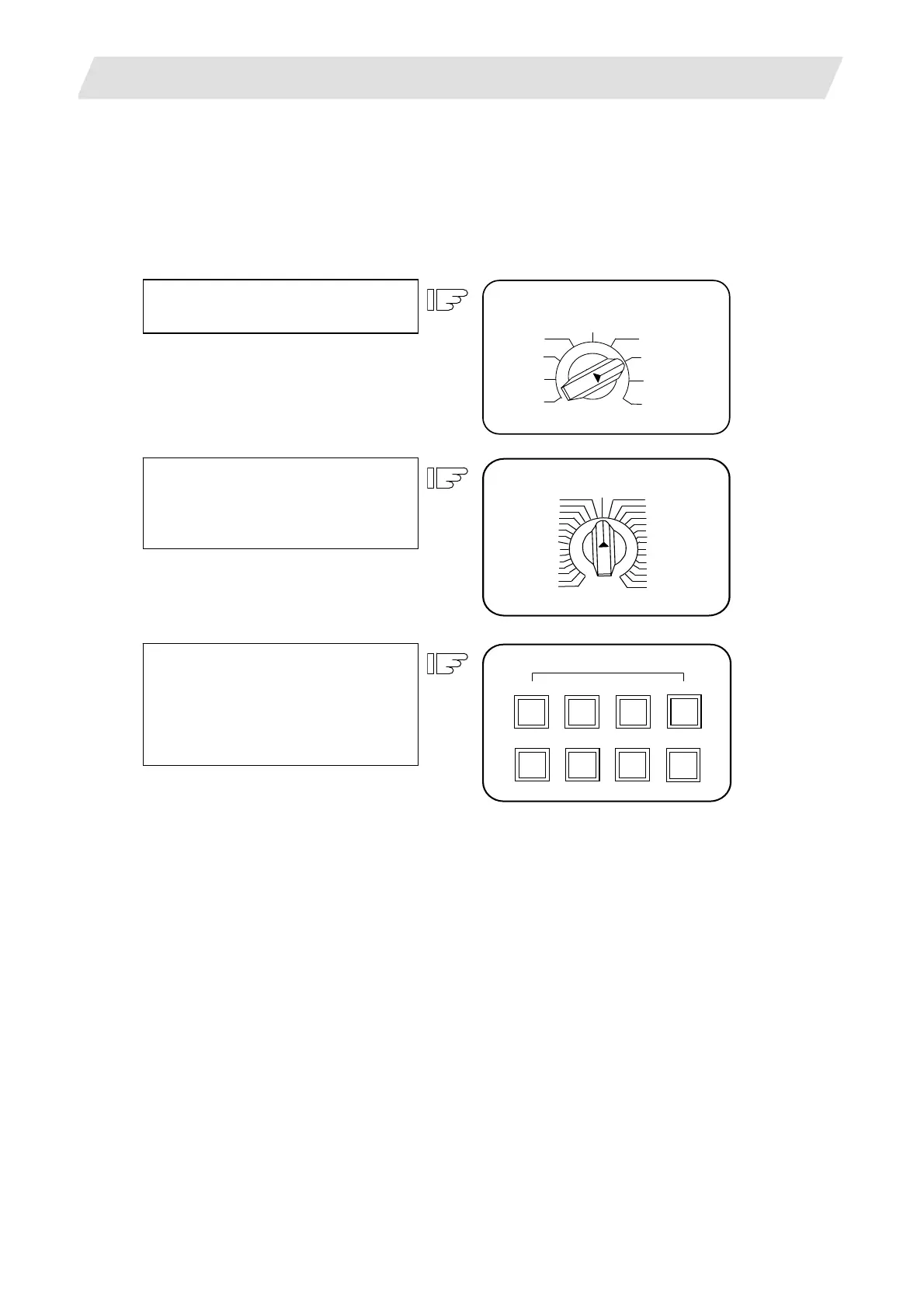

Operation procedure
MODE SELECT
MEMORY
RAPID
TRAVERSE
JOG
REFERENCE
POINT RETURN
INCRE-
MENTAL
HANDLE
MDI
mm/min
MANUAL FEEDRATE
10 0
72.0
52.0
37.0
27.0
20.0
14.0
10.0
7.2
6.2
3.7
2.7
2.0
1.4
1.0
0
140.0
200.0
270.0
370.0
520.0
720.0
1000.0
1400.0
2000.0
2700.0
3700.0
5200.0
7200.0
10000.0
14000.0
FEED AXIS SELECT
+X
-X
+Y
-Y
+Z
-Z
+4
-4
(Note 1)
When the MANUAL OVERRIDE switch on the operation panel is turned on, the override value
set by using the FEED RATE OVERRIDE switch takes precedence over the feedrate set by
using the MANUAL FEED RATE switch.
Using the MODE SELECT switch,
select the jog mode.
Using the MANUAL FEED RATE
switch, set the feedrate.
The feedrate unit is the travel distance
(mm) per minute.
To move the controlled axis, turn on the
FEED AXIS SELECT switch. The
controlled axis is moved while the
switch is turned on.
When the switch is turned off, the
controlled axis stops with deceleration.
