2. CNC Monitor Screen
2.7 Diagnosis
I - 195

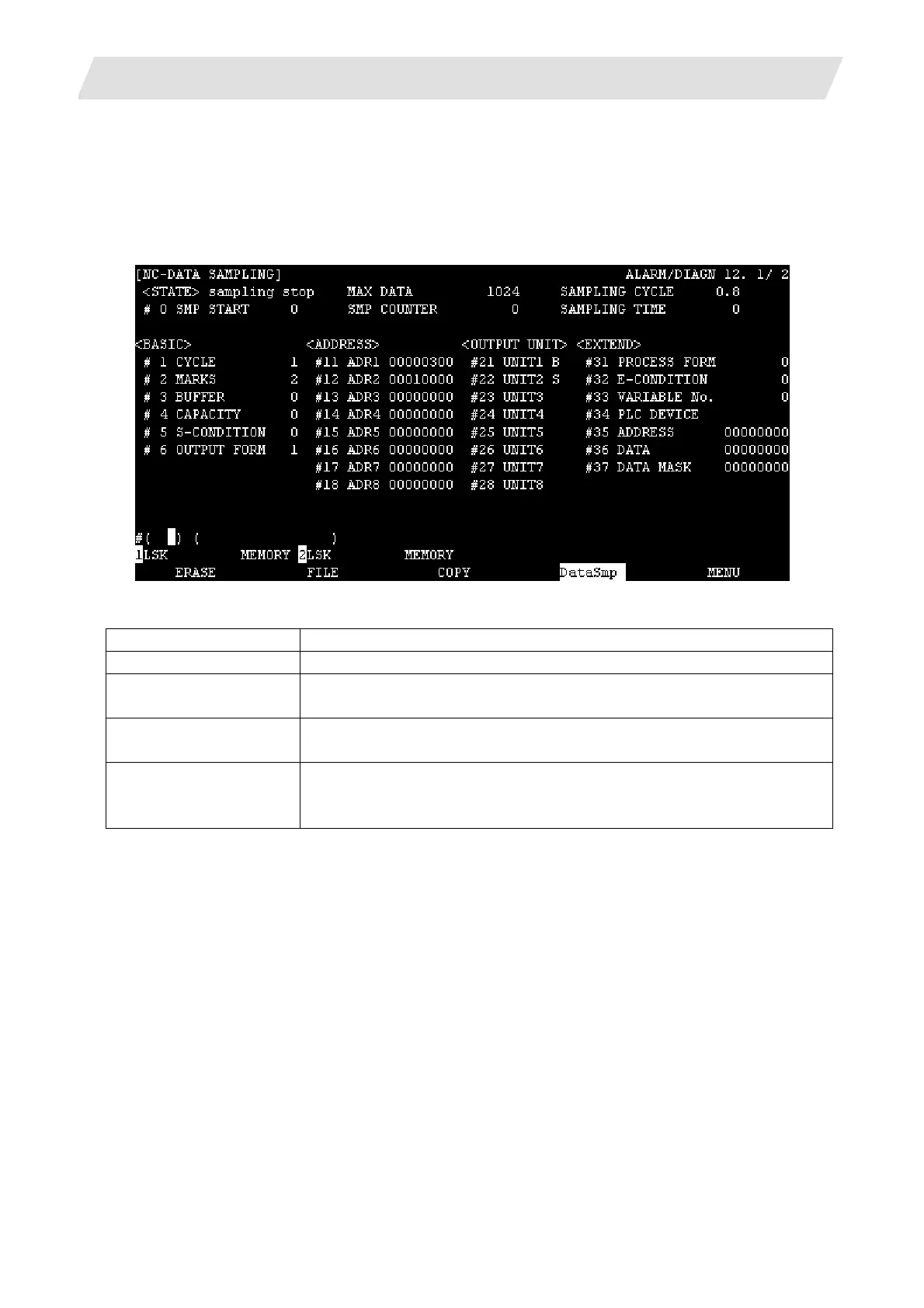

2.7.9 NC Data Sampling
Sampling start/stop, sampling state display, and the sampling parameters necessary for sampling are set in
the data sampling screen. The NC internal data (speed output data from NC to the drive unit, or feedback
data from the drive unit, etc.) can be sampled.
The sampled data can be output.
Specifications for sampling
Item Specifications
Sampling cycle 0.8ms ∗ set value (1 to 255)
Number of sampled axes Servo axes: 1 to 16
Spindle: 1 to 7
Number of sampling
channels
1 to 8 points
Number of sampled data
items
Max. 1,310,720 points
(Note) This is a whole number of data items. The more sampling channels
are provided, the less data items will be handled by a channel.
To Next Page
