Mitsubishi C70 User Manual

2. CNC Monitor Screen
2.7 Diagnosis
I - 180
2.7.5 Absolute Position Monitor

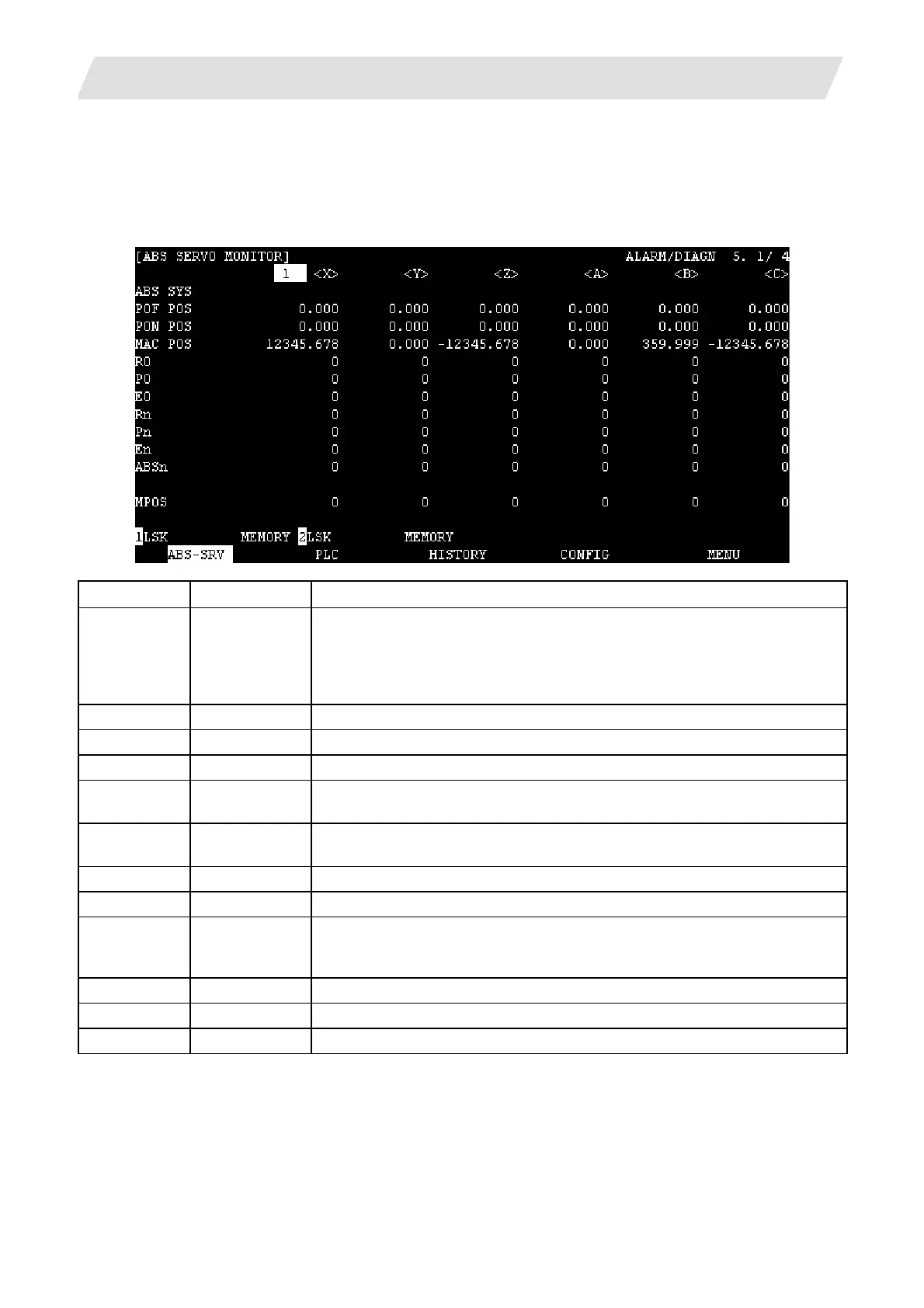

2.7.5.1 ABS Servo Monitor
The servo state in the absolute position detection system is displayed. This can be used to confirm each
detector data for the current machine value.
Display item Display unit
Explanation
ABS SYS
The status of the absolute position detection system on the servo side is
displayed.
ES : Semi-closed encoder
ESS : Semi-closed high-speed serial encoder
INC : Incremental
POF POS Command unit The absolute position when the power is turned off is displayed.
PON POS Command unit The absolute position when the power is turned on is displayed.
MAC POS Command unit The coordinate value in the basic machine coordinate system is displayed.
R0
The multi-rotation counter value of the detector, saved when the basic point
was set, is displayed.
P0 Output unit
The position in one rotation of the detector, saved when the basic point was
set, is displayed.
E0 The absolute position error, saved when the basic point was set, is displayed.
Rn The motor accumulated speed is displayed.
Pn
The position in one rotation is displayed.
One rotation is divided into 4096, 8192 or 32768. The No. of divisions differs
according to the detector.
En The absolute position error when the power is turned off is displayed.
ABSn The current absolute position is displayed.
MPOS The offset amount of the MP scale at the power ON is displayed.
