2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 88

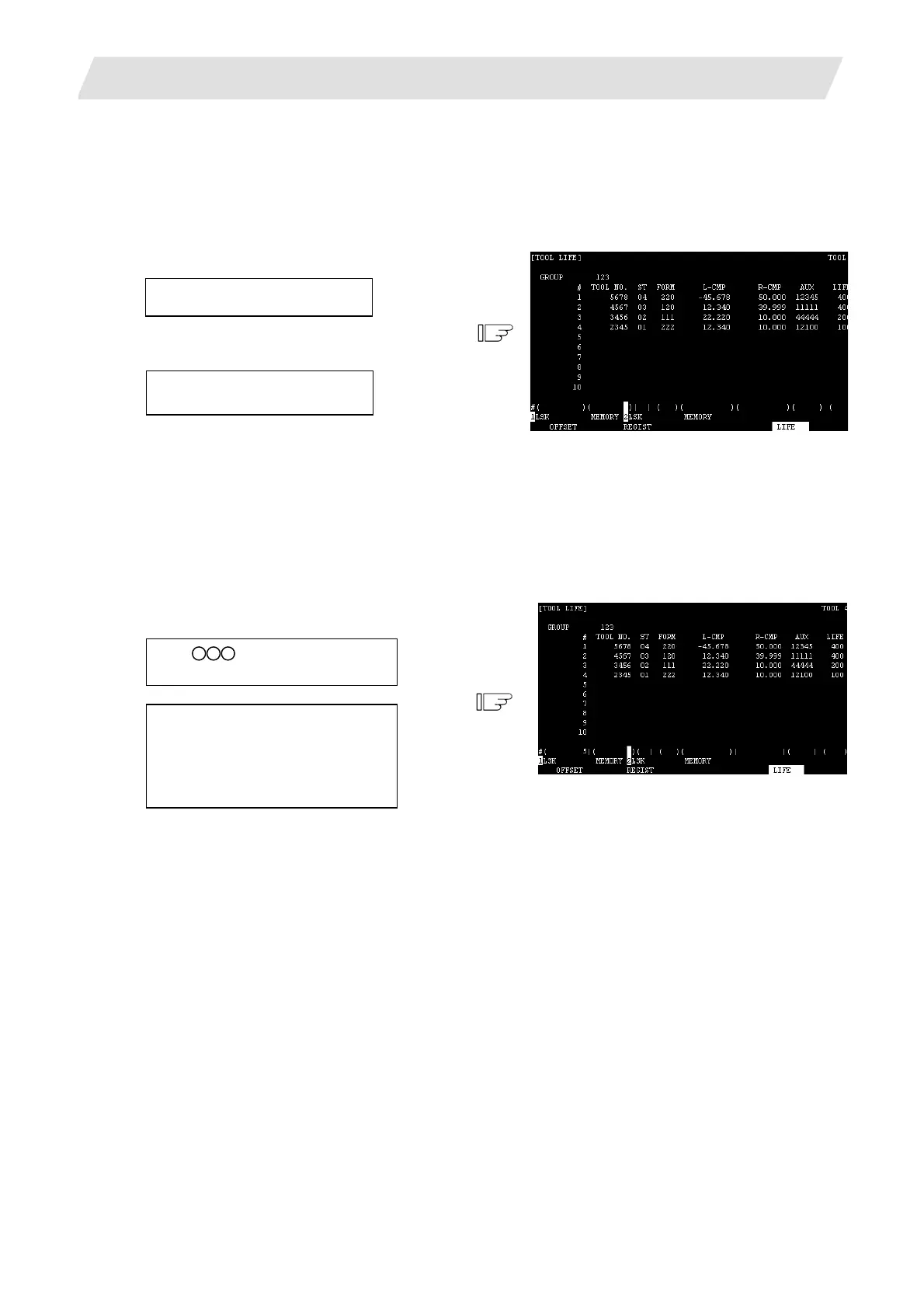

2.3.3.3 TOOL LIFE Data Display and Setting (TOOL LIFE Data Screen Page 2)
(1) Dat
a display
When the menu key [NEXT] is pressed on the HEAD, NEXT, GROUP list screen (previously
described), the TOOL LIFE screen is displayed.
The data in the group previously set is displayed. If no data is set, the screen is displayed with blank in
the data area.
Set G123 in # ( ).
Press the [INPUT] key.
The tool data registered in group 123 is displayed in the
registration order. If the data exceeds one screen, the
remaining data can be seen by using the [NEXT]
key.
(2) Data registration
Select TOOL LIFE data screen for the group
in which data is to be registered.
Set G
in # ( ), then press
the [INPUT] key.
Set necessary data of TOOL NO.
to USED in the corresponding
parenthesis pairs in the ascending
order of the (#)
numbers, then
press the [INPUT] key.
The data setting number incremented by
one is set in # ( ).
(Note 1) If TOOL NO. and ST (status) are not set, setup data becomes invalid.
(Note 2) A single tool cannot be registered in more than one group.
To Next Page
