Mitsubishi C70 User Manual

2. CNC Monitor Screen
2.5 Program
I - 138

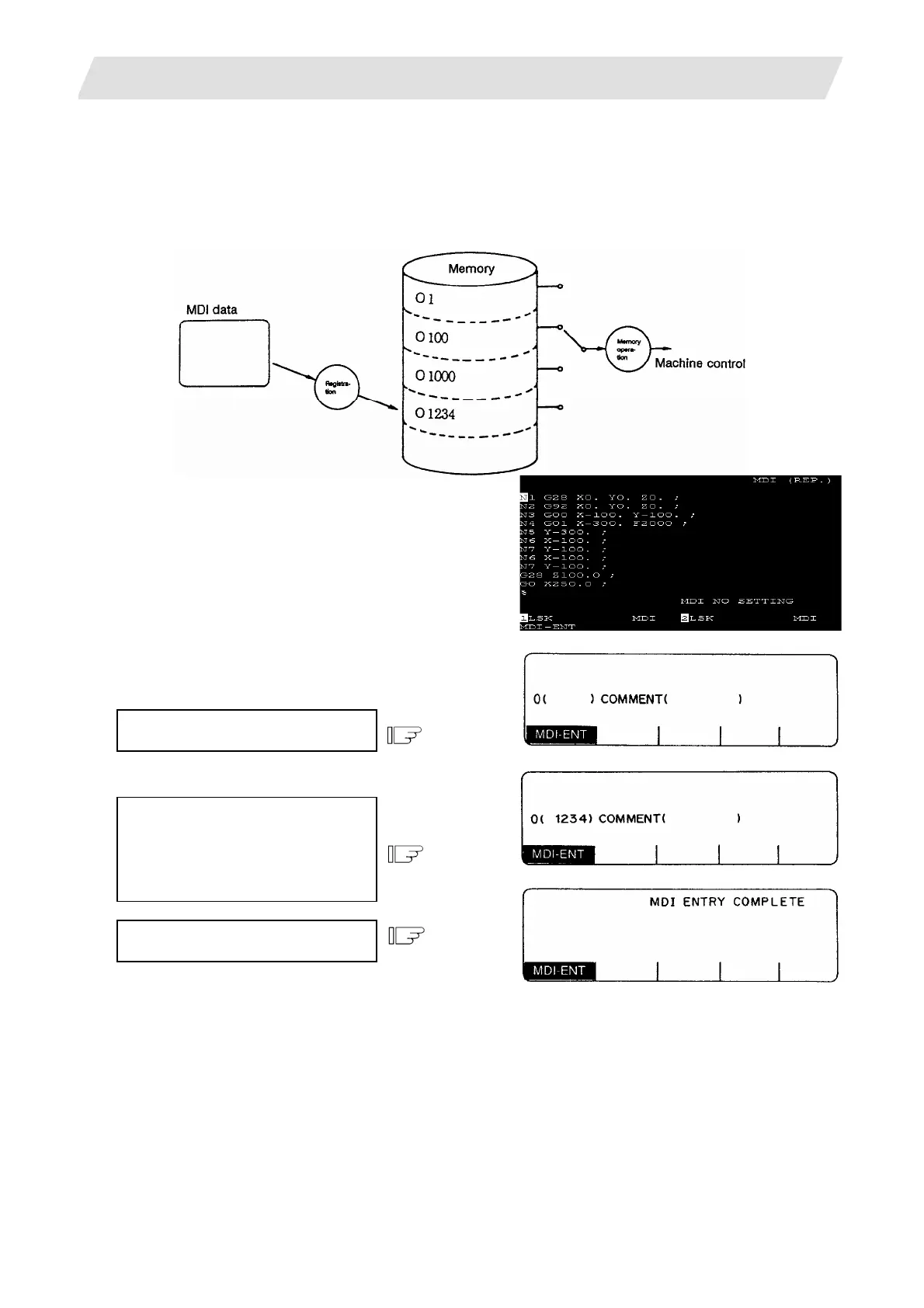

2.5.5 MDI Screen Extension Operation
2.5.5.1 MDI Data Registration in Memory
Data set on the MDI screen can be registered in memory. Comments can be added to indicate the contents
of the program to be registered.
For example, assume that MDI data is set as shown
in the right. The MDI data registration procedure in
memory is described below:
Press the menu [MDI-ENT].
1) The setting area for MDI-ENT is displayed.
Set the registered program number.
A
comment can also be set at the
same time.
(Example)
O ( 1234) COMMENT ( )
Press the [INPUT] key.
1) If the program has been registered normally
into memory, the message "MDI ENTRY
COMPLETE" is displayed. The display is
cleared from the setting area; the MDI-ENT
menu display returns to normal display from the
reverse display.
(Note) If preparing comment, space ([SPACE]) can be written in it. But, the space is ignored after
registration for efficient use of memory.
(1)
(2)
(3)
