2. CNC Monitor Screen
2.3(I) Tool Offset (L system)
(Refer to "2.3 (II). Tool Offset (M system)" for Machining center system)
I - 40

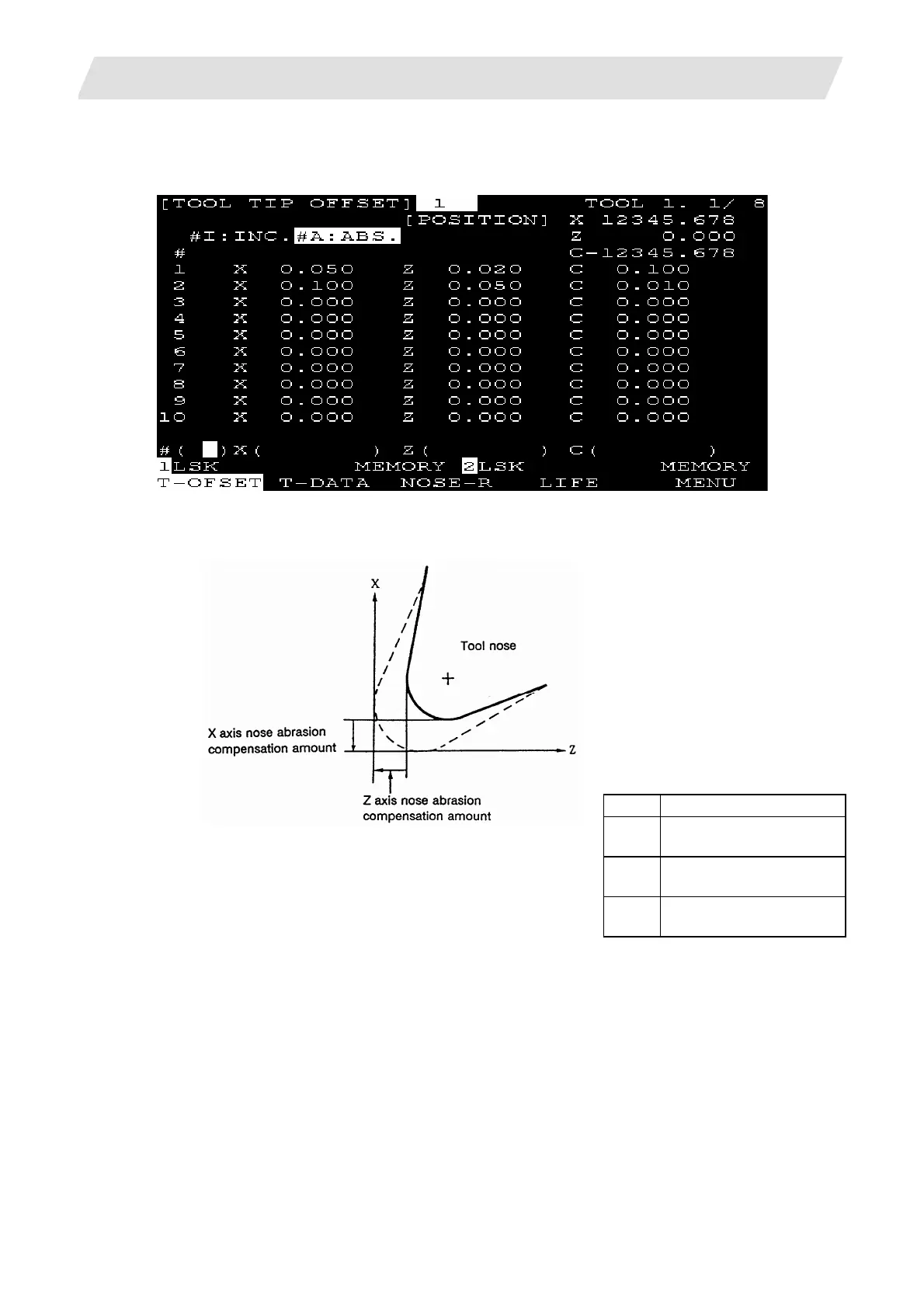

2.3.1 Wear Data
The TOOL TIP OFFSET screen will appear when the menu [T-OFFSET] is pressed.
Set the nose wear for each tool used. When the tool compensation No. is designated by the tool command (T
command), compensation is carried out matching the tool length of the next screen.
X axis offset
X axis tool length offset + X axis
wear offset
Z axis offset
Z axis tool length offset + Z axis
wear offset
C axis offset (additional axis)
C axis tool length offset + C axis
wear offset
Data Function
X
X axis tool nose wear
compensation
Z
Z axis tool nose wear
compensation
C
Additional axis tool nose
wear compensation
