2. CNC Monitor Screen
2.2 Monitor
I - 34
2.2.5 Common Variable

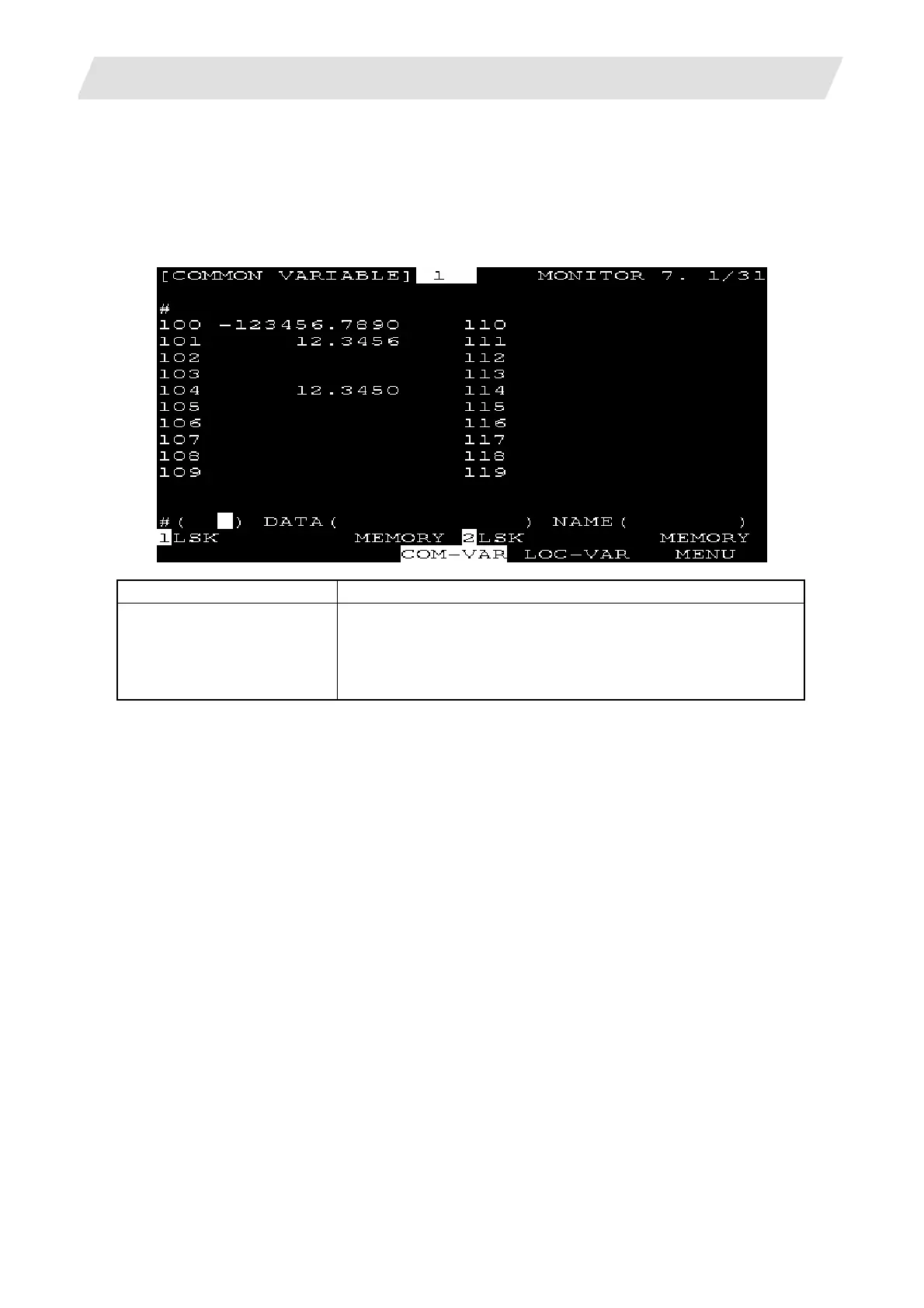

When the menu [COM-VAR] is pressed, the COMMON VARIABLE screen is displayed. The common
variable contents are displayed for the variable command in a machining program.
Common variable data can also be set or changed on the COMMON VARIABLE screen.
The common variable configuration varies depending on the number of variables defined in the
specifications. For 100 variables, #100~#149 and #500~#549 are assigned (7-page configuration).
Display item Explanation
#
100 -123456.7890
101 12.3456
102
The variable numbers and contents are displayed. If variable data
is "null", the data display field will be blank. If the number of
columns of data is too large (the data contains more than six
characters in the integer part or more than four characters in the
fraction part), the exponent will be used for display.
