Mitsubishi C70 User Manual

2. CNC Monitor Screen
2.7 Diagnosis
I - 193
2.7.8 System Configuration
The software control number and hardware mounting state are displayed on this screen. Refer to this
screen when contacting the service department in case of trouble, etc.

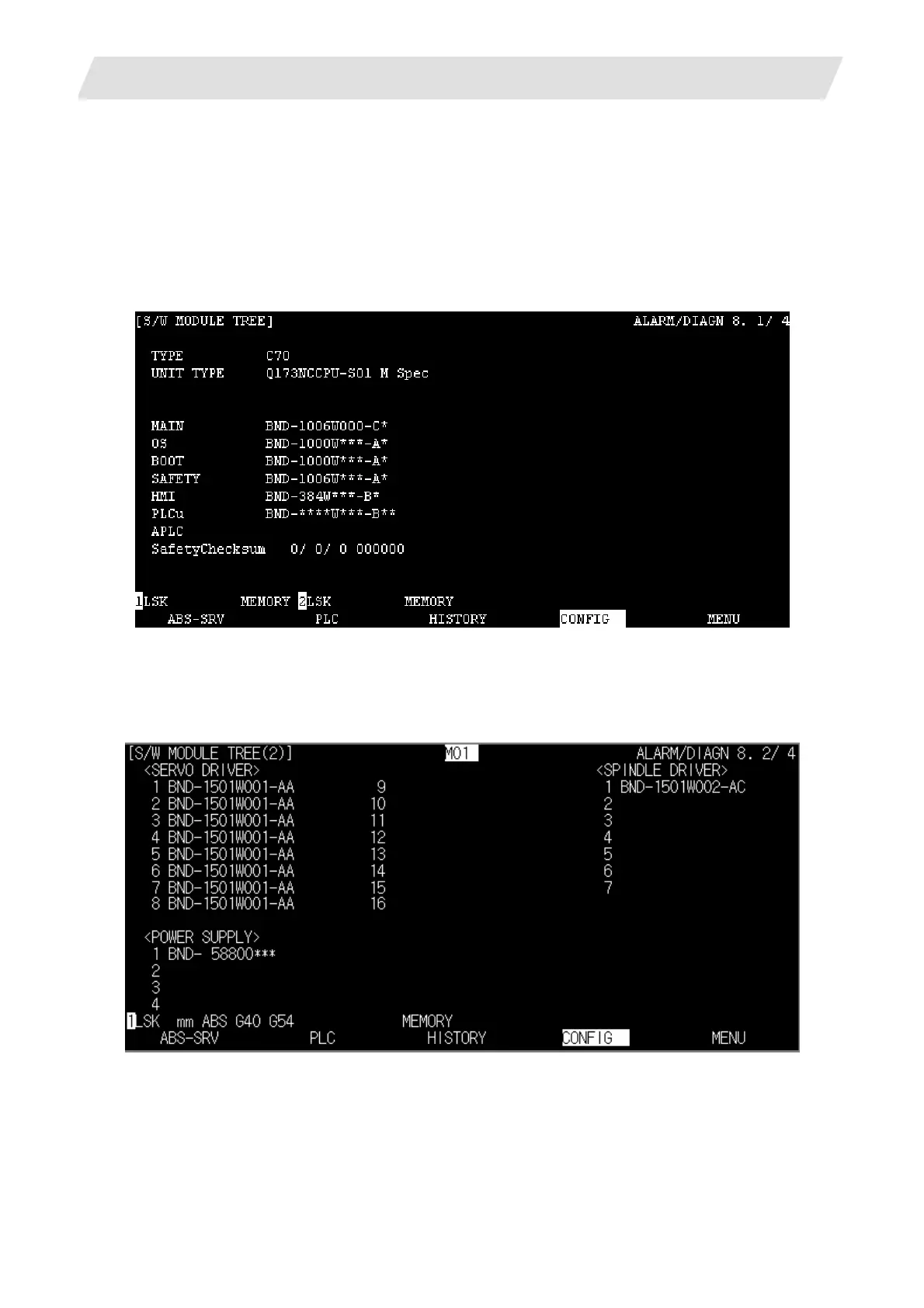

2.7.8.1 S/W Module Tree (NC System)
Pressin
g the menu [CONFIG] displays the S/W MODULE TREE screen.
2.7.8.2 S/W Module Tree(2) (Driv
e Unit)
Pressing the [NEXT] key on the S/W MODULE TREE screen displays the S/W MODULE TREE(2) screen.
