2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 84

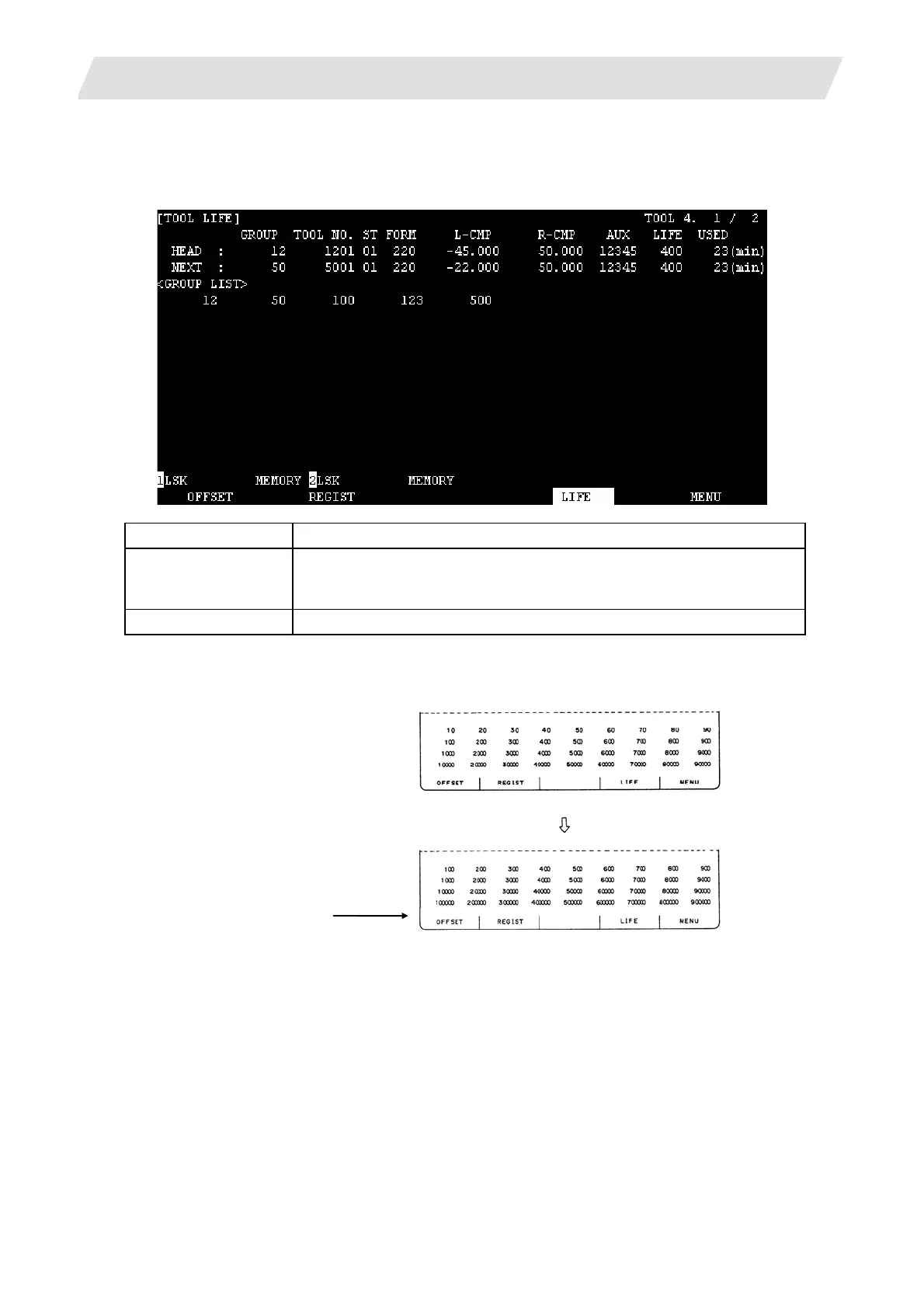

2.3.3.2 TOOL LIFE Screen Data Display
(1)
HEAD, NEXT, GROUP LIST screen
(Display only. No data can be set).
Display item Explanation
HEAD
NEXT
The tool numbers and TOOL LIFE data of the tools in HEAD and NEXT
are displayed.
When TOOL LIFE is ineffective, only the tool numbers are displayed.
GROUP LIST The group numbers registered as TOOL LIFE data are displayed.
A maximum of 90 group numbers are displayed on one screen. If the number of the group
numbers
exceeds 90, the screen is scrolled every line by using the [↑] or [↓] key.
One-line scroll by pressing
the [↓] key.
To Next Page
