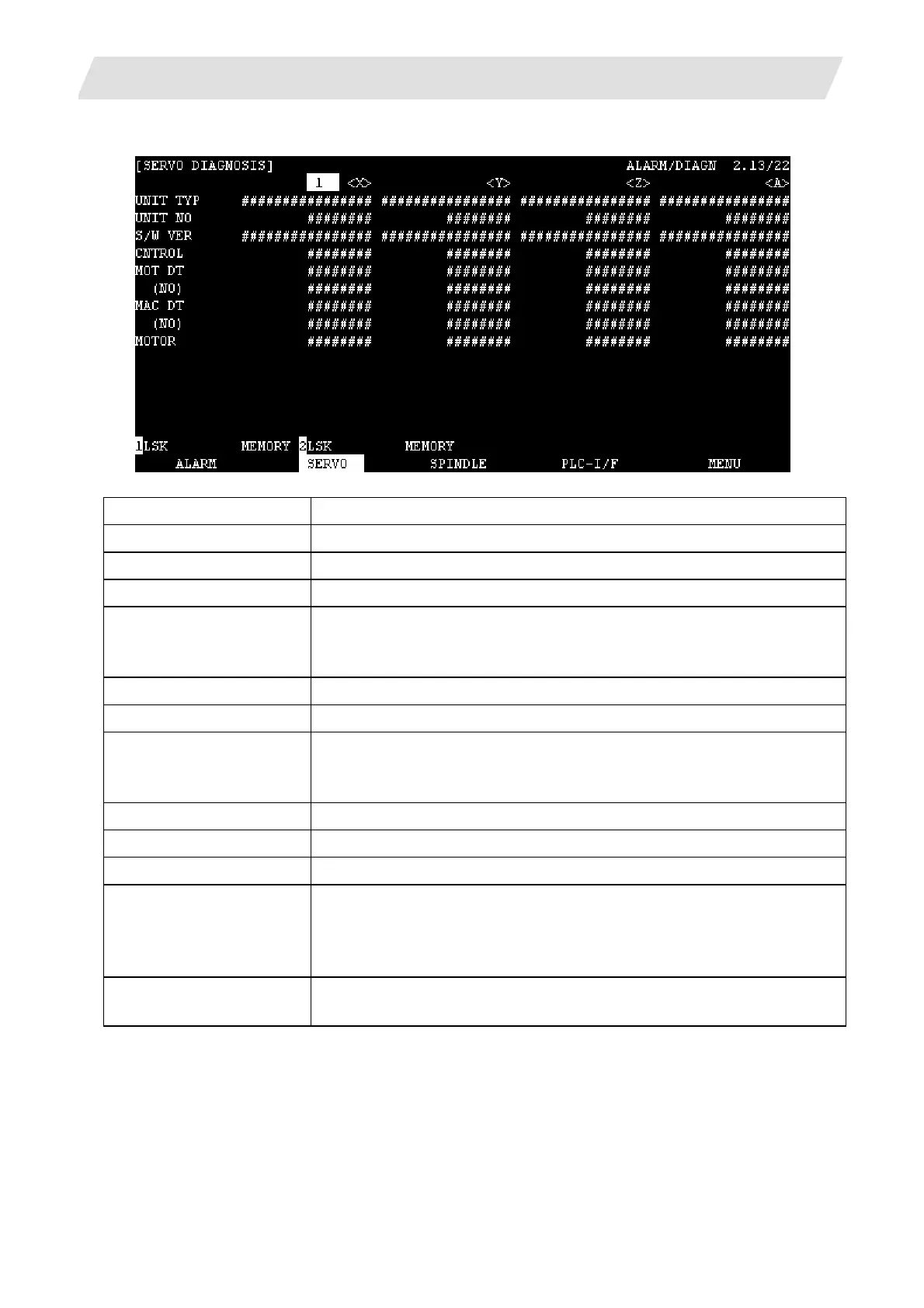

2. CNC Monitor Screen
2.7 Diagnosis
I - 160
2.7.2.2 Servo Diagnosis
Display item Details
UNIT TYP This displays the servo driver type.
UNIT NO This displays the servo driver serial No.
S/W VER This displays the servo side software version.
CNTROL SEMI : Semi-closed loop
CLOSED : Closed loop
DUAL : Dual feedback
MOT DT This displays the motor end detector type.
MOT DT(NO) This displays the motor end detector serial No.
MAC DT This displays the machine end detector type.
The type is displayed when the control method is CLOSED or DUAL.
* is displayed when the method is SEMI.
MAC DT(NO) This displays the machine end detector serial No.
MOTOR This displays the motor type.
WORK TIME This displays the READY ON work time. (Units: 1hr)
ALARM HIST 1 to 8 This displays servo alarms that occurred in latest order with the following
formats.
Time: Work time when the alarm occurred.
Alarm No.: No. of the servo alarms that occurred.
MNT/SYS Maintenance history
Status
To Next Page
