5. Operation Panel Switches in Operation Mode
5.4 Handle/Incremental Feed Magnification Factor
II - 17

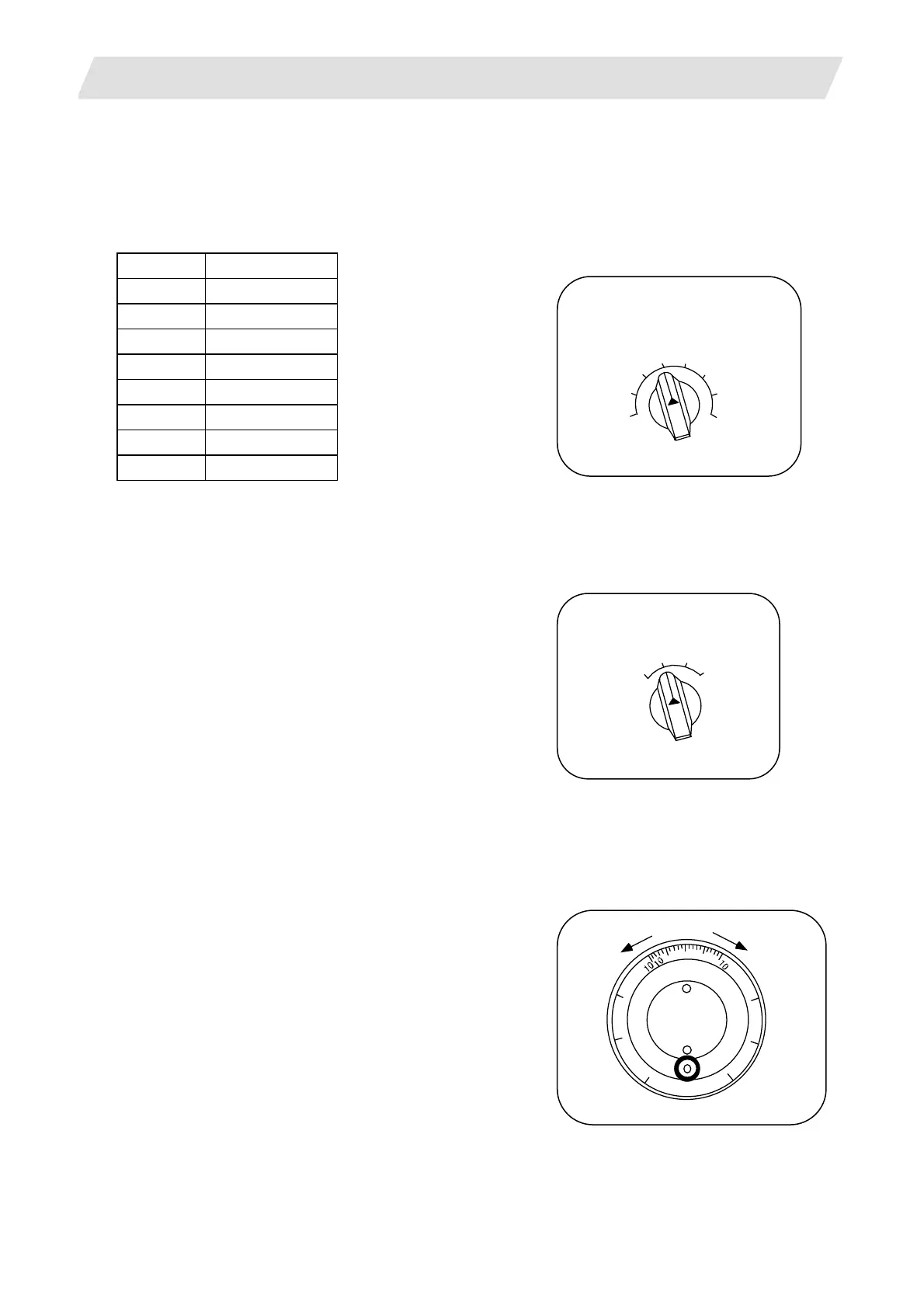

5.4 Handle/Incremental Feed Magnification Factor
Use the HANDLE/INCREMENTAL MAGNIFICATION switch to set the travel distance specified when
manual handle feed or incremental feed is made.
The travel distances for each axis are listed below:
(Up to 1000 can be set for handle feed.)
Handle Incremental
1 1
10 10
100 100
1000 1000
1 5000
10 10000
100 50000
1000 100000
5.5 Handle Feed Axis Selection
Use the HANDLE FEED AXIS SELECT switch to select
the axis moved by handle operation when the handle
mode is selected.
5.6 Manual Pulse Generator
In the manual handle mode, fine feed of the machine can
be made by turning the manual pulse generator.
The manual pulse generator has 100 graduations per
revolution and outputs one pulse per graduation. The
travel distance per pulse is set by using the
HANDLE/INCREMENTAL MAGNIFICATION switch.
HANDLE/
INCREMENTAL MAGNIFICATION
10
10000
1
1
10
10
100
100
1000
1000
1
5000
100
50000
1000
100000
X
Y
Z
4
HANDLE FEED AXIS SELECT
HANDLE
00
+
-
MELDAS
7
2
