Mitsubishi C70 User Manual

6. Operation Panel Switch Functions
6.15 Handle Interruption
II - 31

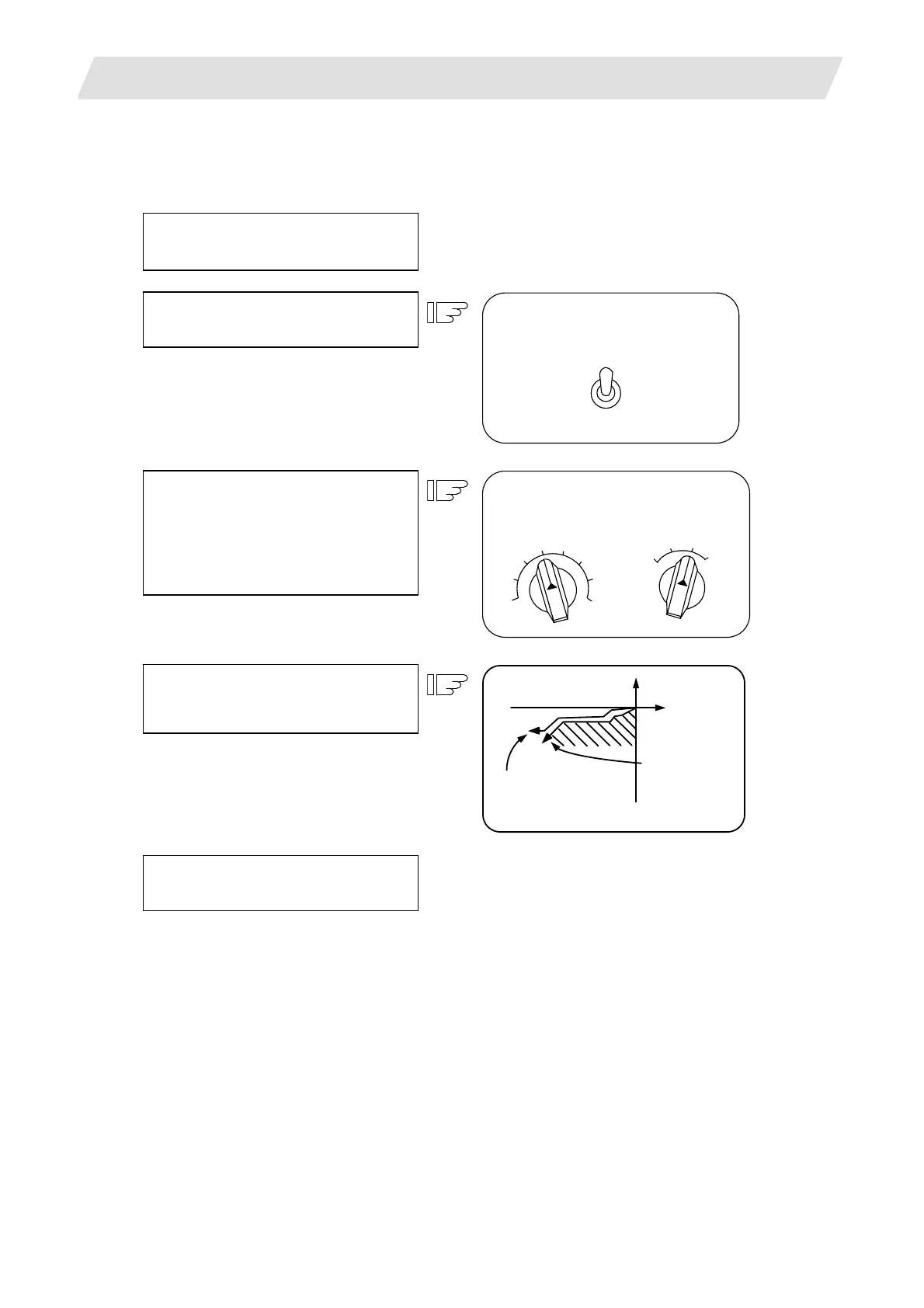

6.15.8 Operation Sequence
An operation example is given where automatic operation of XYZ axes is executed in the memory
operation mode and the Z axis is used as a handle interrupt axis.
ON
OFF
HANDLE
INTERRUPT
HANDLE/
INCREMENTAL
MAGNIFICATION
10
10000
1
1
10
10
100
100
1000
1000
1
5000
100
50000
1000
100000
X
Y
Z
4
HANDLE FEED
AXIS SELECT
X
Z
Tool path
Program path
(Current position
display)
Handle interrupt
(Handle interrupt display)
Perform automatic operation.
Turn on the HANDLE INTERRUPT
switch on the machine operation panel.
Select interrupt axis by setting the
HANDLE AXIS SELECTION switch on
the machine operation panel.
Select the travel distance per handle
graduation by setting the HANDLE/
NCREMENTAL RATIO switch.
Turn the manual handle in the + or
−
direction and change the Z axis cut
depth amount.
When M2 or M30 is executed, auto
operation will stop.
