6. CNC Data Input/Output
6.10 Deleting Files
III - 46
5) Select "3.PRG" in the list.
ALL.PRG
1.PRG
2.PRG
3
.
P
R
G
"3.PRG" is highlighted. The file name area
shows "3.PRG".
ALL.PRG
1.PRG
2.PRG
3
.
P
R
G

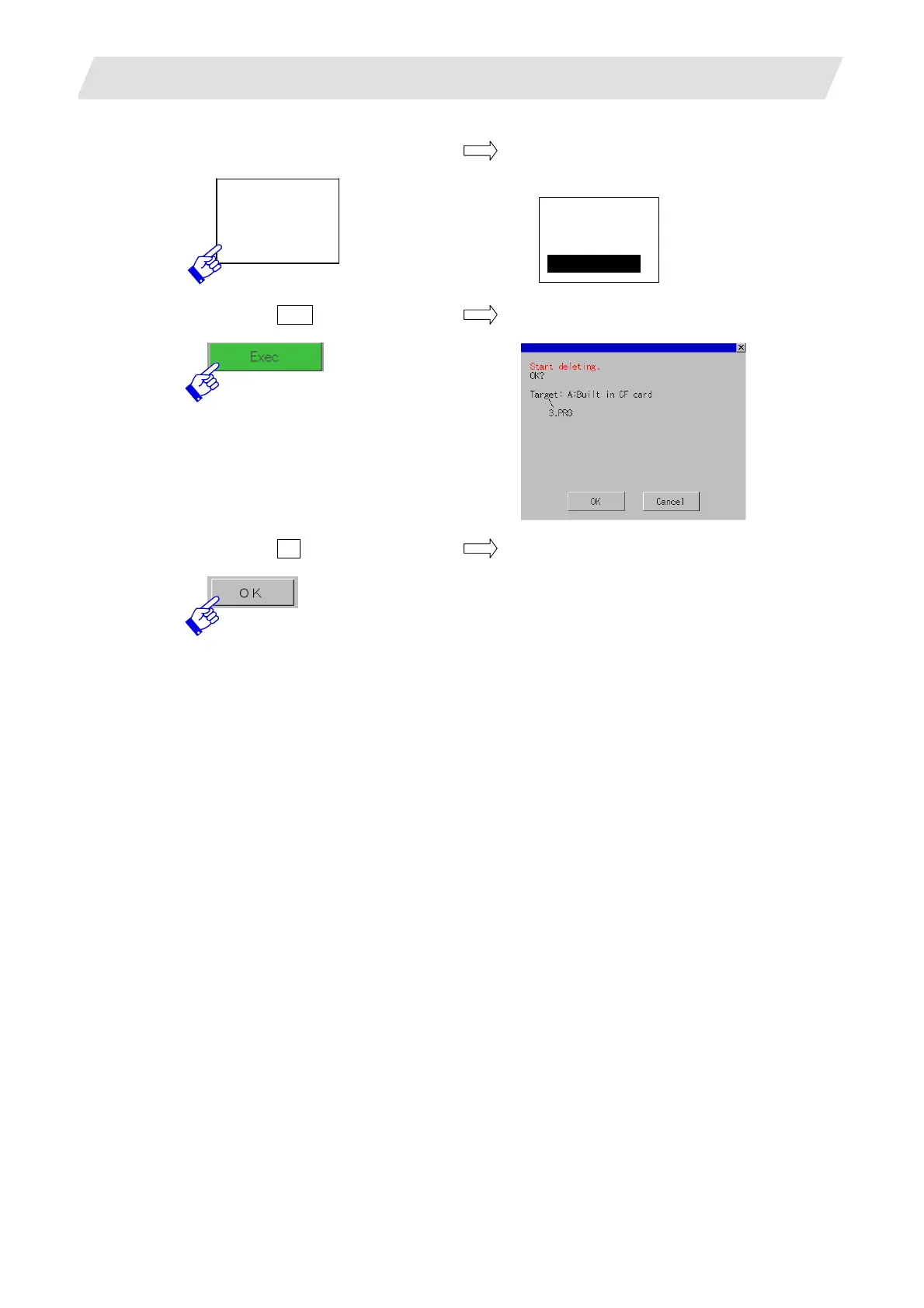

6) Touch the
Exec
button.
The delete confirmation window appears.
7) Touch the
OK
button.
The message area shows "Deleting".
"Delete complete" is shown upon the
completion of delete.
