1. Double relay
2. ECM
3. Boost pressure regulator
solenoid valve
4. Fuel pump
5. “ENG” fuse (15 A)
6. “FUEL PUMP” fuse (15 A)
ENGINE DIAGNOSIS (RHZ ENGINE WITH TRIPLE-CONNECTOR ECM) 6-1-27
DTC P0243 (P0243) TURBO PRESSURE SOLENOID VALVE CIRCUIT RANGE/
PERFORMANCE PROBLEM

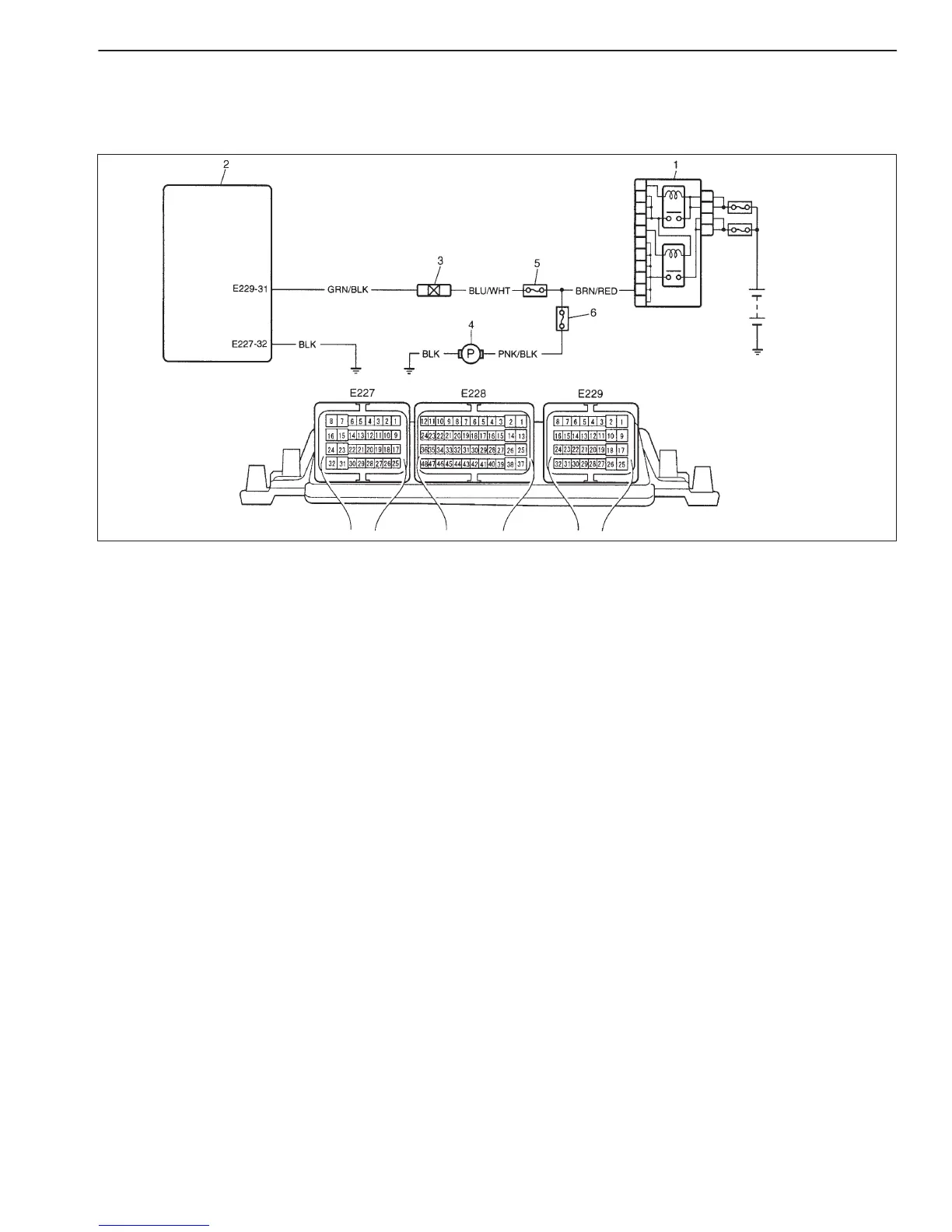

WIRING DIAGRAM
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool.
3) Check DTC and pending DTC by using scan tool.
