AUTOMATIC TRANSMISSION (4 A / T) 7B1-37
1. TCM
2. Transmission range
sensor (switch)
3. Fuse box
4. To ignition
DTC P0705 (DTC NO.34)TRANSMISSION RANGE SENSOR (SWITCH) CIRCUIT
MALFUNCTION

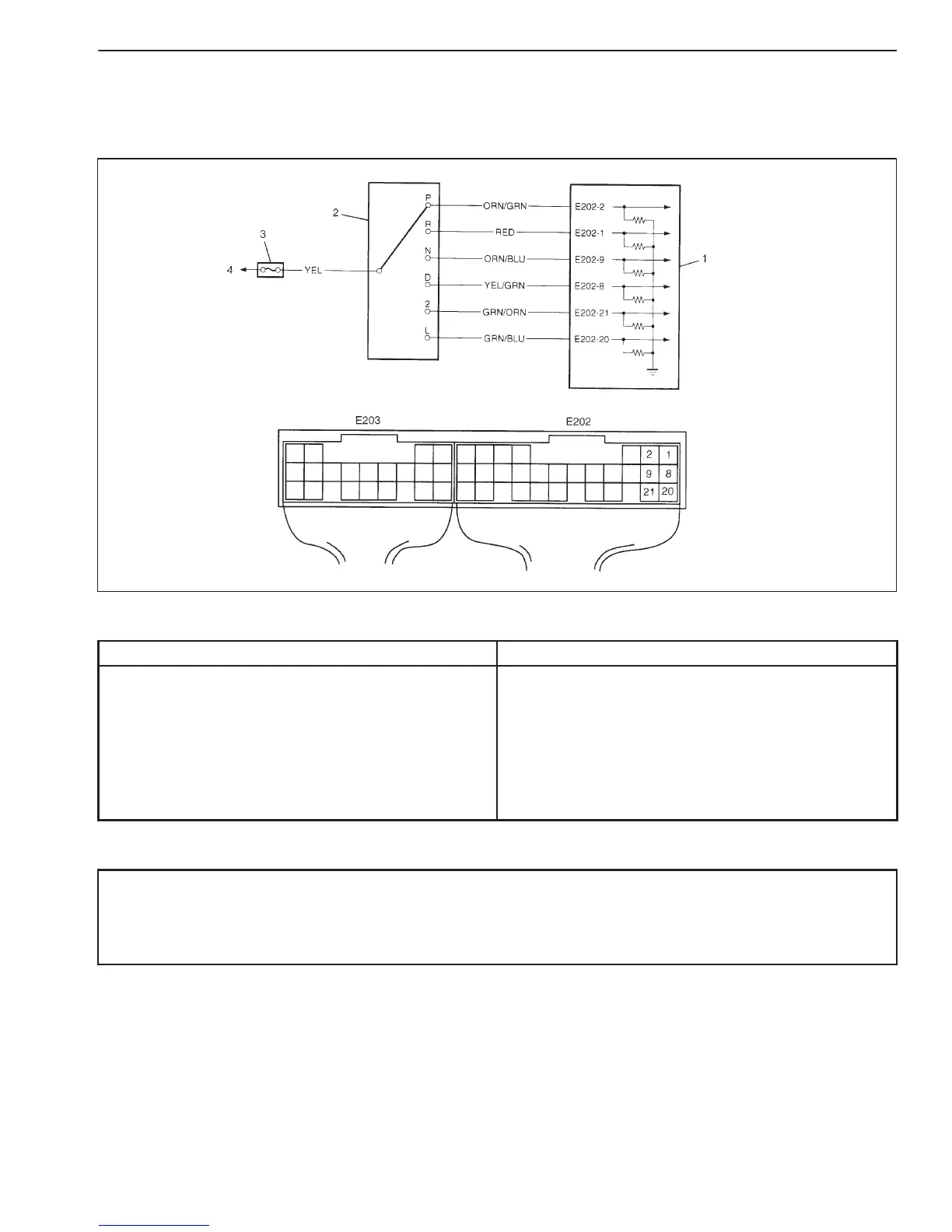

WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC DETECTING CONDITION TROUBLE AREA
D Transmission range switch signal (P, R, N, D, 2 or L)
is not inputted for 30 sec. at more than 30 km/h
(19 mile/h) vehicle speed and more than 1500 rpm
engine speed.
or
D Multiple signals are inputted simultaneously for
10 sec.
D Transmission range sensor (switch) maladjusted.
D Transmission range sensor (switch) or its circuit
malfunction.
D TCM
DTC CONFIRMATION PROCEDURE
WARNING:
D When performing a road test, select a place where there is no traffic or possibility of a traffic accident
and be very careful during testing to avoid occurrence of an accident.
D Road test should be carried out with 2 persons, a driver and a tester, on a level road.
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTC in TCM memory by using scan tool and start engine.
3) Shift A/T selector lever to each of L, 2, D, N, R and P ranges for 20 seconds each.
4) Increase vehicle speed to about 40 km/h (25 mile/h) in D range.
5) Keep driving above vehicle speed for 40 seconds.
6) Release accelerator pedal, decrease vehicle speed and stop vehicle.
7) Check DTC.
To Next Page
