AUTOMATIC TRANSMISSION (4 A / T) 7B1-65
Terminal No.
Switch position
P
R
N
D
2
L
123456789

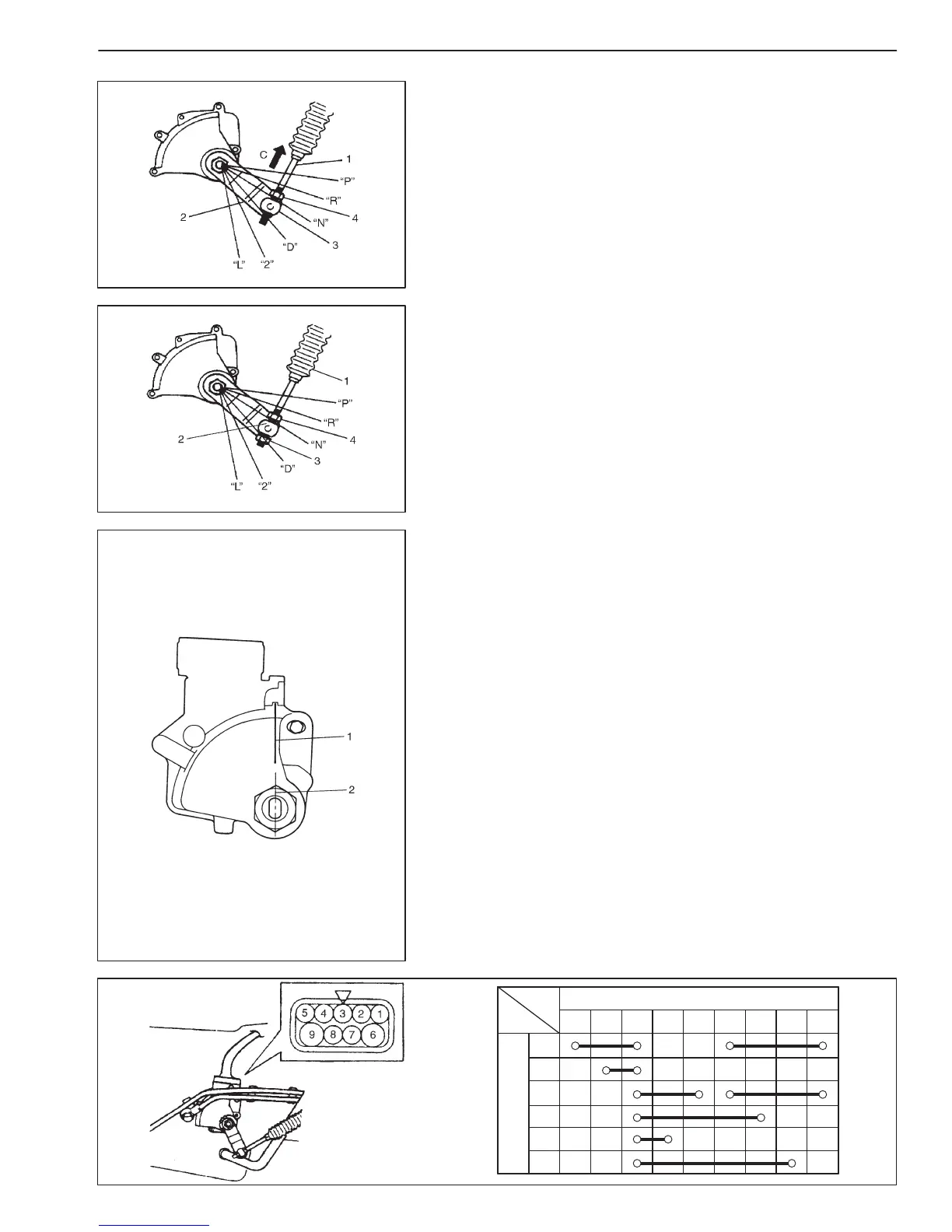

ADJUSTMENT
1) Before tightening cable end nut (4), shift select lever to “N”.
2) Also shift manual shift lever (2) to “N”.
NOTE:
D Make sure that nut (4) and cable joint (3) have clearance
under above conditions.
D If select cable (1) has been moved, push it in arrow C
direction as shown in figure at the left till it stops and then
confirm that select lever is in “N” position.
3) Turn nut (3) by hand till it contacts manual select cable joint (2).
Then tighten nut (4) with wrench.
4) After select cable (1) was installed, check for the following.
D Push vehicle with select lever shifted to “P”.
Vehicle should not move.
D Vehicle can not be driven in “N”.
D Vehicle can be driven in “D”, “2”, and “L”.
D Vehicle can be backed in “R”.
TRANSMISSION RANGE SWITCH
INSPECTION AND ADJUSTMENT
1) Shift select lever to “N” range.
2) Check that center line on manual valve shaft (2) and “N” refer-
ence line (1) on switch are aligned. If not, loosen switch bolt and
align them.
3) Check that engine starts in “N” and “P” ranges but it doesn’t start
in “D”, “2”, “L” or “R” range. Also, check that back-up lamp lights
in “R” range.
If faulty condition cannot be corrected by adjustment, disconnect
transmission range switch coupler and check that continuity exists
as shown by moving select lever.
