6A3-50 ENGINE MECHANICAL (RHZ ENGINE)

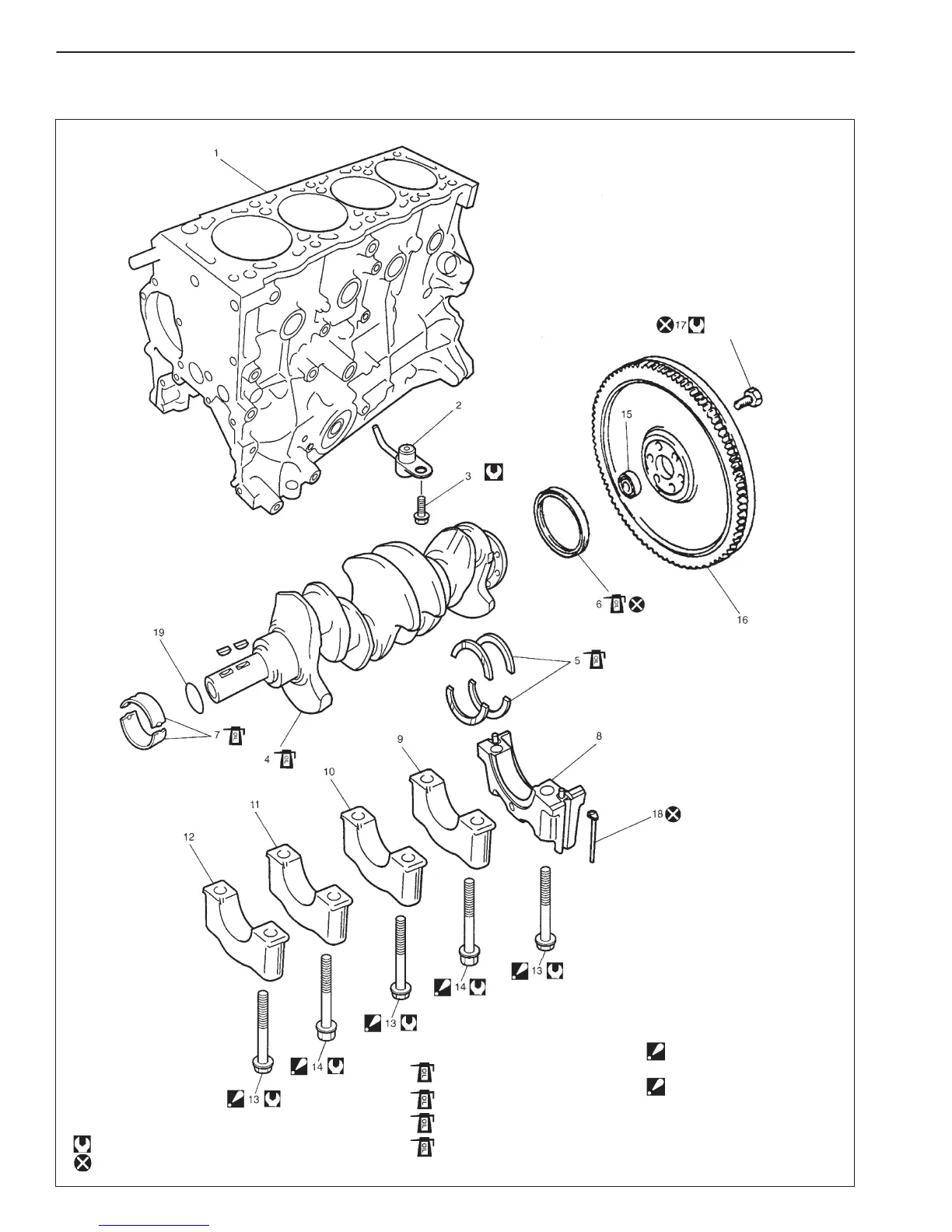

MAIN BEARINGS, CRANKSHAFT AND CYLINDER BLOCK
8. Main bearing cap No.1
9. Main
bearing cap No.2
10. Main bearing cap No.3
11. Main bearing cap No.4
12. Main
bearing cap No.5
13. Main
bearing cap bolt No.1
:Follo
w tightening procedure
referring
to “Installation”
14. Main
bearing cap bolt No.2
:Follow
tightening procedure
referring
to “Installation”
15. Input
shaft bearing
16. Flywheel
17. Flywheel
bolt
18. Bearing
cap seal
19. O-ring
: Tightening Torque
: Do not reuse
1. Cylinder block
2. Oil
jet
3. Oil jet bolt
4. Crankshaft:
Apply
engine oil to sliding surface.
5. Thrust
bearing:
Apply
engine oil to sliding surface.
6. Rear
oil seal:
Apply engine oil to sliding surface.
7. Main
bearing:
Apply
engine oil to bearing
inside
surfaces.
50 N
.
m
(5.0
kg-m, 36.5 lb-ft)
10
N
.
m
(1.0
kg-m)
