: Tightening Torque
: Do not Reuse
1. Clutch housing
2. Input shaft bearing retainer
: Apply sealant 99000-31110 to
mating surface to transmission front case.
3. Oil seal
: Apply grease 99000-25010 to oil seal lip.
4. Input shaft bearing retainer bolt
: Apply sealant 99000-31110 to all around
thread part of bolt.
5. Transmission front case
6. Oil drain plug
7. Oil filler / level plug
8. Back-up light switch
9. Oil plate
10. Oil plate bolt
: Apply thread lock 99000-32110 to
all around thread part of bolt.
11. Transmission intermediate case
: Apply sealant 99000-31110 to mating
surface to transmission front and
rear case.
12. Main and counter shaft bearing retainer
13. Main and counter shaft bearing
retainer screw
: Apply thread lock 99000-32110 to
all around thread part of screw.
14. Locating spring screw
: Apply sealant 99000-31110 to all
around thread part of screw.
15. 5th-reverse interlock cam comp.
16. Return spring low bolt
: Apply sealant 99000-31110 to
all around thread part of bolt.
17. Transmission rear case
18. Main shaft oil seal
: Apply grease 99000-25010 to oil
seal lip.
19. Return spring reverse bolt
: Apply sealant 99000-31110 to
all around thread part of bolt.
20. Interlock cam plug
: Apply sealant 99000-31110 to
all around thread part of plug.
21. Interlock cam pin
7A2-14 MANUAL TRANSMISSION
UNIT REPAIR

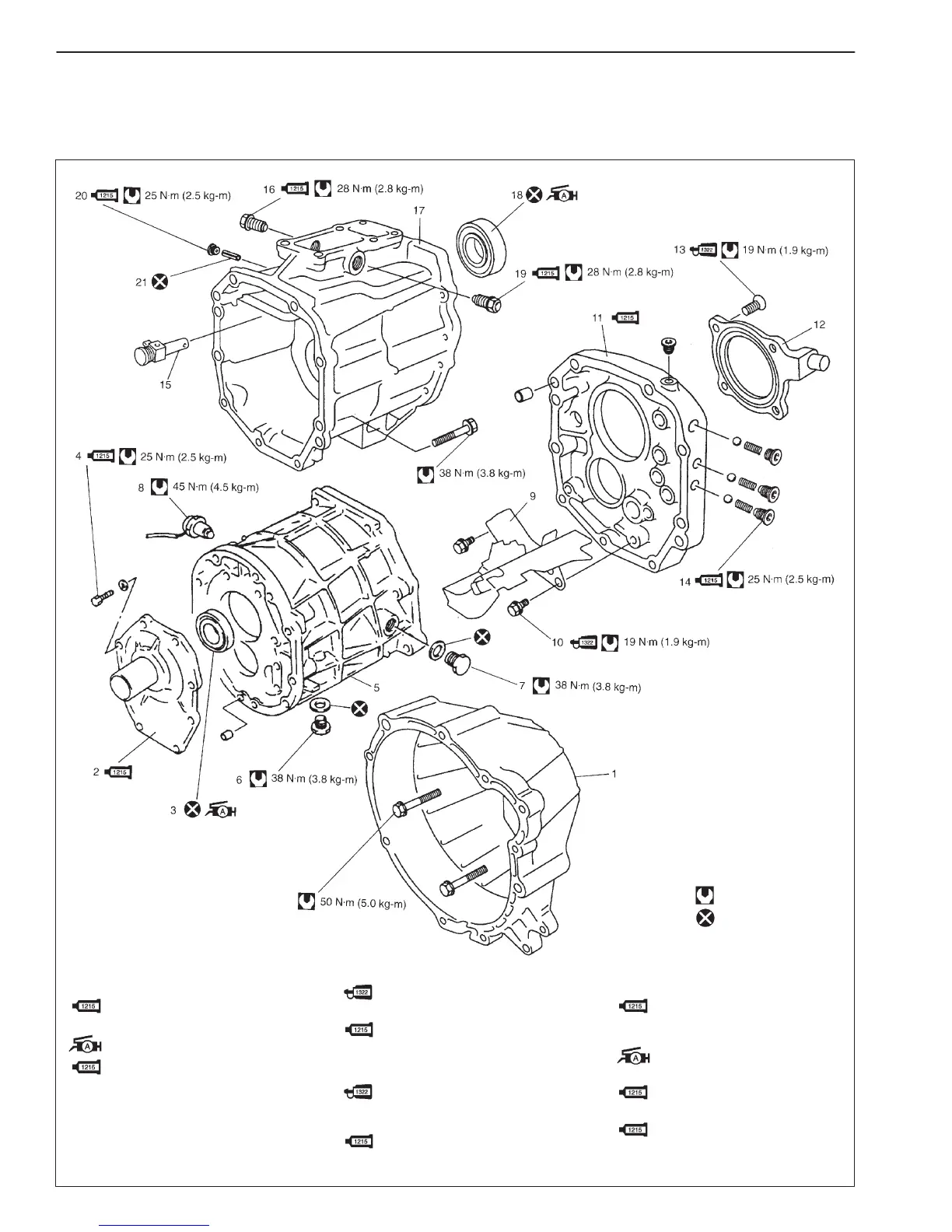

TRANSMISSION CASE COMPONENTS
