1. Vehicle speed sensor
2. ECM
3. Ignition switch
4. “IG METER” fuse (20 A)
5. Main fuse
6. Combination meter
6-1-52 ENGINE DIAGNOSIS (RHZ ENGINE WITH TRIPLE-CONNECTOR ECM)
DTC P0500 (P0500) VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION

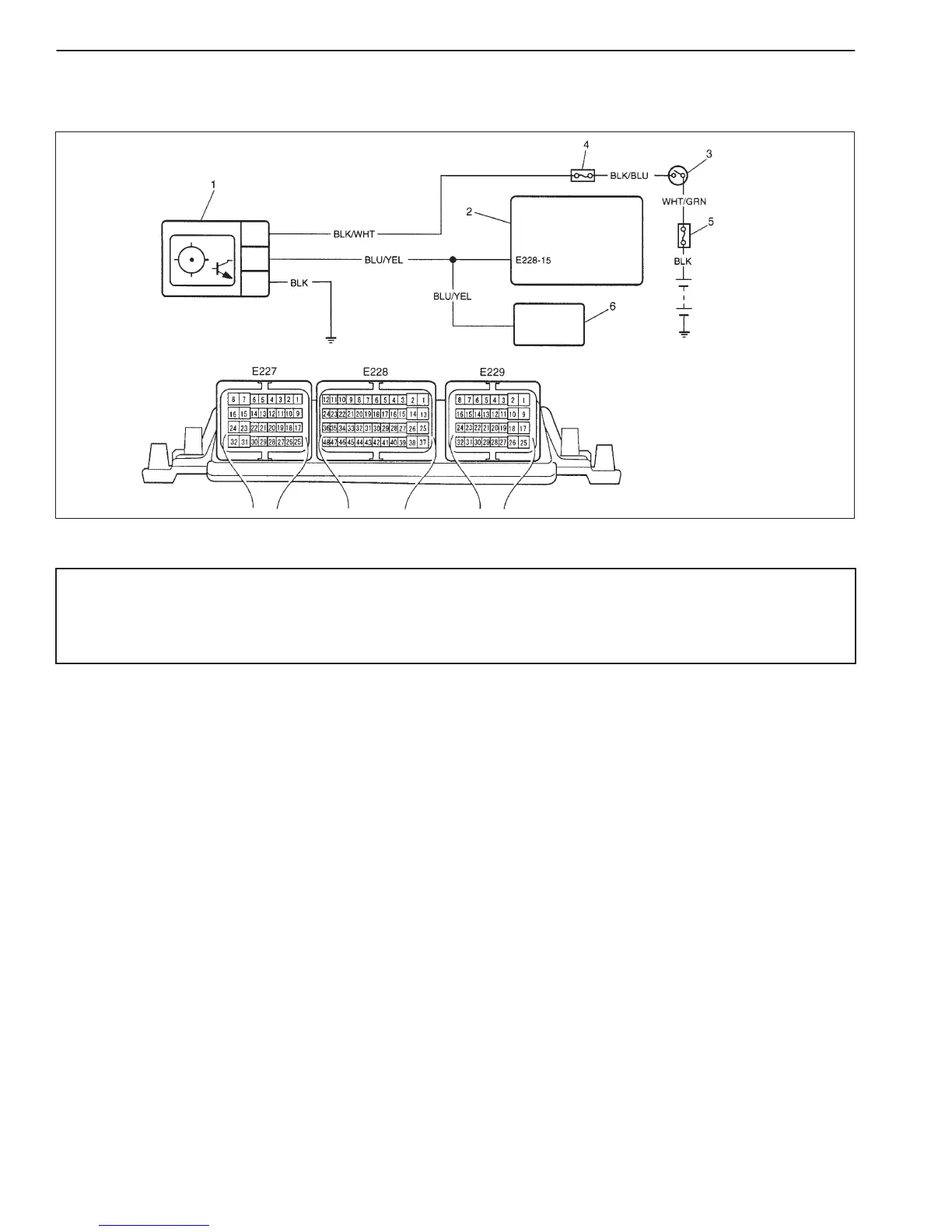

WIRING DIAGRAM
DTC CONFIRMATION PROCEDURE
WARNING:
D When performing a road test, select a place where there is no traffic or possibility of a traffic accident
and be very careful during testing to avoid occurrence of an accident.
D Road test should be carried out with 2 persons, a driver and a tester, on a level road.
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and warm up
engine completely.
3) Increase vehicle speed to 100 – 110 km/h (60 – 70 mph).
4) Release accelerator pedal and with engine brake applied, keep vehicle coasting and then stop vehicle.
5) Check DTC and pending DTC by using scan tool.
To Next Page
