6E3-30 ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE)
INJECTION PUMP
REMOVAL

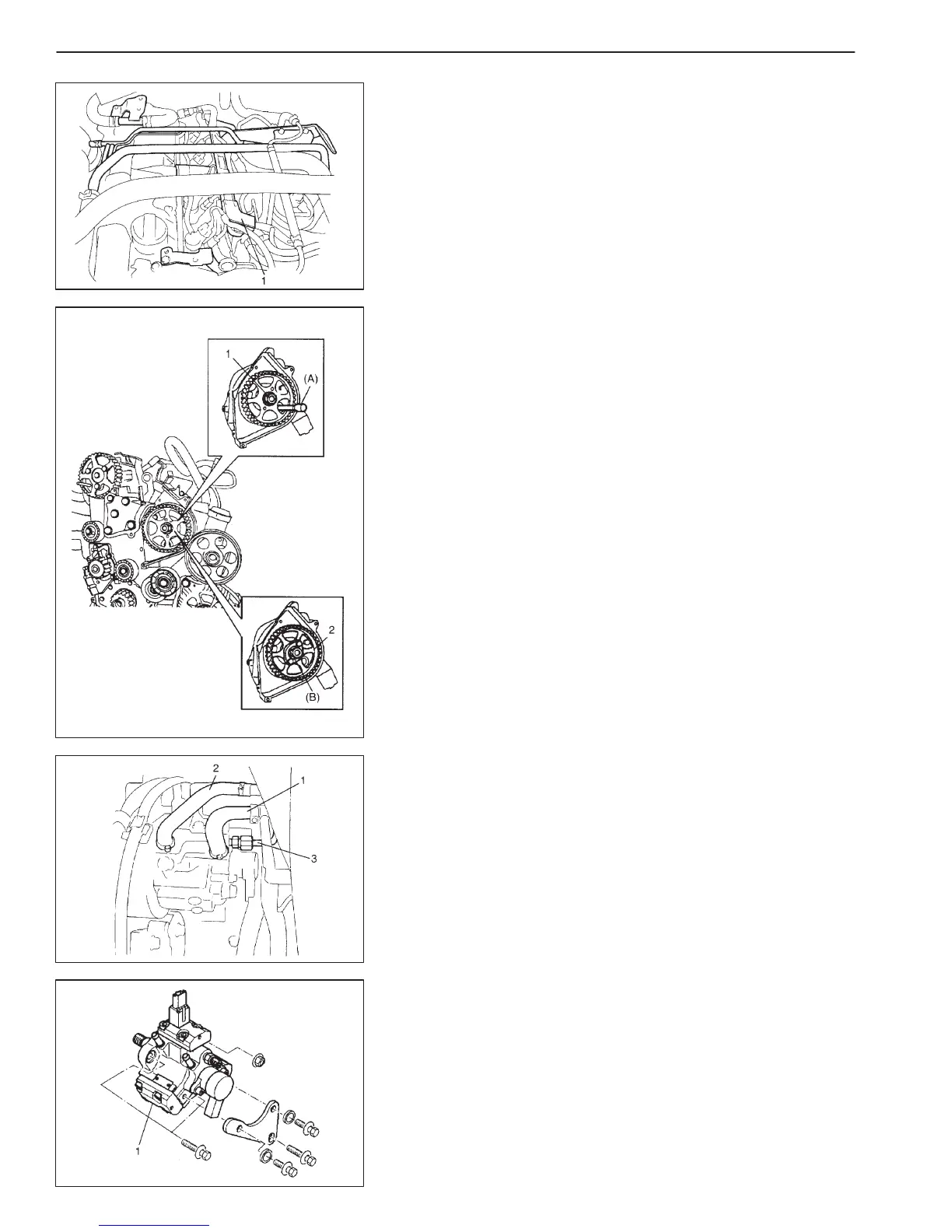

1) Disconnect negative cable at battery.
2) Disconnect each connector and detach wire harness protector
(1).
3) Remove timing belt referring to “TIMING BELT AND BELT TEN-
SIONER” in Section 6A3.
4) Loosen injection pump pulley nut (1) with pulley locked by using
special tool.
Special Tool
(A): 09919-56570/OUT0000157
5) Remove injection pump pulley (2) by using special tool.
Special Tool
(B): 09919-56580/OUT0000158
6) Disconnect inlet fuel hose (2) and return fuel hose (1) from injec-
tion pump.
7) Remove high pressure supply pipe (3) from injection pump.
8) Remove injection pump (1).
To Next Page
