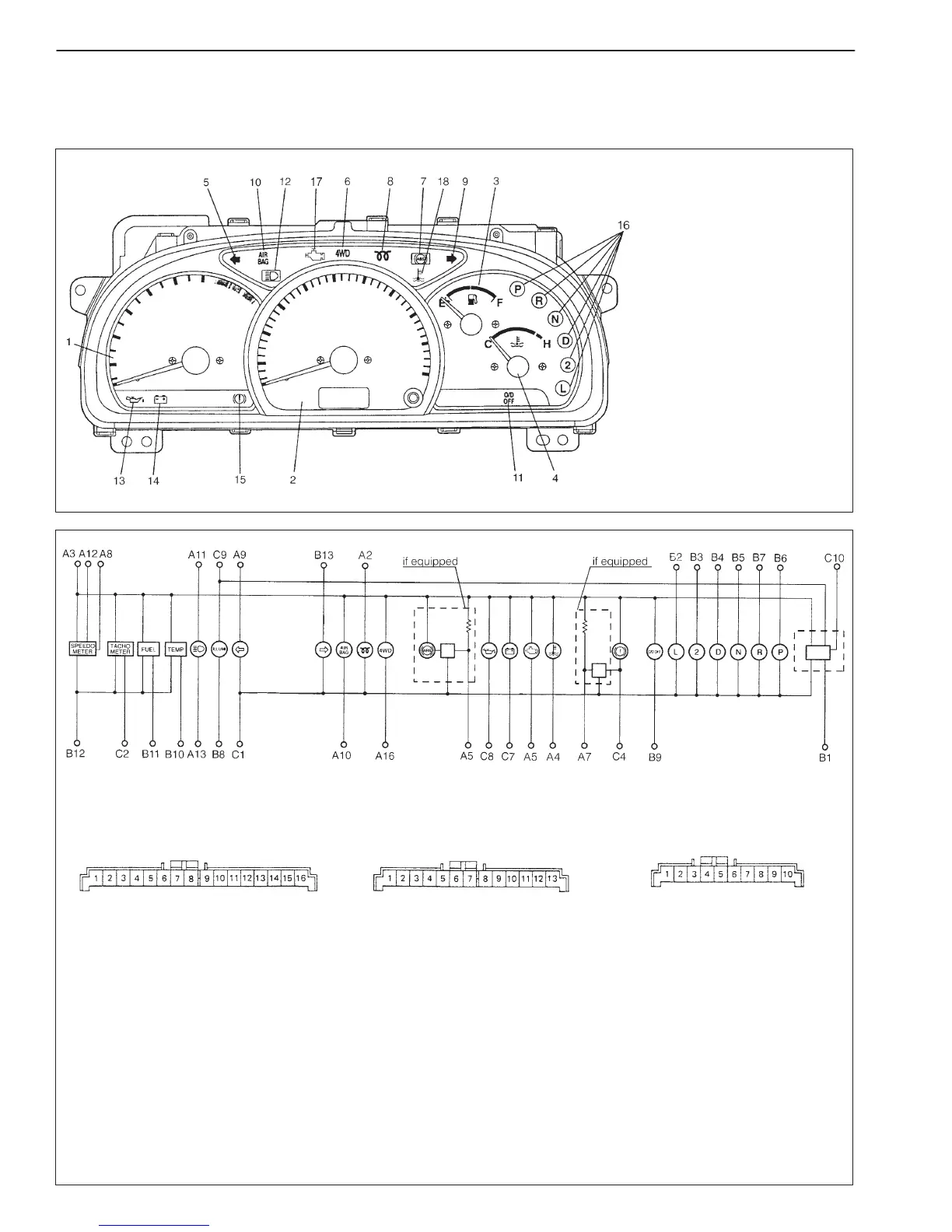

1. Tachometer
2. Speedometer
3. Fuel level meter
4. Engine coolant temperature meter
5. Turn signal pilot light (LH)
6. 4WD indicator
7. ABS warning light (if equipped)
8. Glow light
9. Turn signal pilot light (RH)
10. AIR BAG warning light (if equipped)
11. O / D OFF light (A / T vehicle only)
12. High beam light
13. Oil pressure warning light
14. Charge warning light
15. Brake warning light
16. Shift position indicator
(A / T vehicle, if equipped)
17. MIL
18. Engine coolant temperature
warning light
1. To door switch (driver side) B / Bl
2. To transmission range switch G/ Bl
(A / T vehicle only) L
3. To transmission range switch G/ Or
(A / T vehicle only) 2
4. To transmission range switch Y/ G
(A / T vehicle only) D
5. To transmission range switch Or/ Bl
(A / T vehicle only) N
6. To transmission range switch Or/ G
(A / T vehicle only) P
7. To transmission range switch R
(A / T vehicle only) R
8. To ground B
9. To PCM (A / T vehicle only) W / B
10. To ECT sensor Y / W
11. To fuel level gauge Bl / W
12. To ground B
13. To combination switch G / Y
NOTE:
Terminal arrangement of coupler viewed from harness side.
Coupler A Coupler B Coupler C
Coupler A Coupler B Coupler C
1. Blank ——
2. To ECM (PCM for A / T vehicle) R / B
3. To ignition switch B / W
4. To ECM (PCM for A/T vehicle) Y / W
5. To ABS control module Bl / Or
6. Blank ——
7. To ABS control module Br
8. To VSS Bl / Y
9. To combination switch G / R
10. To SDM Bl
11. To main fuse W / Bl
12. To fuse box W
13. To combination switch R
14. Blank ——
15. To ECM (PCM for A/T vehicle) V / Y
16. To ECM (PCM for A / T vehicle) Or / B
1. To ground B
2. To ECM (PCM for A/T vehicle) Br
3. Blank ——
4. To brake fluid level switch R / B
and parking brake switch
5. Blank ——
6. Blank ——
7. To generator W / R
8. To oil pressure switch Y / B
9. To combination switch R / Y
10. To isnition switch Bl / R
8C-2 INSTRUMENTATION / DRIVER INFORMATION
GENERAL DESCRIPTION
COMBINATION METER
