Suzuki GRAND VITARA XL-7 Service Manual

POWER STEERING (P / S) SYSTEM 3B1-7

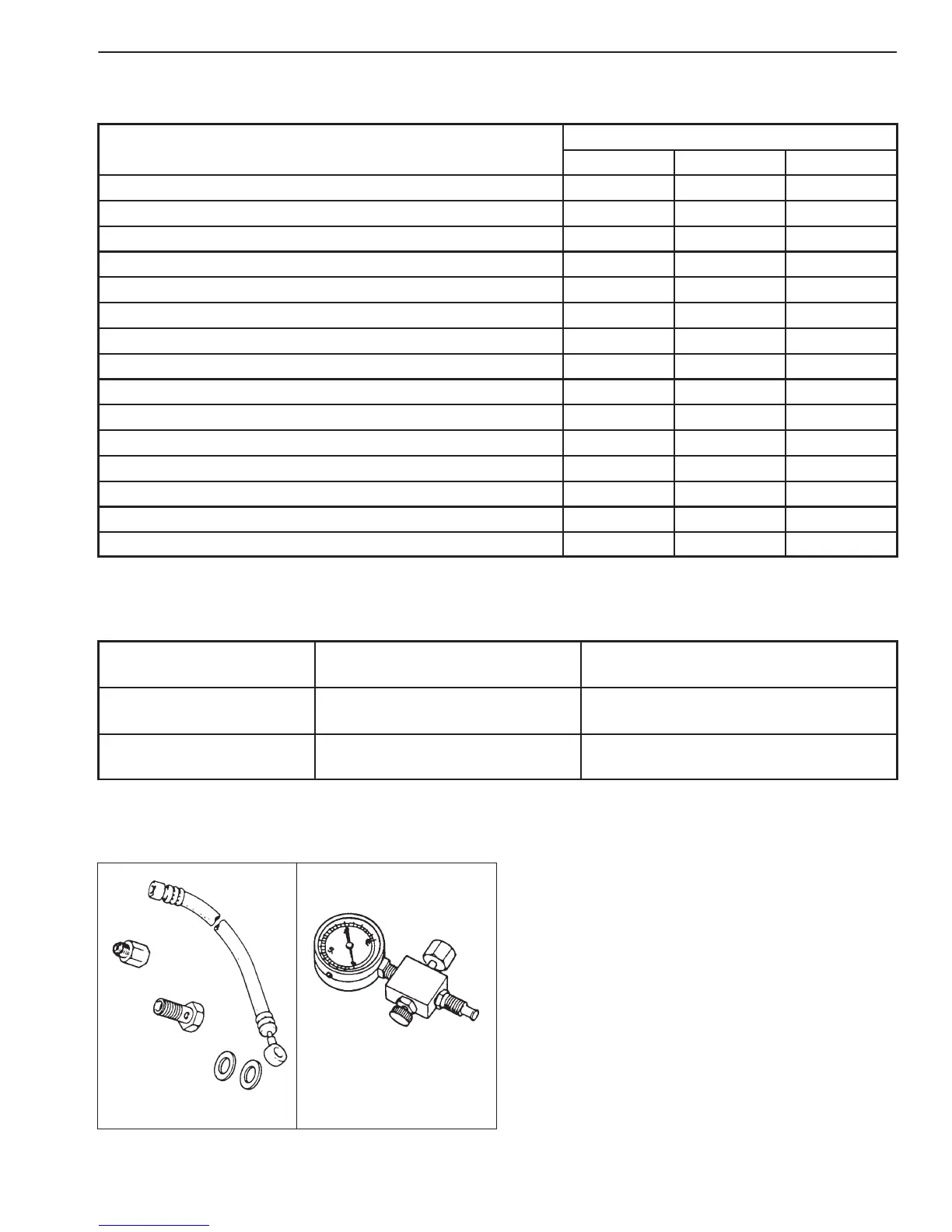

09915-77420
Oil pressure gauge
attachment and hose set
09915-77410
Oil pressure gauge
TIGHTENING TORQUE SPECIFICATIONS
Fastening
p
arts
Tightening torque
Fastening
arts
N
.
m kg-m lb-ft
Gear box mounting bolts 55 5.5 40.0
Gear box cylinder pipe flare nuts 29 2.9 21.0
Gear box low pressure pipe union bolt 40 4.0 29.0
Gear box high pressure pipe union bolt 35 3.5 25.5
Tie-rod end lock nut 65 6.5 47.0
Pump bracket bolt 25 2.5 18.5
Pump union bolt 60 6.0 43.5
Oil pump mount bolts 25 2.5 18.5
Pipe clamp bolt/Reservoir bracket bolt 11 1.1 8.0
Steering shaft joint bolt 25 2.5 18.0
High pressure flare nuts 40 4.0 29.0
Pump cover bolts 23 2.3 17.0
Pump plug 60 6.0 43.5
Suction connector bolt 10 1.0 7.5
Tie-rod end nut 48 4.8 35.0
REQUIRED SERVICE MATERIALS
MATERIALS
RECOMMENDED
SUZUKI PRODUCT
USE
Lithium grease
SUPER GREASE (A)
(99000-25010)
D Oil seal lip of P/S pump pulley shaft
Power steering fluid
An equivalent of DEXRON

-III or
DEXRON

-II
D To fill P/S fluid reservoir
D Parts lubrication when installing
SPECIAL TOOLS
