MANUAL TRANSMISSION 7A2-9

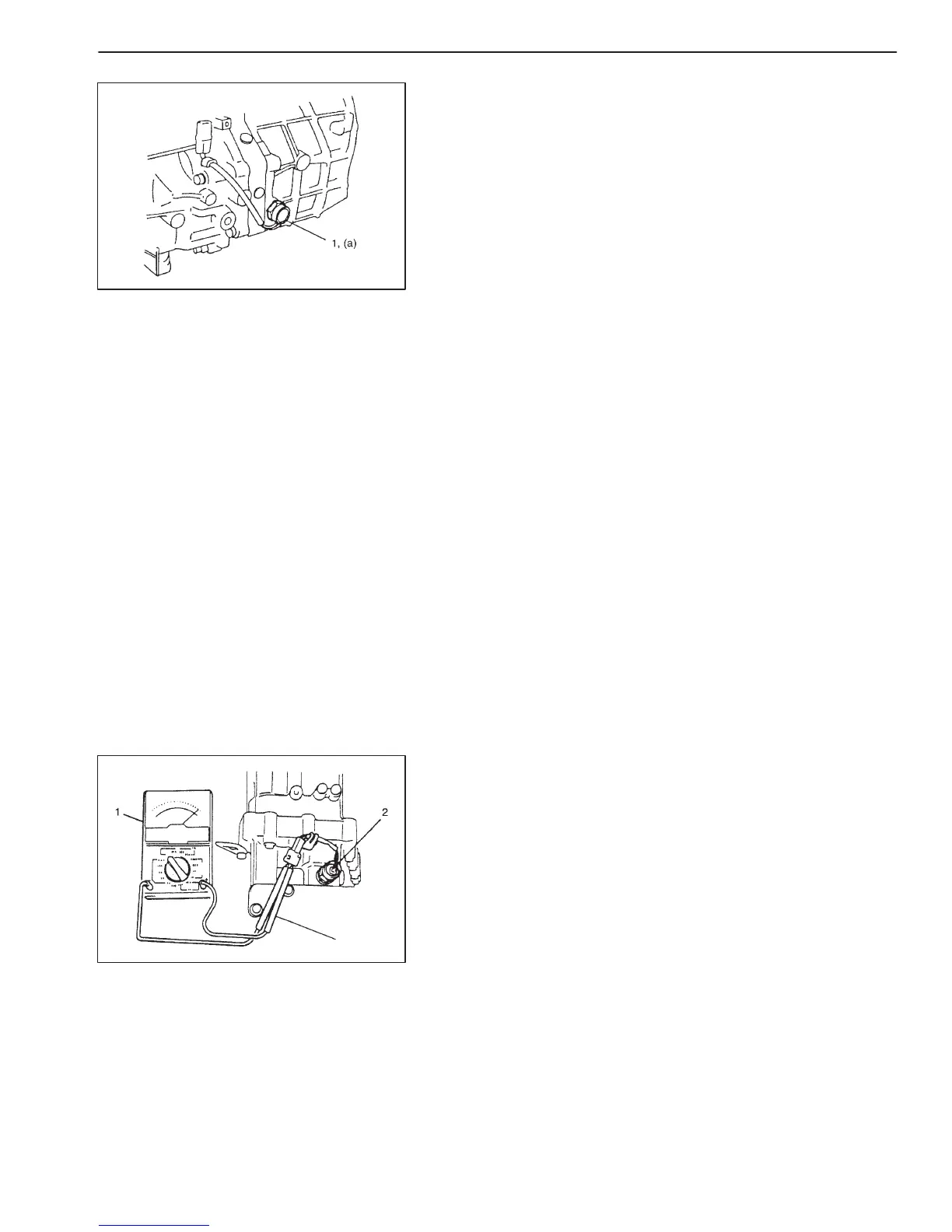

3) Replace back up light switch (1), connect and clamp as they
were.
Tightening torque
Back up light switch (a):
45 N
.
m (4.5 kg-m, 32.5 lb-ft)
4) Check switch for proper function with ignition switch turned ON
and gear shifted to reverse position. Turn OFF switch after
checking its function.
4WD SWITCH AND BACK UP LIGHT SWITCH
INSPECTION
1) Undo clamp and disconnect coupler of back up light switch
and/or 4WD switch.
2) Function of back up light switch (2) can be checked by using
Ohmmeter (1) as shown in the figure.
There should be conduction at these terminals only when shift
lever is shifted to reverse position.
3) Function of transfer 4WD switch (2) can be checked in the same
manner as back up light switch (2).
There should be conduction at these terminals when shift lever
is shifted to 4H, and 4L positions.
4) Upon completion of check, connect coupler and clamp wiring
harness as they were.
NOTE:
When replacing switch(es), use care not to let dust enter
transmission through switch hole(s).
