ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE) 6E3-3
1. Air cleaner
2. MAF sensor
3. Turbocharger
4. Intercooler
5. TP sensor (Accelerator stroke sensor)
6. Intake air pressure sensor
7. Throttle valve actuator
8. Throttle valve assembly
9. CMP sensor
10. Glow plug
11. ECT sensor
12. CKP sensor (Engine speed sensor)
13. Injector
14. Fuel temperature sensor
15. Fuel pressure sensor
16. Vacuum pump
17. EGR throttle solenoid valve
18. EGR solenoid valve
19. EGR valve
20. Boost (Turbo) pressure regulator
solenoid valve
21. Injection pump
22. Fuel pressure regulator
23. Injection pump solenoid valve
(3rd piston deactivator)
24. Fuel filter
25. Fuel pump
26. Fuel tank
27. Fuel feed line
28. Fuel return line
29. Waste gate actuator
30. Catalytic converter
31. Fuel heater
32. To ECM
33. Common rail
(High pressure fuel injection rail)

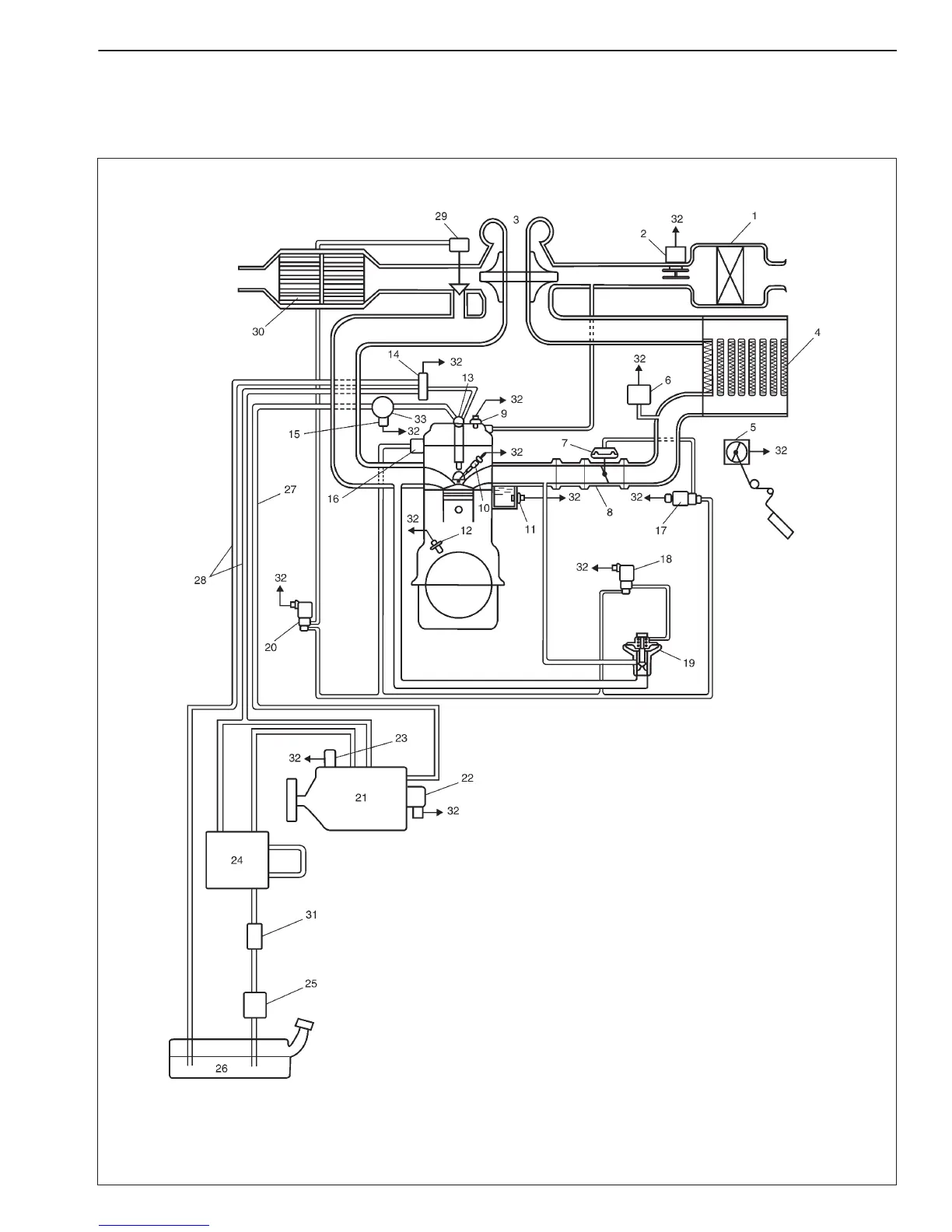

GENERAL DESCRIPTION
SYSTEM DIAGRAM
To Next Page
