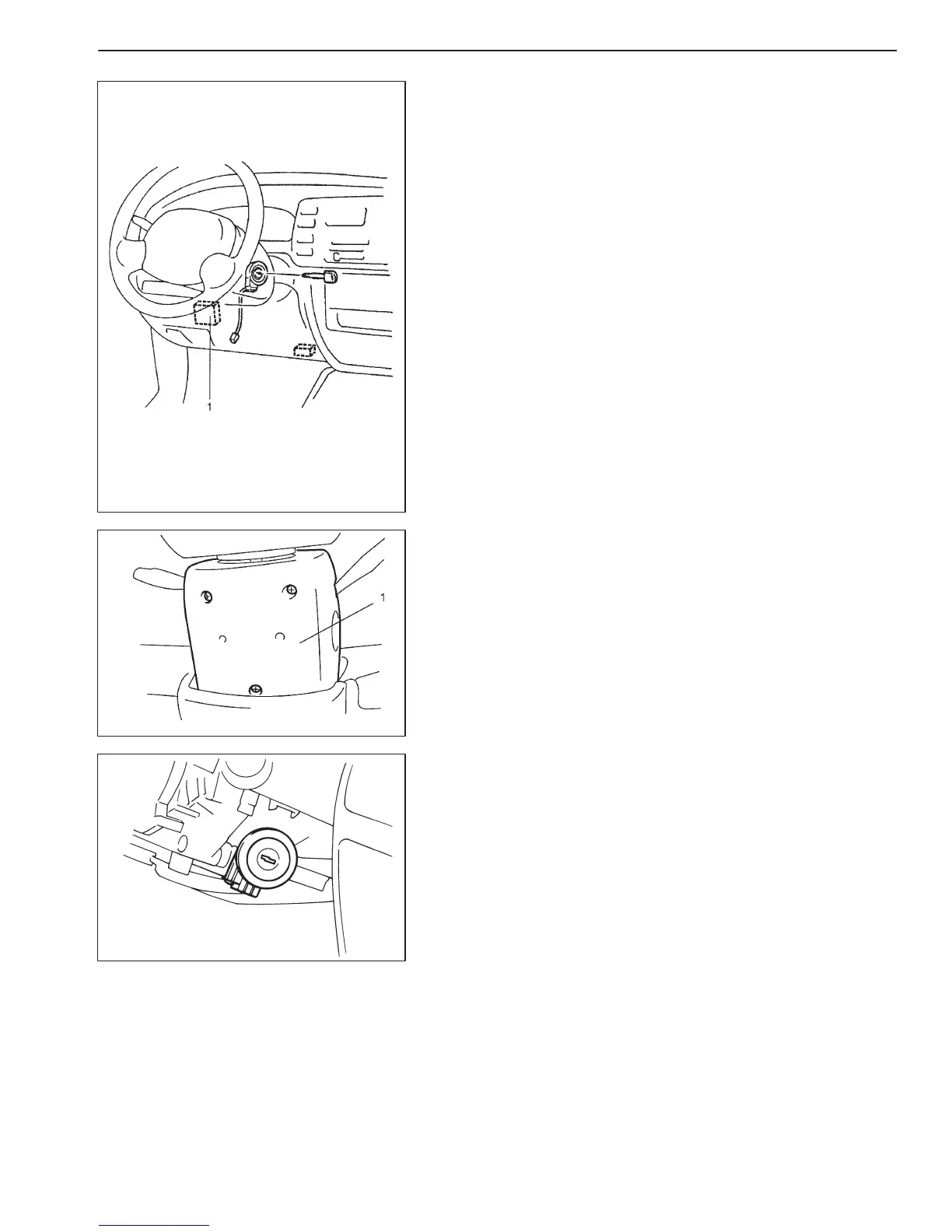

1. Steering column lower cover
1. Coil antenna
1. Immobilizer control module
IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED) 8G-19
IMMOBILIZER CONTROL MODULE
Removal
1) Disconnect negative (–) cable at battery.
2) Remove steering column hole cover.
3) Disconnect couplers.
4) Remove immobilizer control module.
Installation
Reverse removal procedure for installation
NOTE:
After replacing Immobilizer Control Module, be sure to register
Transponder code and ECU code in Immobilizer Control Mod-
ule by performing procedure described in “Procedure after Im-
mobilizer Control Module Replacement”.
COIL ANTENNA
Removal
1) Disconnect negative (–) cable at battery.
2) Remove steering column upper and lower cover by removing 3
screws.
3) Remove steering column hole cover.
4) Remove coil antenna.
Installation
For installation, reverse removal procedure.
