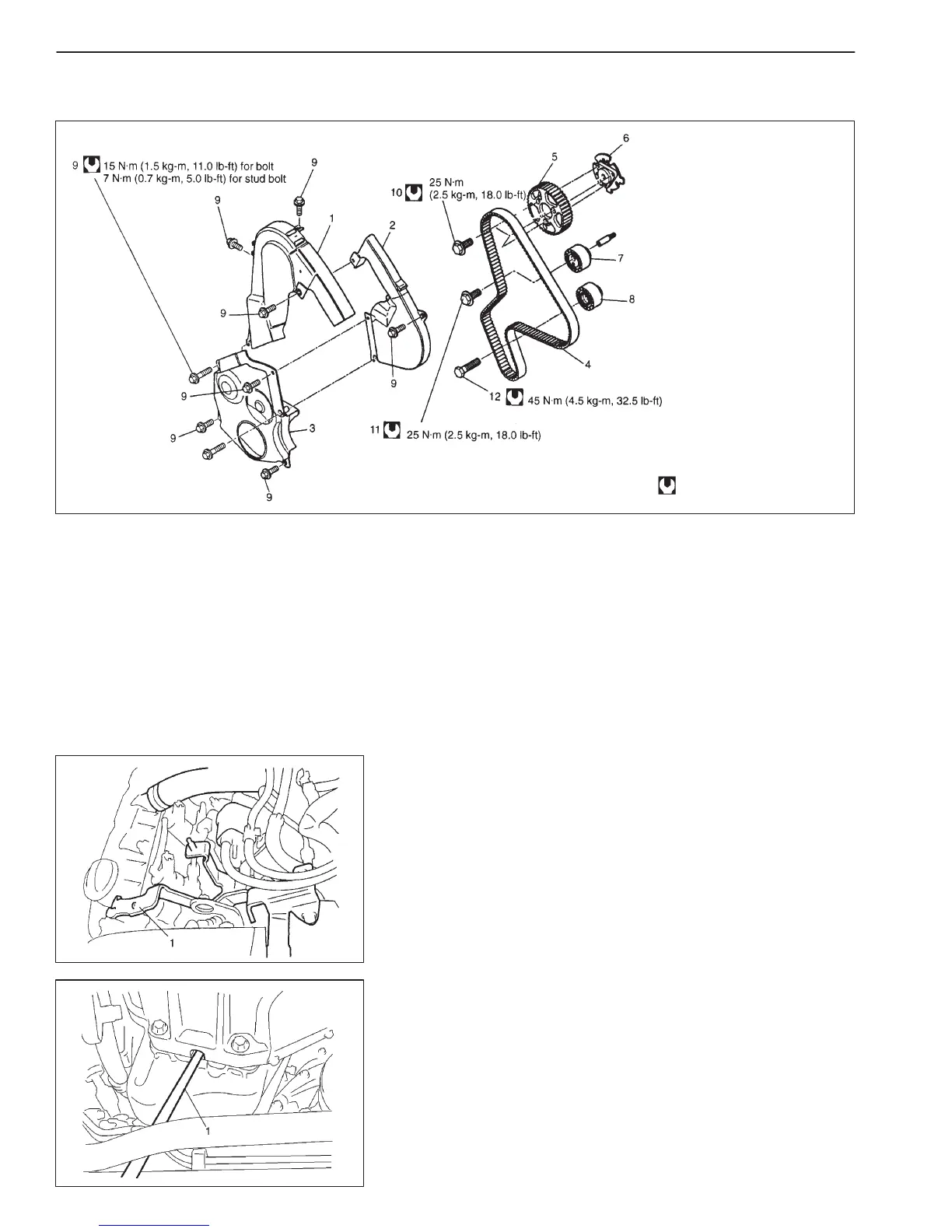

6A3-8 ENGINE MECHANICAL (RHZ ENGINE)
1. Upper timing belt cover
2. Right timing belt cover
3. Lower timing belt cover
4. Timing belt
5. Camshaft timing belt pulley
6. Camshaft hub
7. Timing belt tensioner
8. Roller
9. Timing belt cover bolt
10. Camshaft timing belt pulley bolt
11. Timing belt tensioner bolt
12. Roller bolt
: Tightening Torque
TIMING BELT AND BELT TENSIONER (ENGINE WITH CAMSHAFT HUB)
REMOVAL
1) Disconnect negative cable at battery.
2) Remove A/C compressor belt, if equipped.
3) Remove generator belt referring to “GENERATOR BELT” in
Section 6H.
4) Remove radiator referring to “RADIATOR” in Section 6B.
5) Remove bracket (1).
6) Remove crankshaft pulley bolt with crankshaft locked by using
flat end rod (1) or the like as shown in figure.
To Next Page
