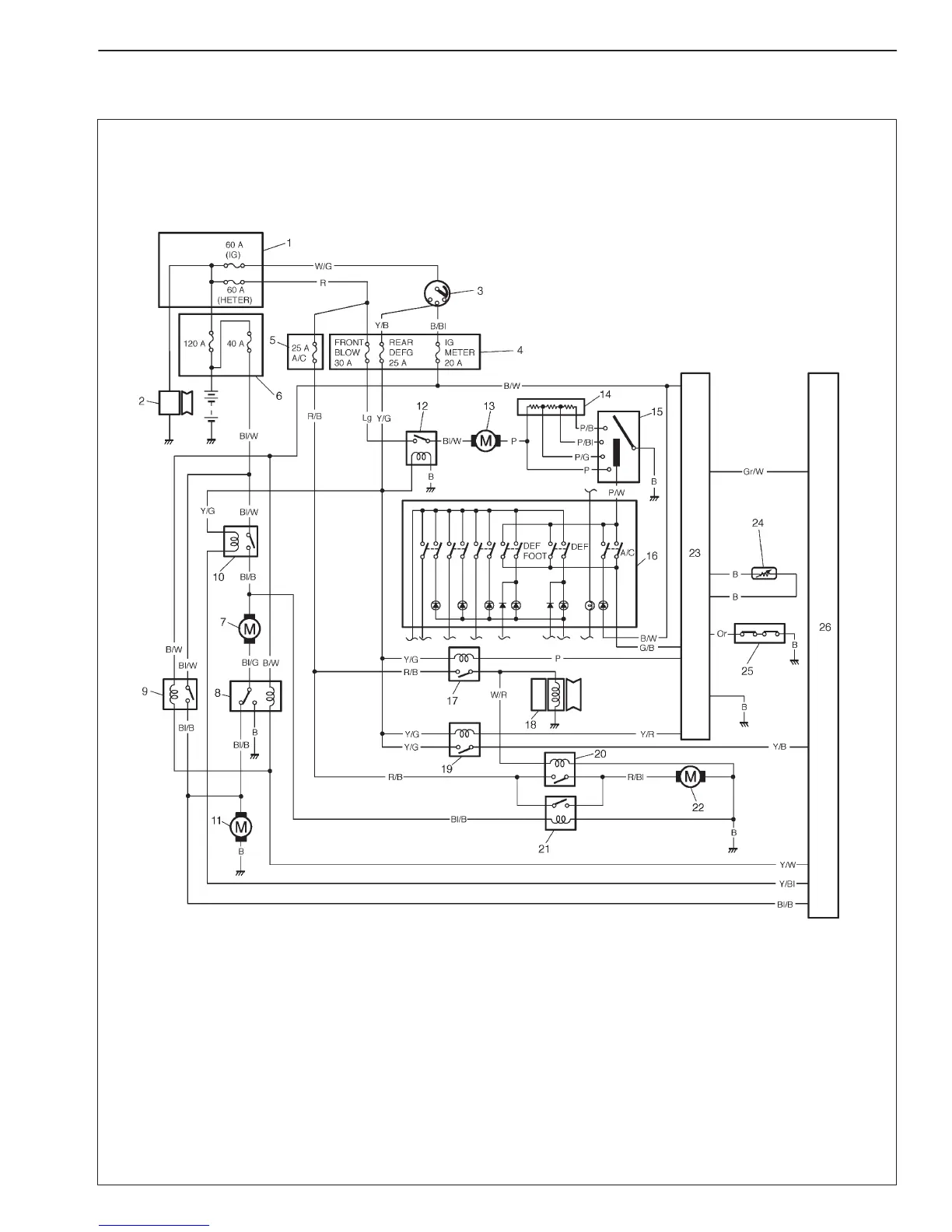

For LH model
1. Main fuse box
2. Generator
3. Ignition switch
4. Circuit fuse box
5. Cassette fuse
(compressor and condenser fan motor fuse)
6. Cassette fuse (radiator fan motor and battery fuses)
7. Radiator fan motor No.1
8. Radiator fan relay 1 (high)
9. Radiator fan relay 2 (high)
10. Radiator fan relay 3 (low)
11. Radiator fan motor No.2
12. Blower motor relay
13. Blower motor
14. Blower motor resistor
15. Blower motor switch
16. A / C switch and mode controller
17. Compressor relay
18. Compressor
19. A / C signal relay
20. Condenser fan motor relay
21. Condenser fan motor control relay
22. Condenser fan motor
23. A / C controller
24. A / C evaporator thermistor
(A / C evaporator temperature sensor)
25. Dual (Refrigerant) pressure sensor
26. ECM
AIR CONDITIONING (OPTIONAL) 1B-5
WIRING CIRCUIT
To Next Page
