ENGINE FUEL 6C-7
3. To supply pump
4. From return pipe
FUEL LEVEL GAUGE
REMOVAL
1) Remove fuel tank. Refer to “FUEL TANK” in this section.

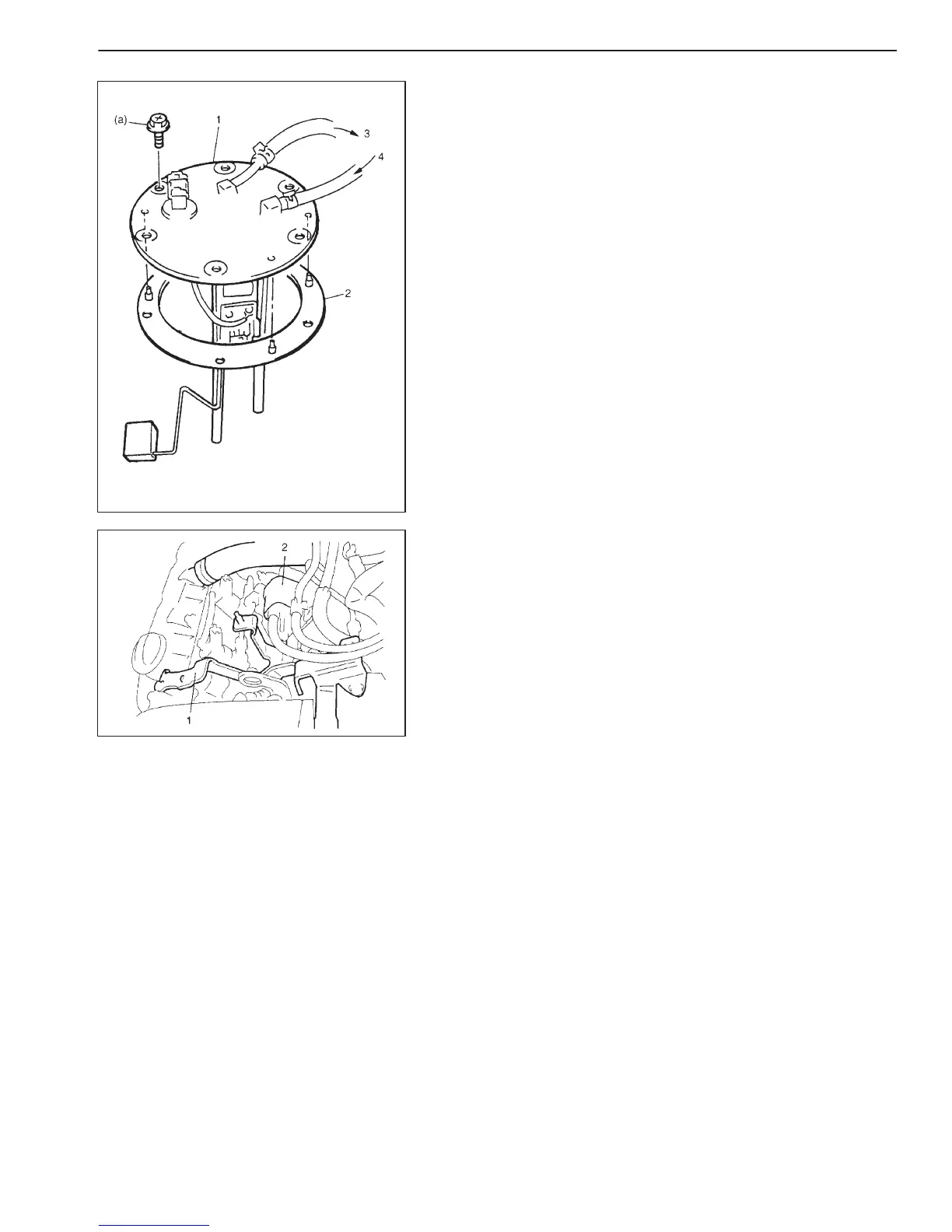

2) Remove fuel level gauge (1) from fuel tank.
INSPECTION
Check fuel level gauge (1) for evidence of dirt and contamination.
If present, clean and check for presence of dirt in fuel tank.
INSTALLATION
Reverse removal procedure for installation noting the followings.
D Use new gasket (2).
D Tighten fuel level gauge bolts to specified torque.
Tightening Torque
Fuel level gauge bolt (a): 5.0 N
.
m (0.5 kg-m, 3.5 lb-ft)
FUEL HEATER
REMOVAL
1) Disconnect negative cable at battery.
2) Disconnect fuel heater connector.
3) Disconnect fuel feed hose and inlet fuel hose from fuel heater.
4) Remove bracket (1) with fuel heater (2).
INSPECTION
Inspect for damage or deformation.
If detective, replace.
INSTALLATION
Reverse removal procedure for installation.
