7B1-62 AUTOMATIC TRANSMISSION (4 A / T)

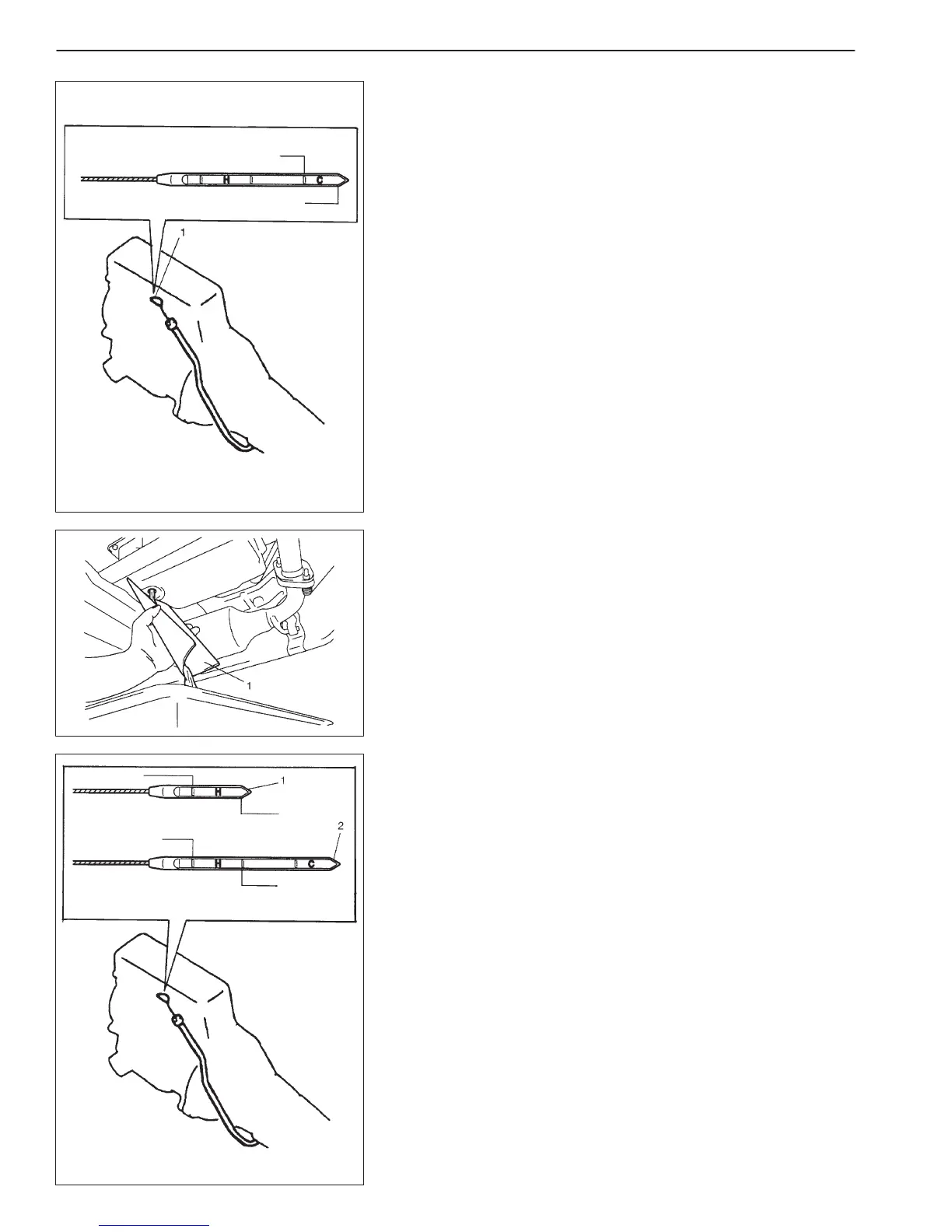

1. Dipstick with COLD level indicator
1. Dipstick without COLD level indicator
2. Dipstick with COLD level indicator
FULL HOT
FULL HOT
LOW HOT
LOW HOT
or
FULL COLD
LOW COLD
LEVEL CHECK AT ROOM TEMPERATURE
[For vehicle with dipstick with COLD level indicator]
The fluid level check at room temperature performed after repair or
fluid change before test driving is just preparation for level check of
normal operating temperature. The checking procedure itself is the
same as that described previously. If the fluid level is between FULL
COLD and LOW COLD, proceed to test drive. And when the fluid
temperature has reached the normal operating temperature, check
fluid level again and adjust it as necessary.
FLUID CHANGE
1) Lift up vehicle.
2) With engine is cool, remove drain plug from oil pan and drain A/T
fluid using oil gutter (1).
3) Install drain plug (1).
Tightening torque
A/T fluid drain plug: 20 N
.
m (2.0 kg-m, 14.5 lb-ft)
4) Lower vehicle and fill proper amount of an equivalent of DEX-
RON
-III.
5) Check fluid level referring to “LEVEL CHECK NORMAL OPER-
ATING TEMPERATURE” of “FLUID LEVEL” in this section.
Fluid specification:
An equivalent of DEXRON
-III
Fluid capacity
When draining from drain plug hole:
2.2 liters (4.65/3.87 US/Imp.pt.)
When overhauling:
7.8 liters (16.48/13.73 US/Imp.pt.)
