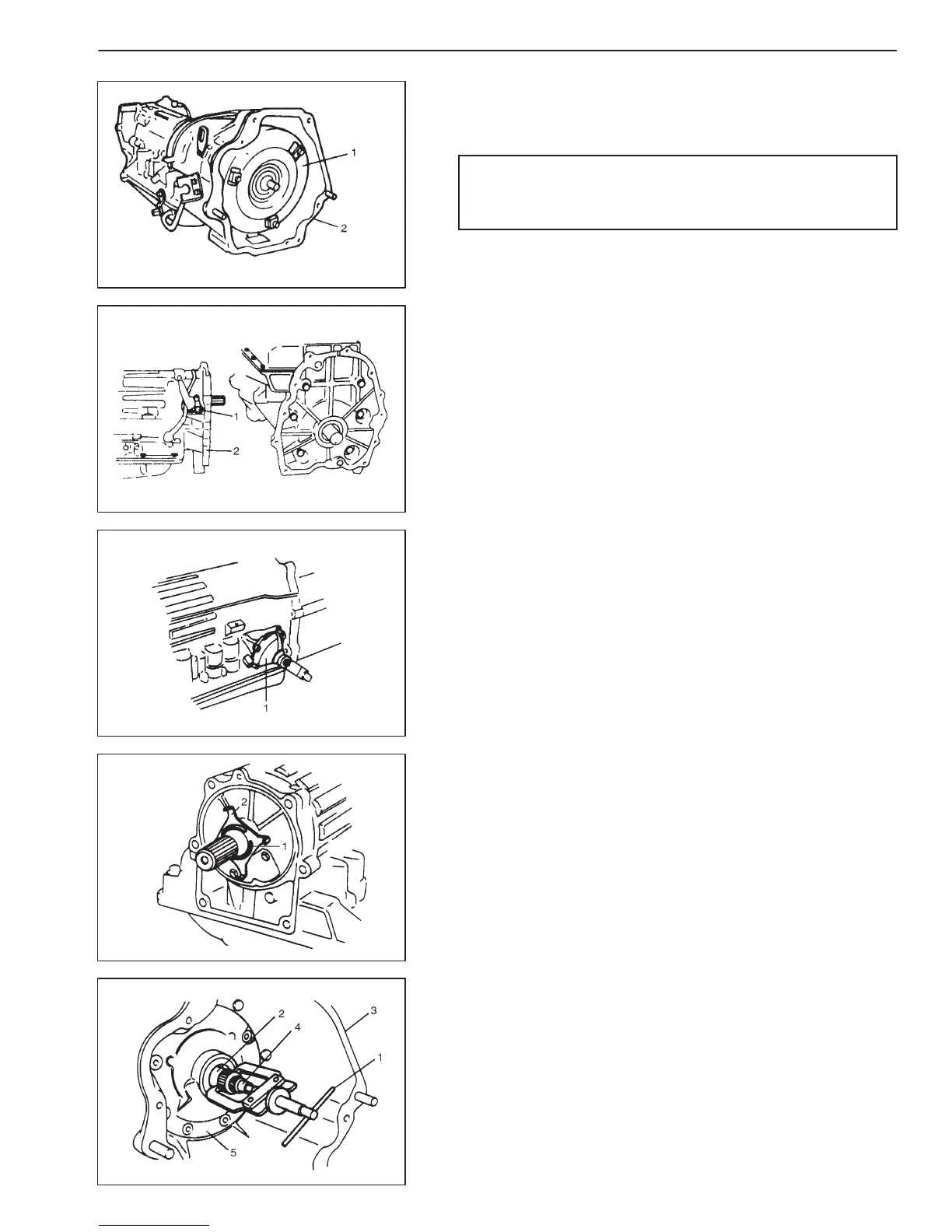

AUTOMATIC TRANSMISSION (4 A / T) 7B1-79
1. Torque converter
2. Converter housing
UNIT DISASSEMBLY
1) Extract torque converter.
CAUTION:
Remove torque converter as much straight as possible.
Leaning it may cause to damage oil seal lip.
2) Remove output shaft speed sensor (1).
3) Remove 6 adapter case fixing bolts and then remove adaptor
case (2).
NOTE:
Use care not to cause damage to oil seal.
4) Remove gasket.
5) Remove transmission range sensor (1).
6) Remove C-ring (1) and then remove speed sensor rotor (2).
NOTE:
Use care not to loose rotor stop key.
7) Remove oil pump (5) by using puller (1).
NOTE:
Use care not to cause damage to shaft bushing surface (2).
8) Remove bearing at the real of oil pump (5).
9) Remove O-ring from oil pump (5).
10) Holding input shaft (4) by hand, remove converter housing (3).
To Next Page
