RECORD ECU
F0: IMMOBI CONT
F1: ECM/INJ PUMP
IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED) 8G-23
09931-76011
Tech 1A kit (SUZUKI scan tool)
See NOTE “A” below.
Immobilizer cartridge of
version 1.4 or more for
Tech 1A
09931-76030
16/14 pin DLC cable
Mass storage cartridge of
version 1.7 or more for
Tech 1A
Tech 2 kit (SUZUKI scan tool)
See NOTE “B” below.
2) Using Suzuki scan tool, register ECU code in ECM by executing
“ECM/PCM” command in RECORD ECU menu.
NOTE:
D Turn on and off the ignition switch according to the
instructions that appear on the screen of Suzuki scan
tool.
D It takes 1 minute (max) until registration of ECU code to
the ECM is completed.
3) Make sure that no DTC is displayed on Suzuki scan tool after
ignition switch is turned OFF for 10 seconds or more and then
ON.

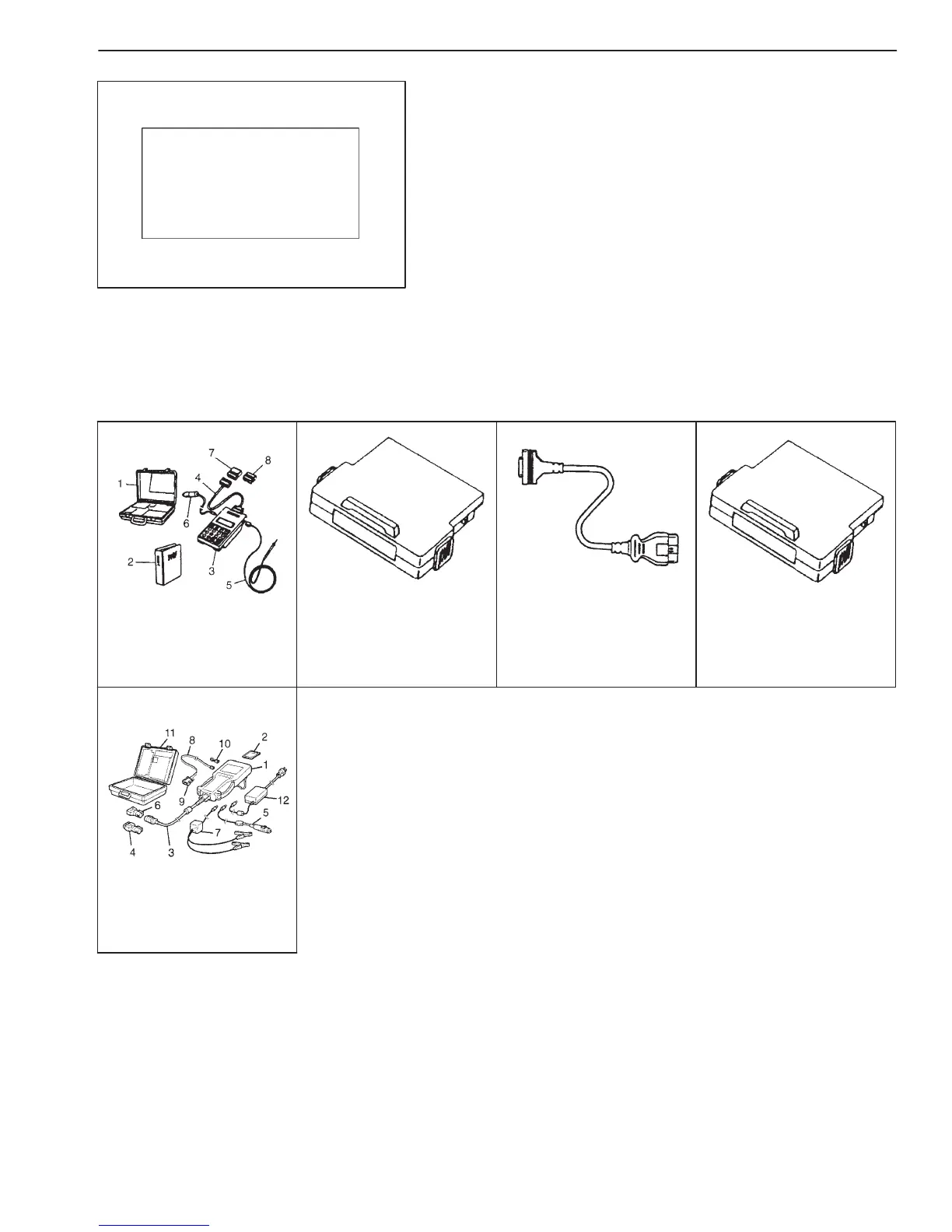

SPECIAL TOOLS
NOTE:
D “A”: This kit includes the following items and substitutes for the Tech 2 kit.
1. Storage case, 2. Operator’s manual, 3. Tech 1A, 4. DLC cable, 5. Test lead/probe, 6. Power source cable,
7. DLC cable adaptor, 8. Self-test adaptor
D “B”: This kit includes the following items and substitutes for the Tech 1 kit.
1. Tech 2, 2. PCMCIA card, 3. DLC cable, 4. SAE16/19 adapter, 5. Cigarette cable, 6. DLC loopback adapter,
7. Battery power cable, 8. RS232 cable, 9. RS232 adapter, 10. RS232 loopback connector, 11. Storage
case, 12. Power supply
