7B1-42 AUTOMATIC TRANSMISSION (4 A / T)
1. TCM
2. Input shaft speed sensor
3. Terminal arrangement of TCM connector
(viewed from harness side)
DTC P0715 (DTC NO.37) INPUT/TURBINE SPEED SENSOR CIRCUIT
MALFUNCTION

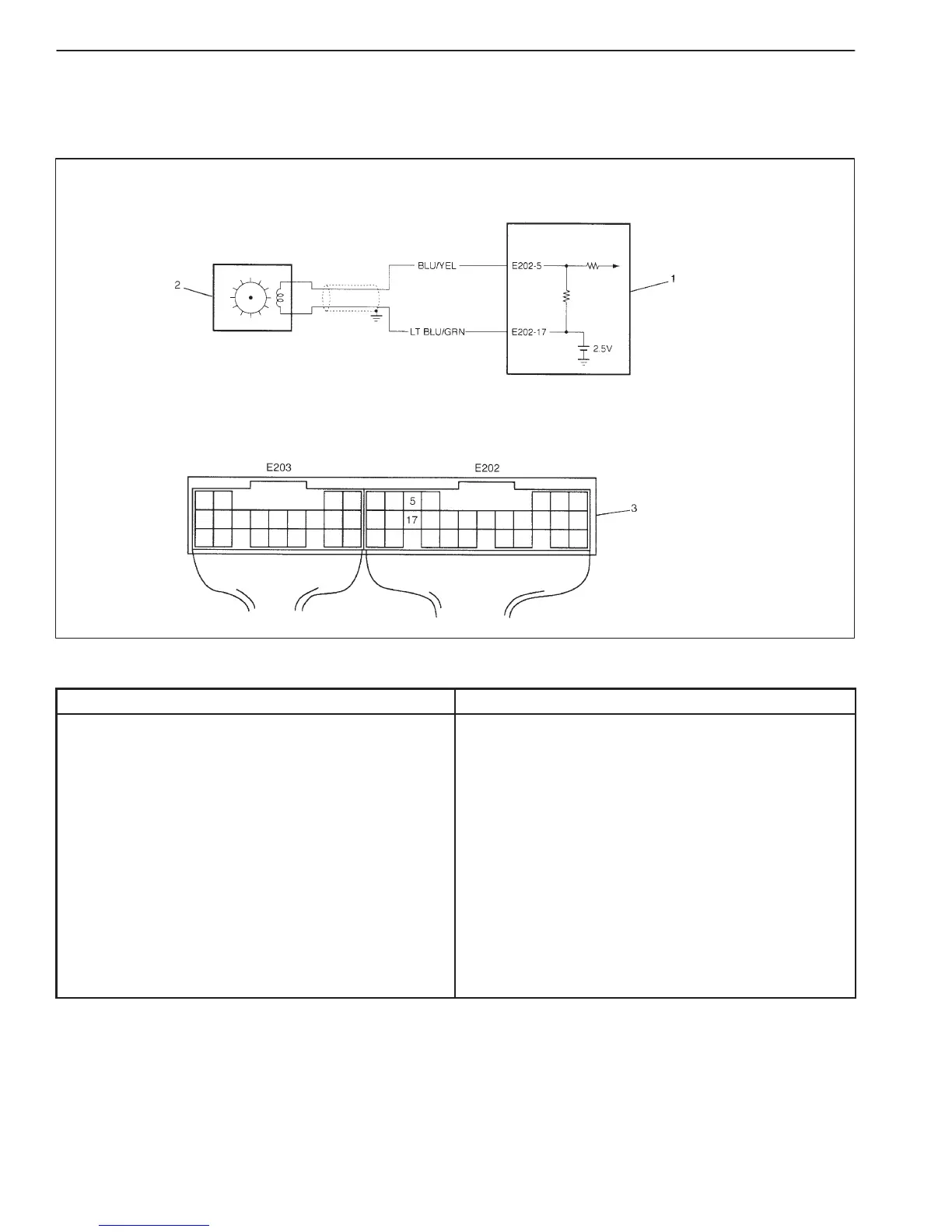

WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC DETECTING CONDITION TROUBLE AREA
The following condition is detected for one minute
continuously in the period between ignition switch ON
and OFF.
D No pulse signal out of input shaft speed sensor is
inputted although 12 pulses out of output shaft
speed sensor are inputted.
and
D Transmission range sensor signal is detected as “D”,
“2” or “L” range.
and
D Gear position is not 4th.
and
D Output shaft revolution is more than 775 rpm.
Input shaft speed sensor and its circuit
TCM
To Next Page
