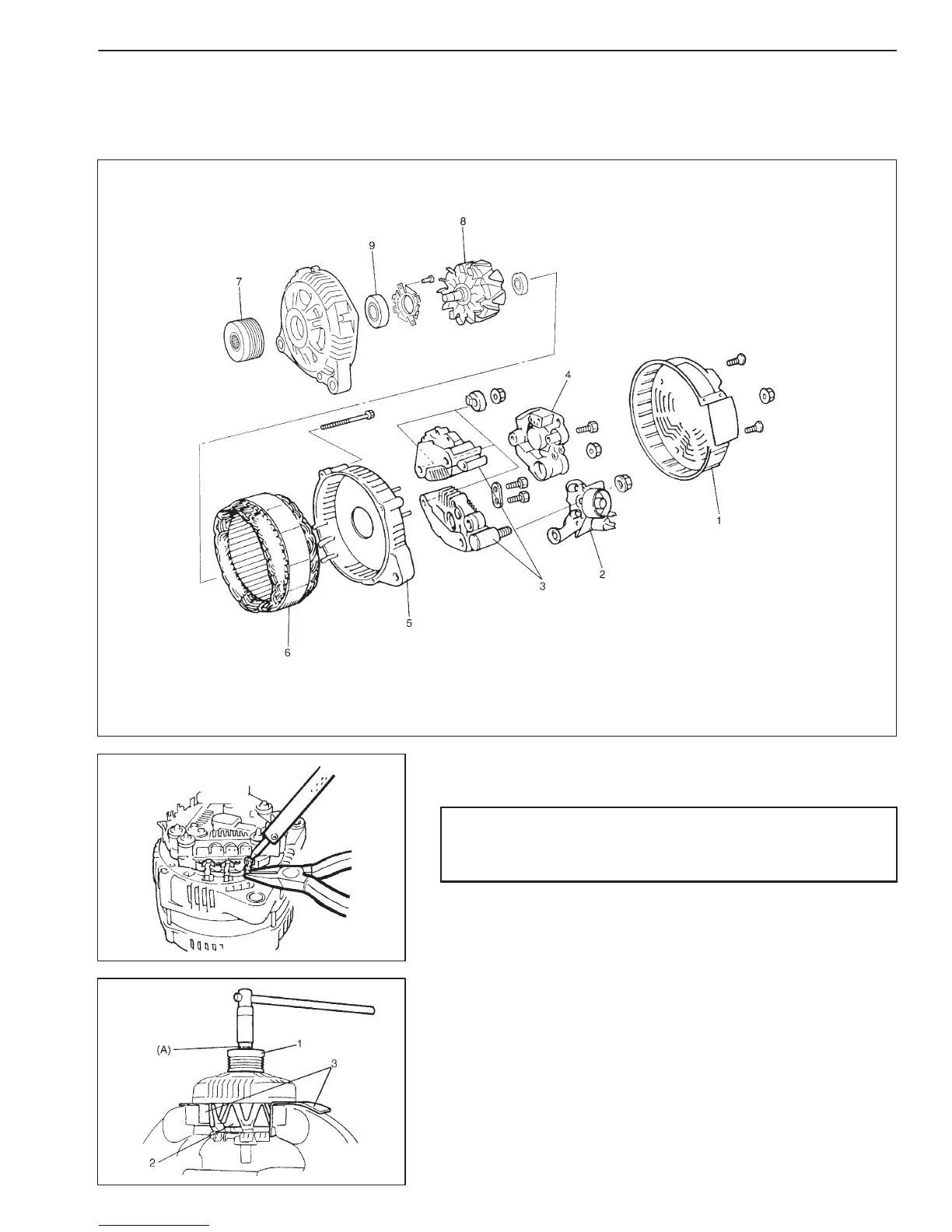

CHARGING SYSTEM 6H-5
1. Rear cover
2. D+ contact with capacitor
3. Rectifier
4. Regulator
5. Cover
6. Stator
7. Pulley
8. Rotor
9. Front bearing
1. Pulley
2. Rotor
3. Soft jawed vise
DISASSEMBLY AND REASSEMBLY
D Disassemble in numerical order shown in figure below and note the following.
D For reassembly, reverse disassembly procedure.
D When removing stator lead wire from rectifier, carry out soldering
quickly.
CAUTION:
Overheating can damage semiconductor components
such as regulator and rectifier.
NOTE:
Hold lead wire with pliers during soldering to prevent apply-
ing heat to rectifier.
D Hold rotor with soft jawed vise and remove pulley by using special
tool.
Special tool
(A): 09932-96510
