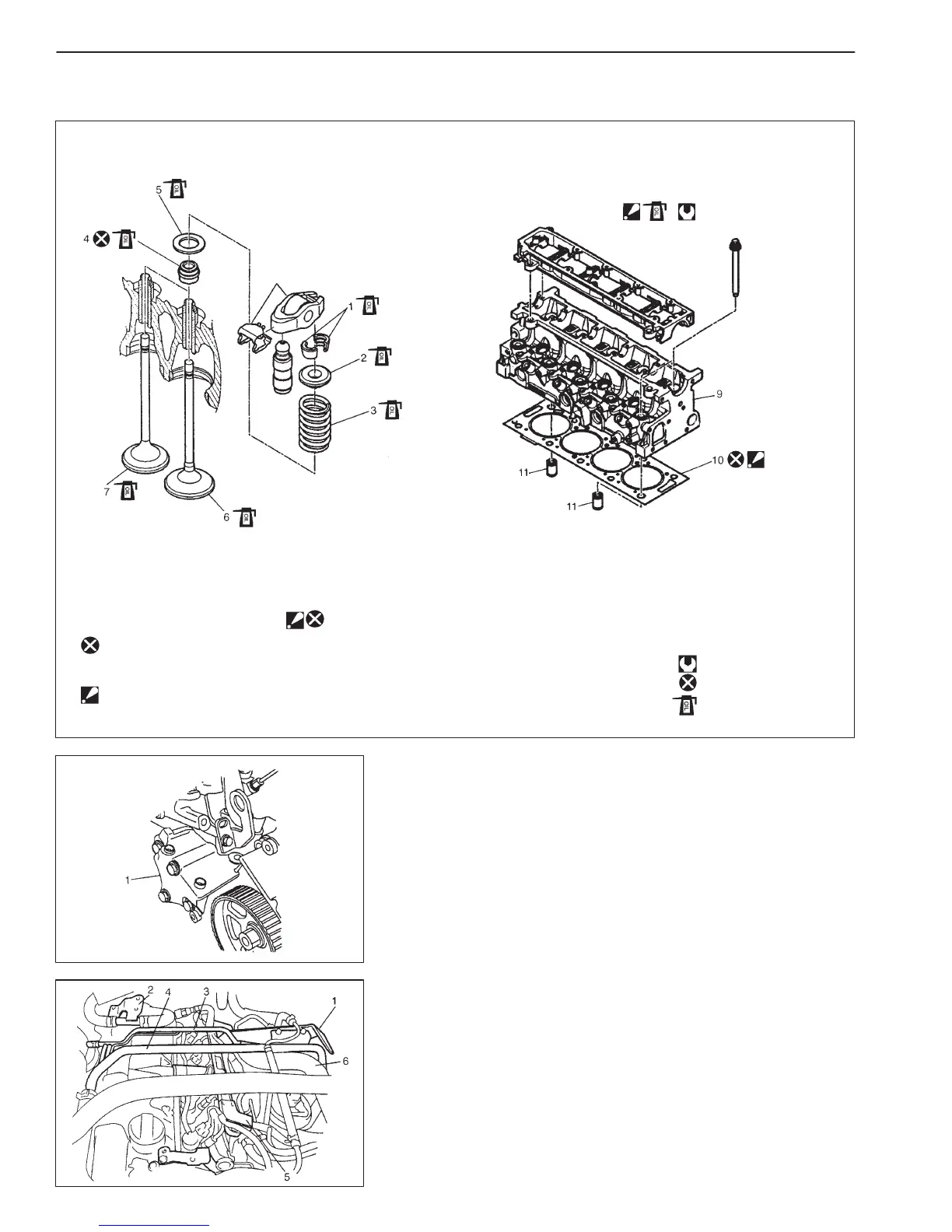

6A3-32 ENGINE MECHANICAL (RHZ ENGINE)
1. Valve cotters
2. Valve spring retainer
3. Valve spring
4. Valve stem seal
5. Valve spring seat
6. Intake valve
7. Exhaust valve
8. Cylinder head bolt:
Replace bolt if it is longer
than specified valve.
9. Cylinder head
10. Cylinder head gasket:
“Thickness Identification”
mark provided on gasket should
come to high pressure fuel
pump side.
11. Knock pin
: Tightening Torque
: Do not reuse
: Apply engine oil to sliding
: surface of each part.
60 N
.
m (6.0 kg-m, 43.5 lb-ft)
and retighten 220_
8
VALVES AND CYLINDER HEAD
REMOVAL
1) Disconnect negative cable at battery.
2) Remove timing belt referring to “TIMING BELT AND BELT TEN-
SIONER” in this section.
3) Remove engine bracket (1) from cylinder head and cylinder
block.
4) Remove intercooler bracket (1), radiator inlet hose (6), heater in-
let pipe (2), vacuum pipe (3) and heater outlet pipe (4) with
hoses.
5) Disconnect each connector and detach wire harness protector
(5).
To Next Page
