Suzuki GRAND VITARA XL-7 Service Manual

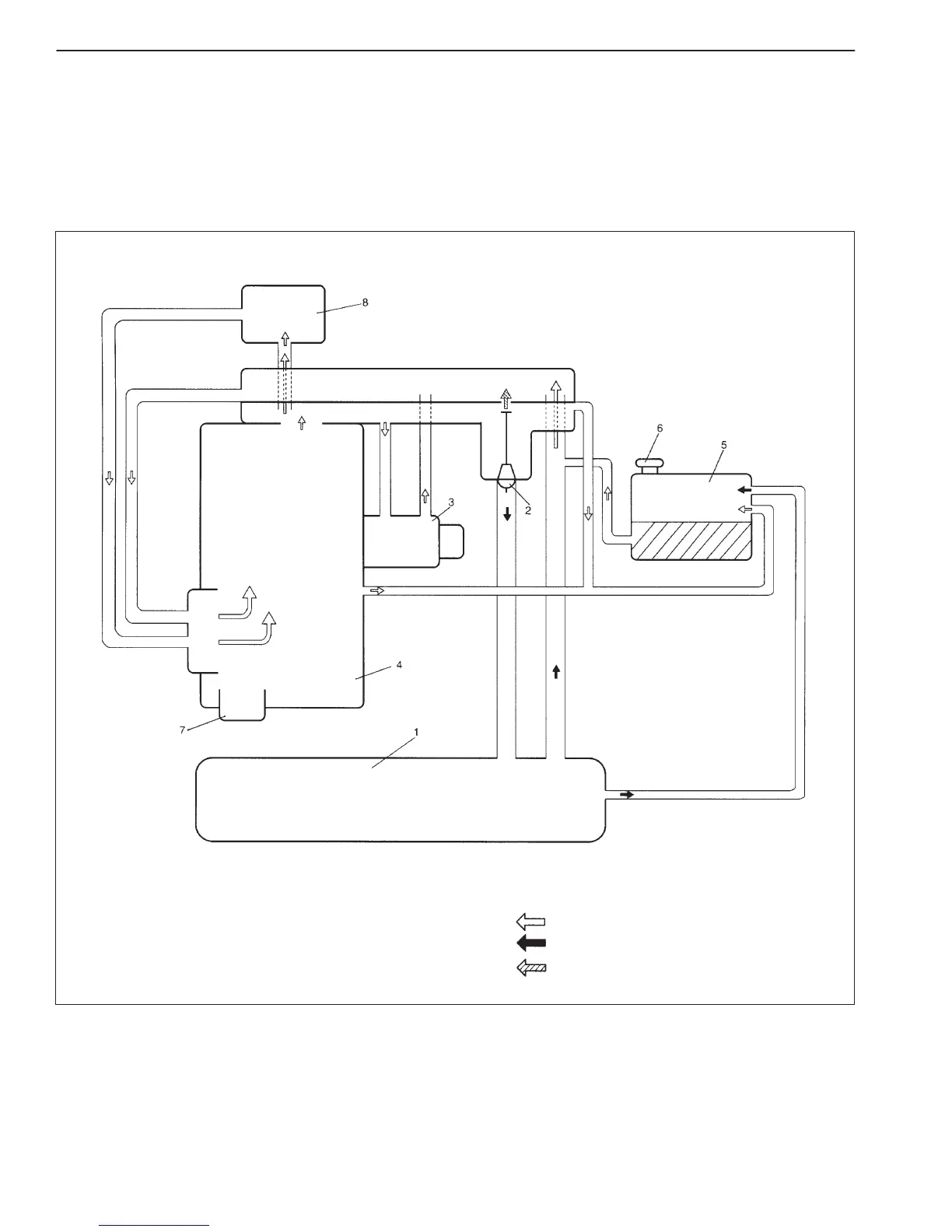

: When thermostat is open and close
: When thermostat is open
: When thermostat is close
1. Radiator
2. Thermostat
3. Engine oil cooler
4. Engine
5. Degassing tank
6. Degassing tank cap (Radiator cap)
7. Water pump
8. Heater
6B-2 ENGINE COOLING
GENERAL DESCRIPTION
The cooling system consists of the degassing tank cap, radiator, degassing tank, hoses, water pump, cooling fan,
thermostat. The radiator is of tube-and-fin type.
COOLING SYSTEM CIRCULATION
