1B-14 AIR CONDITIONING (OPTIONAL)
INSTALLATION
1) Pour new compressor oil. The amount must be the same with
the amount measured in “REMOVAL”.
NOTE:
Compressor supplied from factory is filled up with the fol-
lowing amount of oil.
Amount of oil in compressor: 120 cm
3
(120 cc)

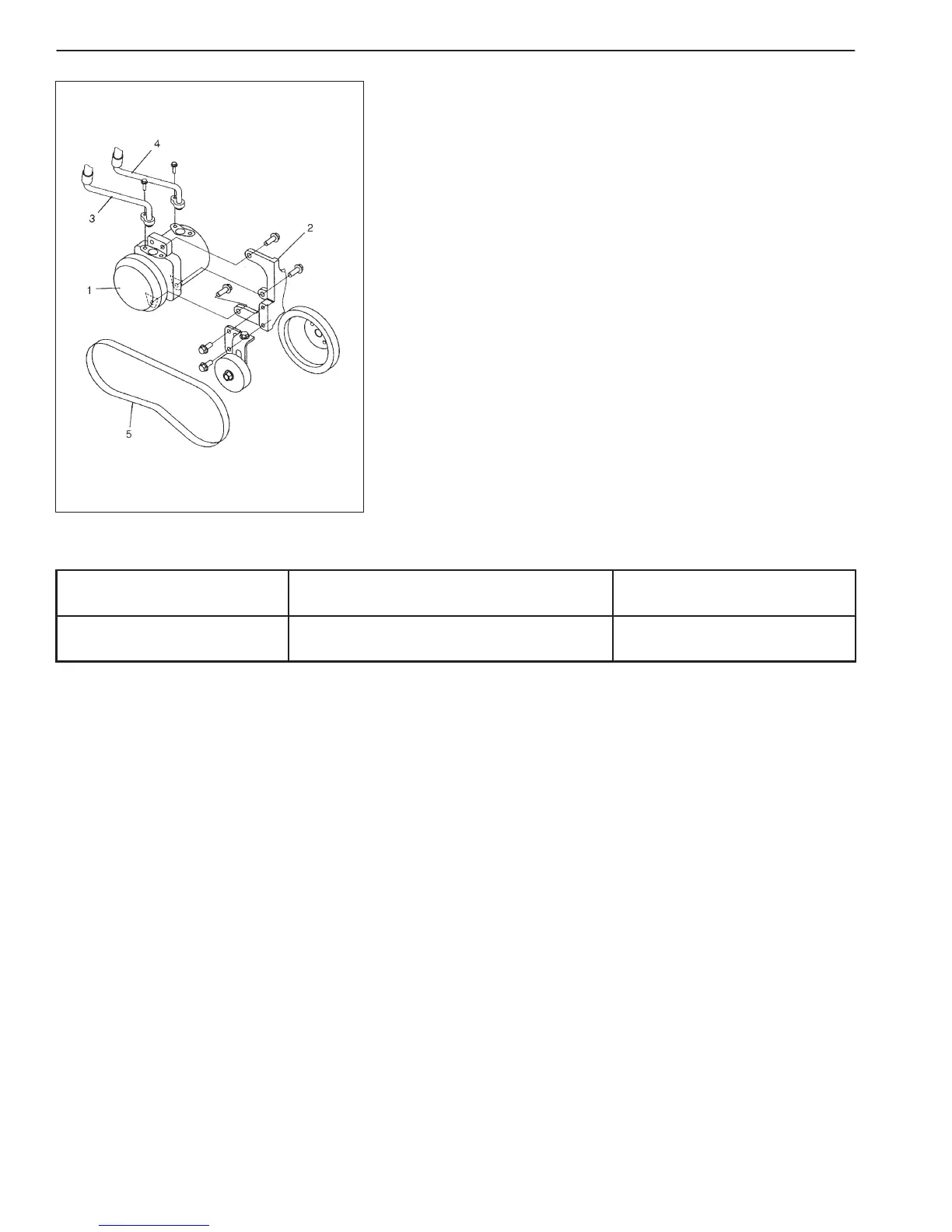

2) Install compressor (1) to engine bracket (2).
3) Connect suction hose (3) and discharge hose (4) to compressor
(1).
4) Install compressor drive belt (5) referring to “DRIVE BELT” in this
section.
5) Connect thermal protector lead wire.
6) Install air cleaner outlet hose.
7) Perform evacuation and charging referring to “REFRIGERANT
RECOVERY, EVACUATION AND CHARGING” in this section.
REQUIRED SERVICE MATERIAL
MATERIAL
RECOMMENDED
SUZUKI PRODUCT
USE
Compressor oil
COMPRESSOR OIL RS20 (150 cc)
99000-99088-00D0
D O-ring
D Each component
To Next Page
