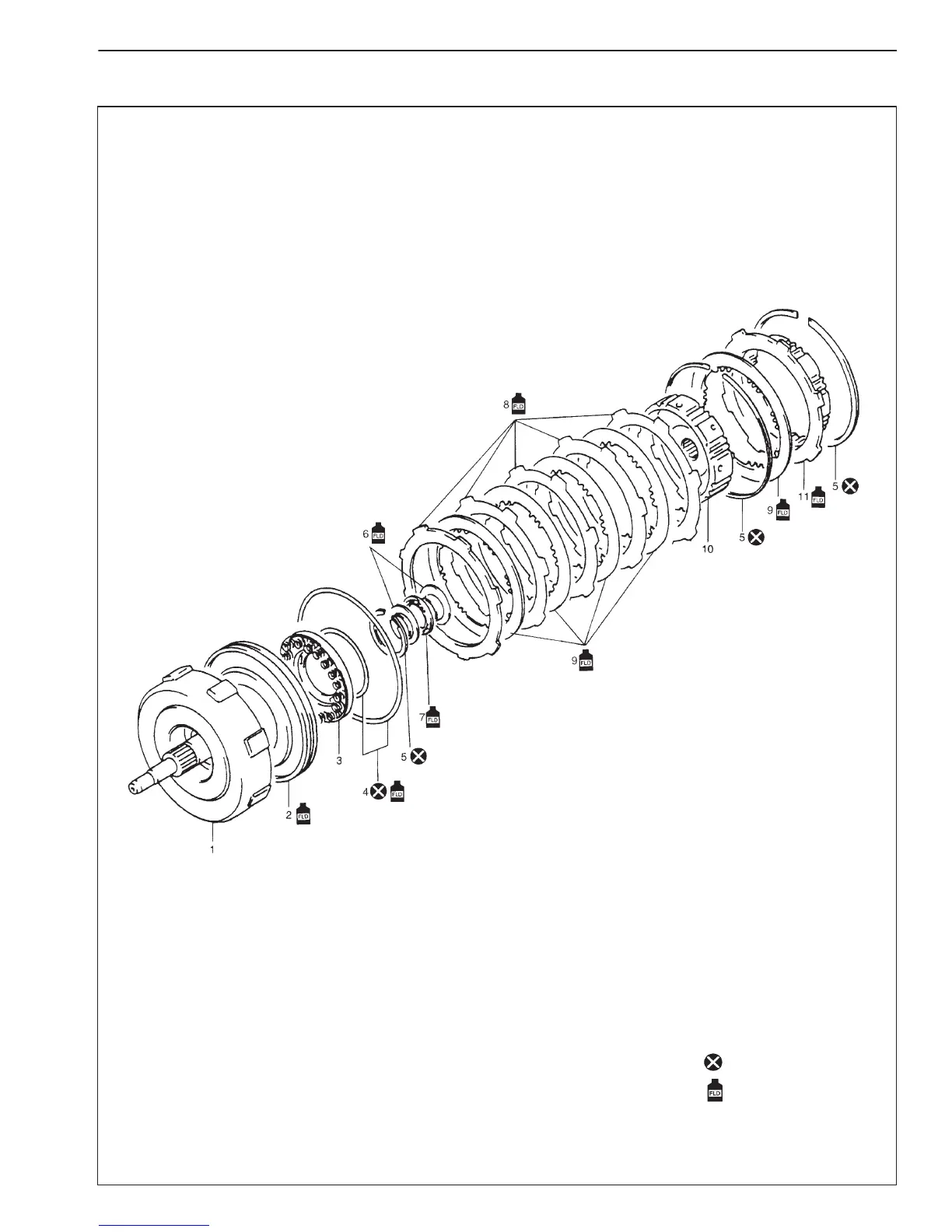

AUTOMATIC TRANSMISSION (4 A / T) 7B1-87
1. Input shaft
2. Piston
3. Return spring
4. O-ring
5. Retaining ring
6. Bearing race
7. Bearing
8. Clutch plate
9. Clutch disc
10. Froward clutch hub
11. Direct clutch input hub
: Do not reuse.
: Apply automatic
transmission fluid.
FORWARD CLUTCH
